DTC P0264: Cylinder 2 - Injector Circuit Low Input: DTC Detecting Condition

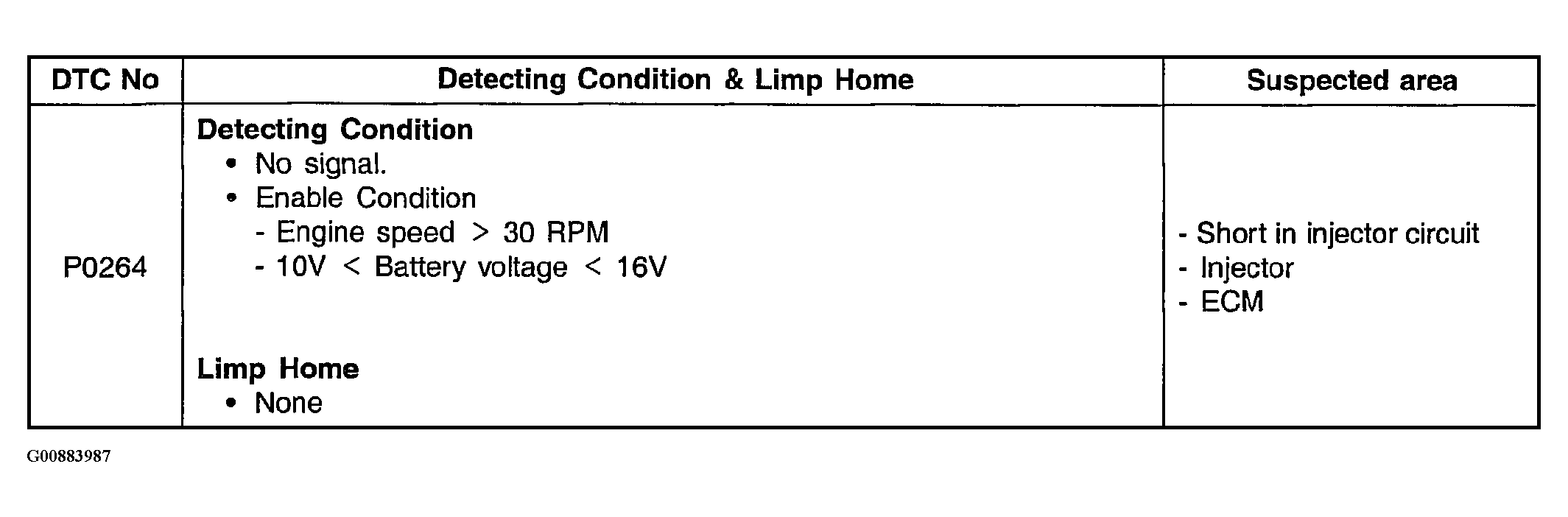

Fig 1: DTC Detecting Condition
G00883987Courtesy of HYUNDAI MOTOR CO.
