TCS Block Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

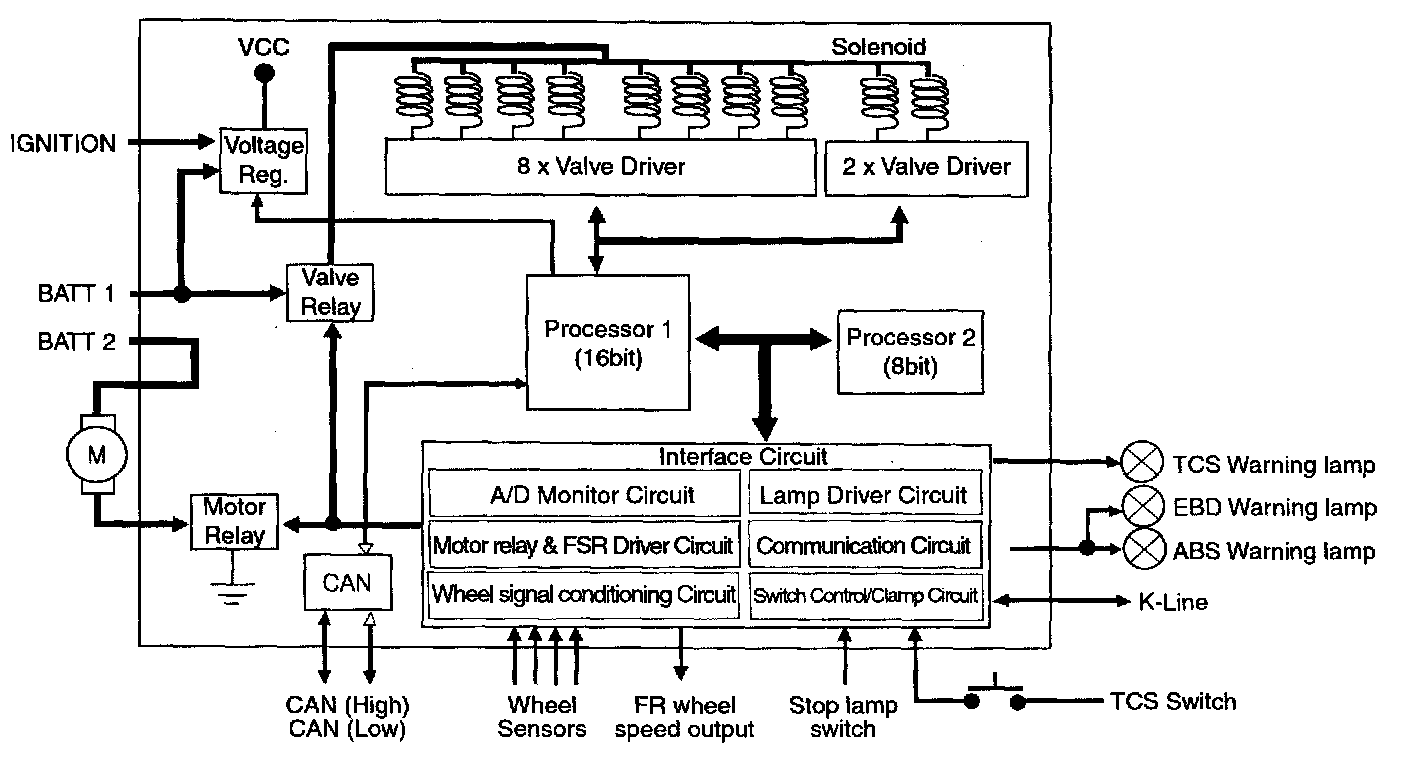

TCS Block Diagram
