Fuel Level Sensor: Service and Repair

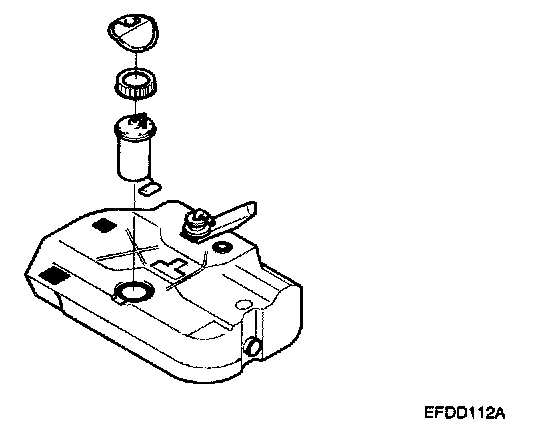

FUEL SENDER REPLACEMENT

1. Remove the fuel tank cap to lower the fuel tank's internal pressure.




2. Remove the fuel sender mounting screws, then remove the fuel sender from the fuel tank.
