Body Control Module: Service and Repair

REMOVAL
1. Disconnect the negative (-) battery terminal
2. Remove the lower crash pad panel.

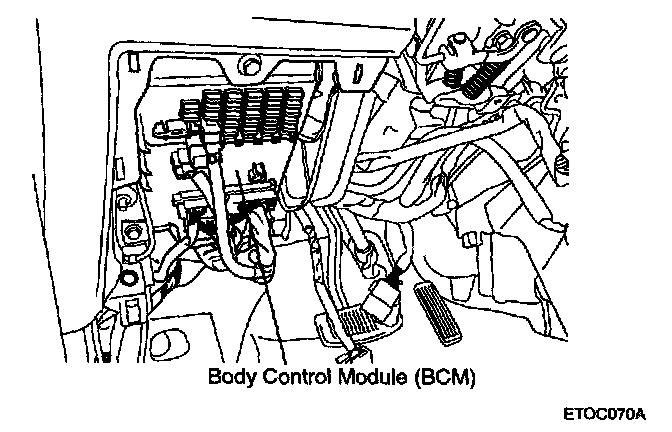

3. Remove the BCM after removing the bolt and disconnect the wire connectors.
4. Installation is the reverse of removal.
