Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

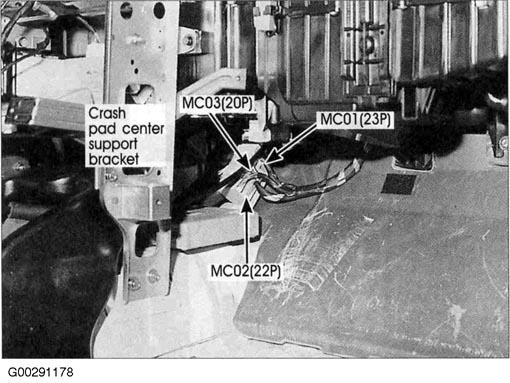

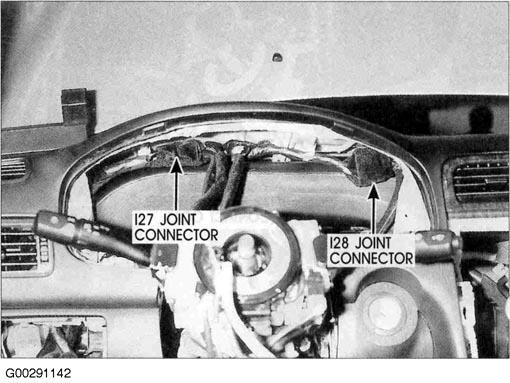

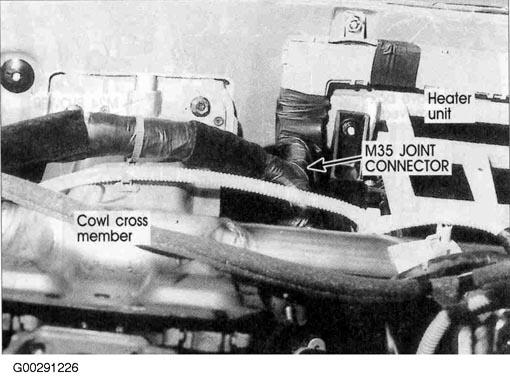

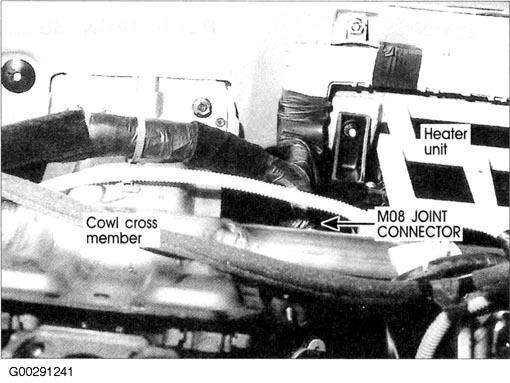

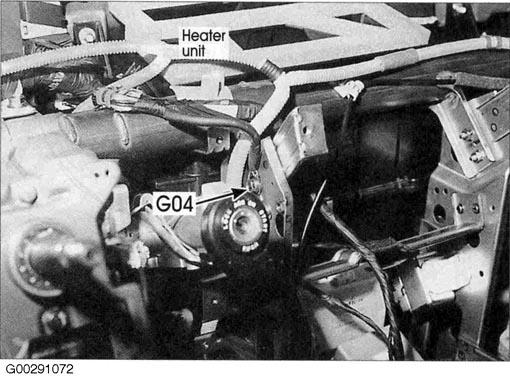

Fig 1: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

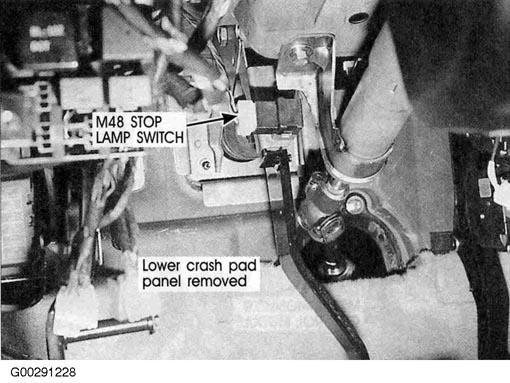

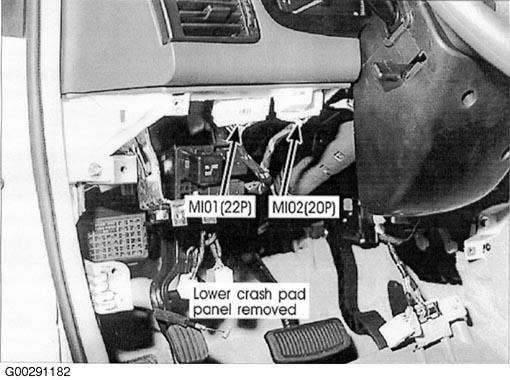

Fig 2: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 3: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 4: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

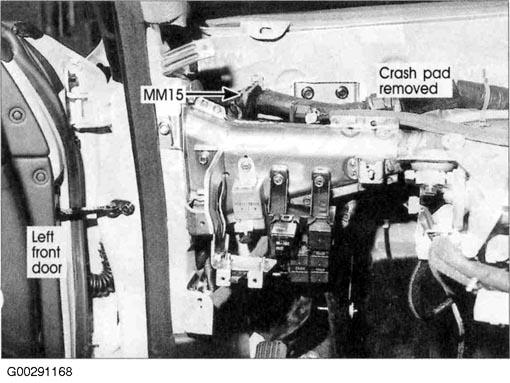

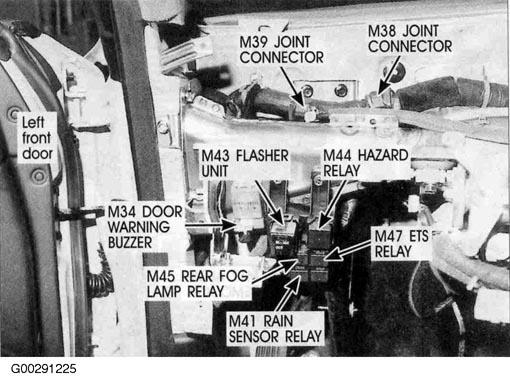

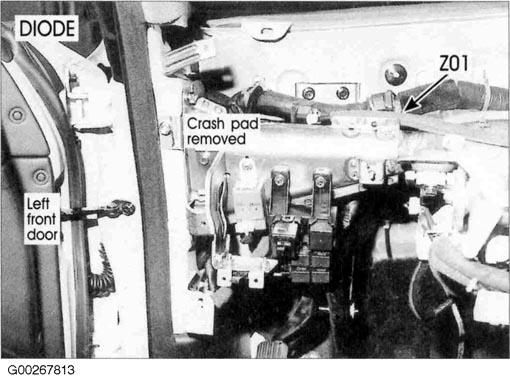

Fig 5: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

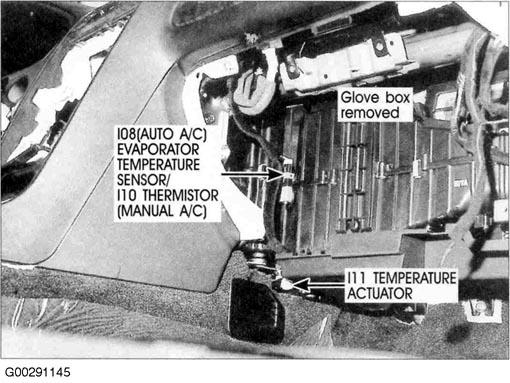

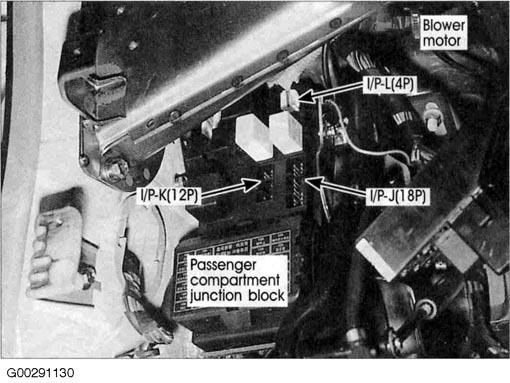

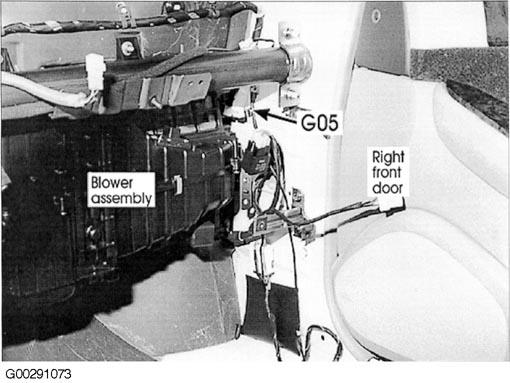

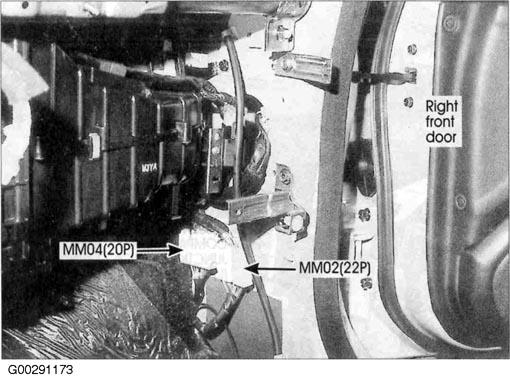

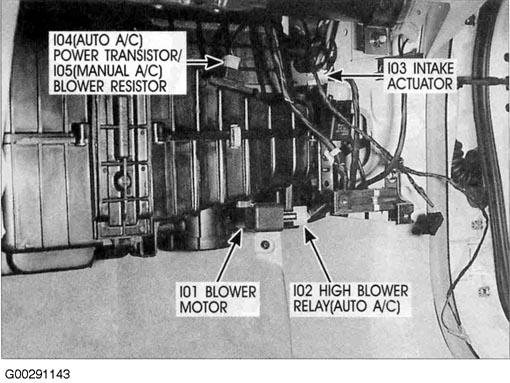

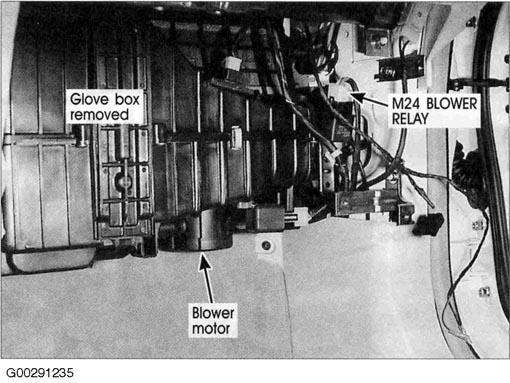

Fig 6: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 7: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 8: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 9: Left Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

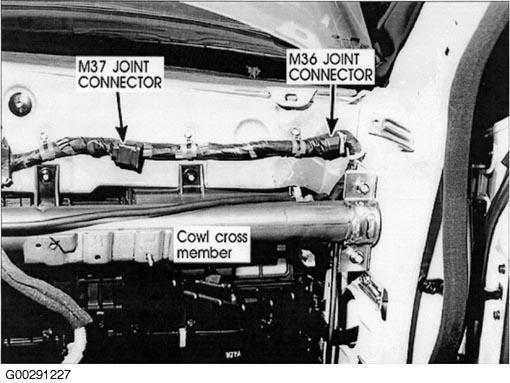

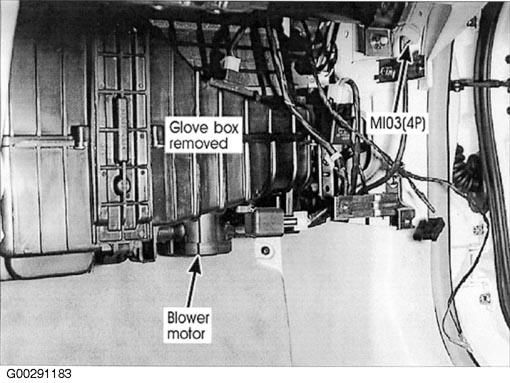

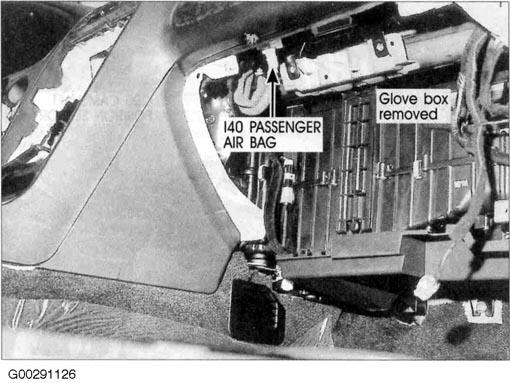

Fig 10: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 11: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

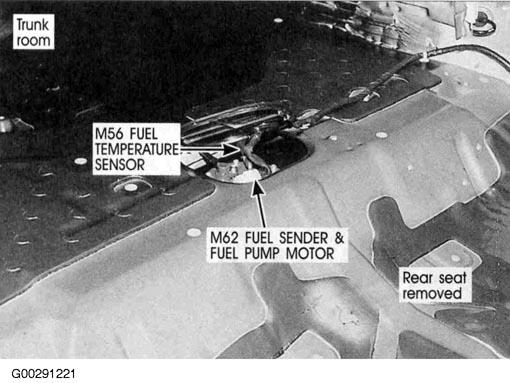

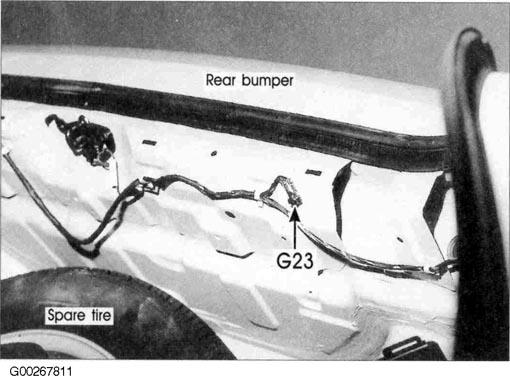

Fig 12: Under Trunk Room Floor
Courtesy of HYUNDAI MOTOR CO.

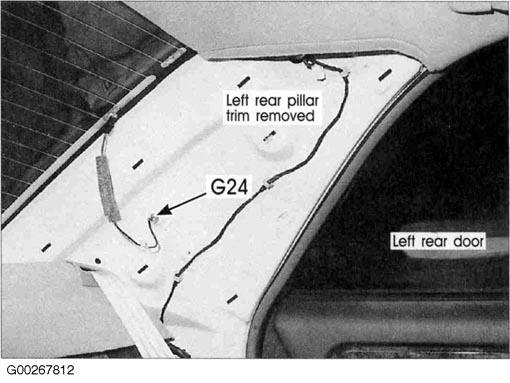

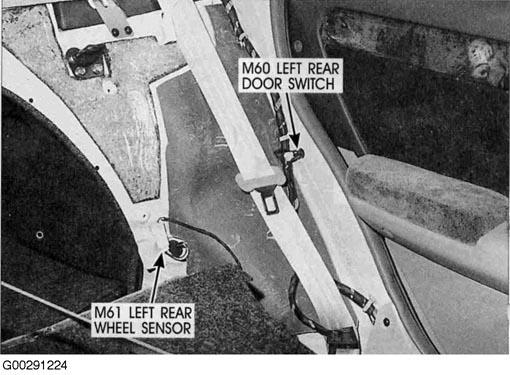

Fig 13: Left "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

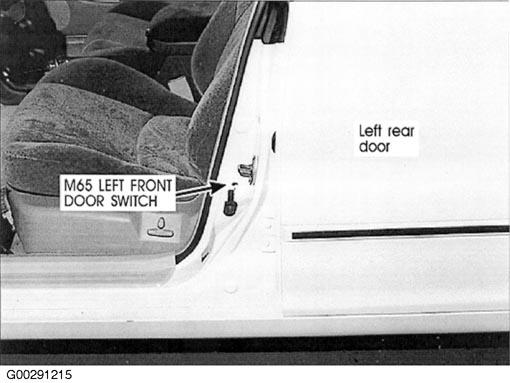

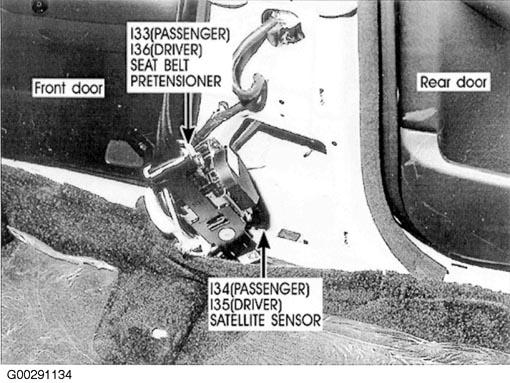

Fig 14: Left "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

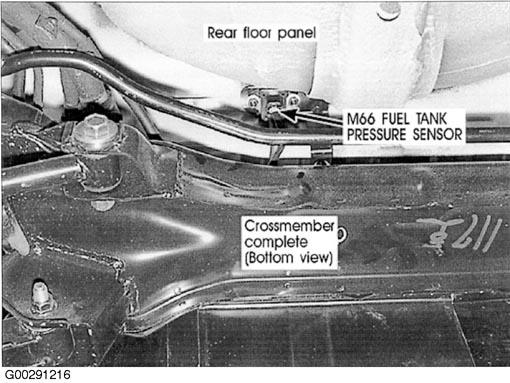

Fig 15: Under Rear Of Vehicle
Courtesy of HYUNDAI MOTOR CO.

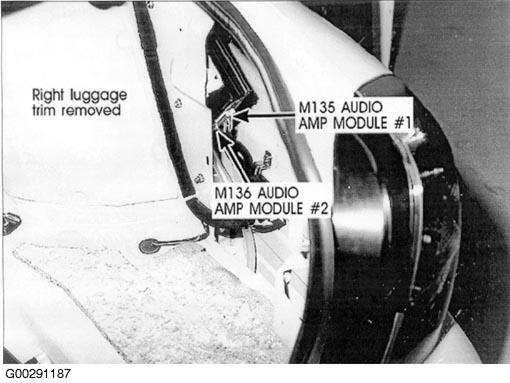

Fig 16: Right Side Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

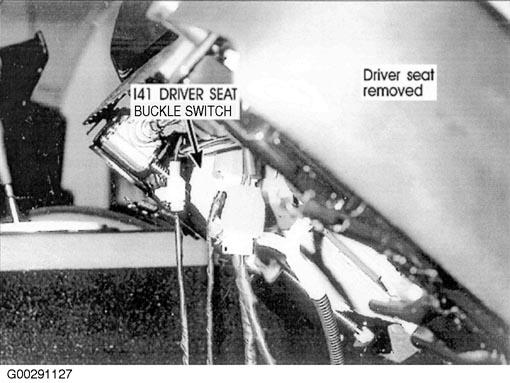

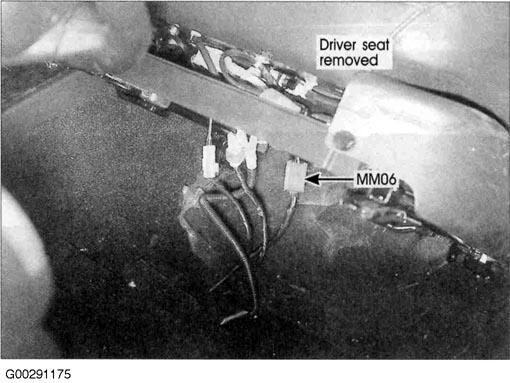

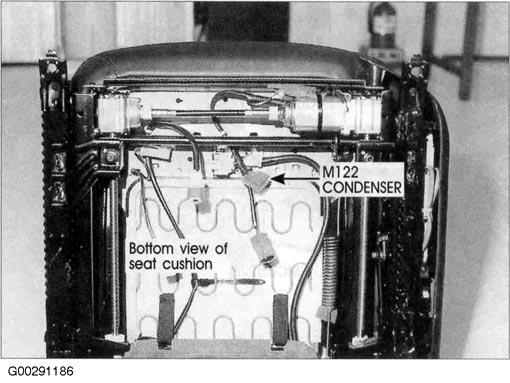

Fig 17: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

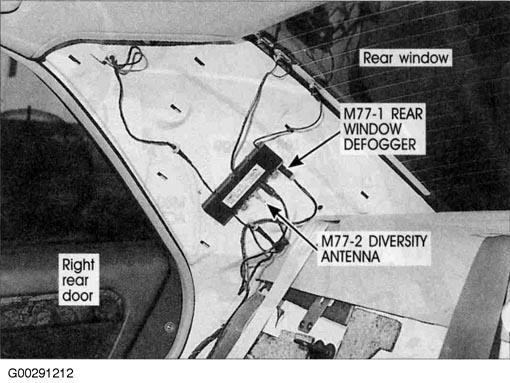

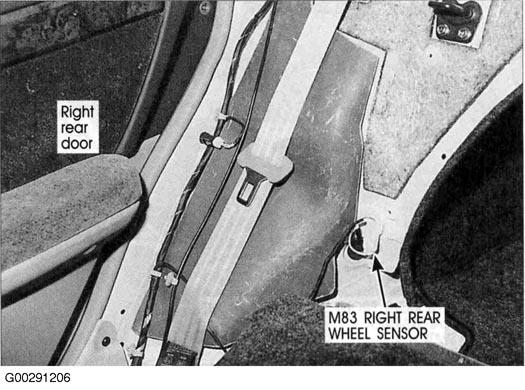

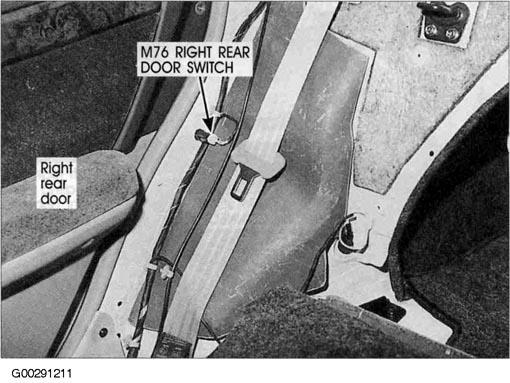

Fig 18: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

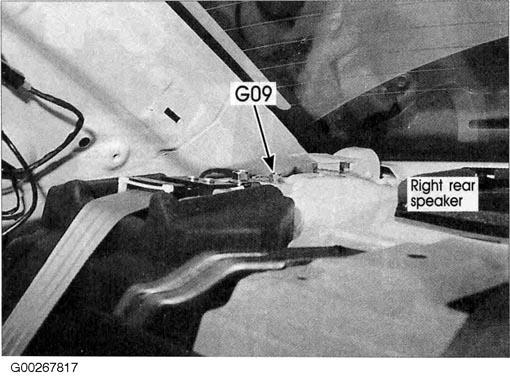

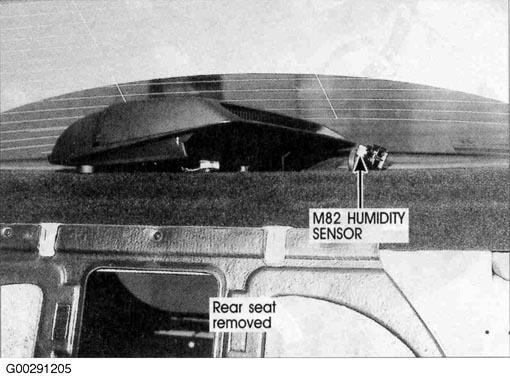

Fig 19: Above Right Side Of Rear Shelf
Courtesy of HYUNDAI MOTOR CO.

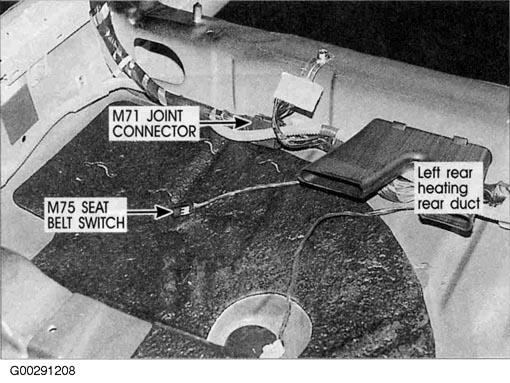

Fig 20: Under Left Front Seat
Courtesy of HYUNDAI MOTOR CO.

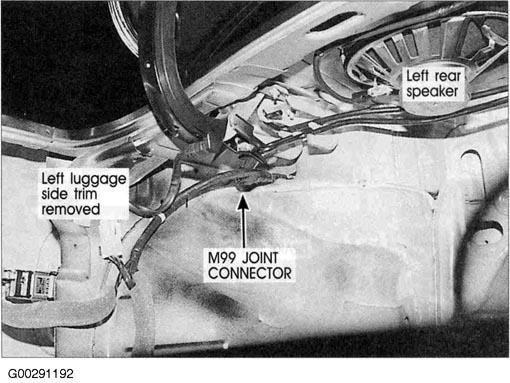

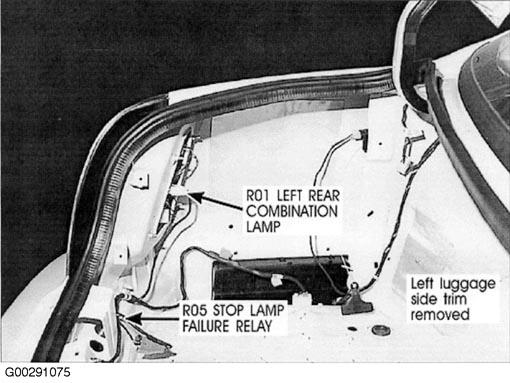

Fig 21: Left Side Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

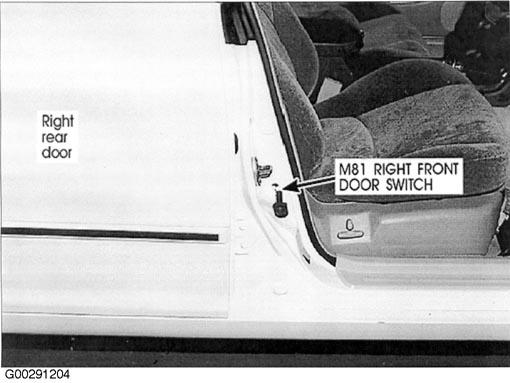

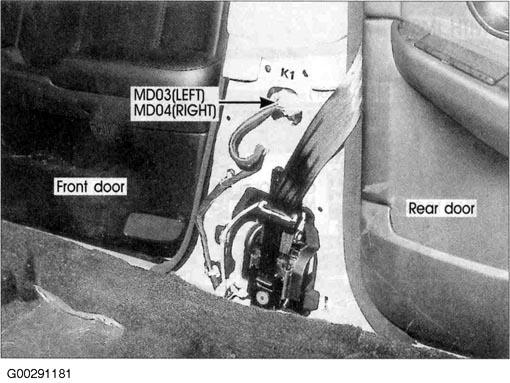

Fig 22: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.
Fig 23: Behind Top Left Of Rear Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 24: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

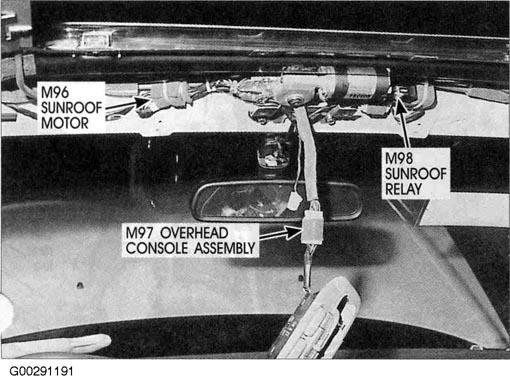

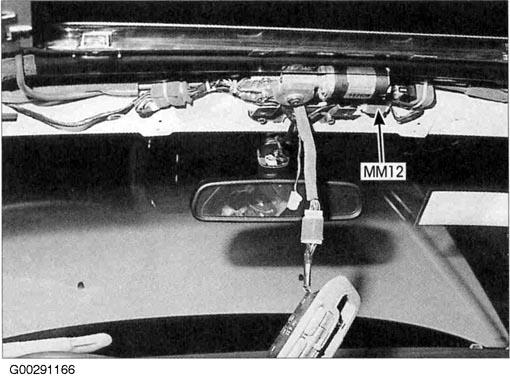

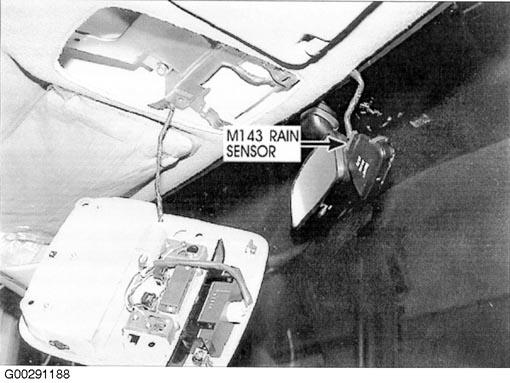

Fig 25: Headliner
Courtesy of HYUNDAI MOTOR CO.
Fig 26: Left Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.
Fig 27: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 28: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

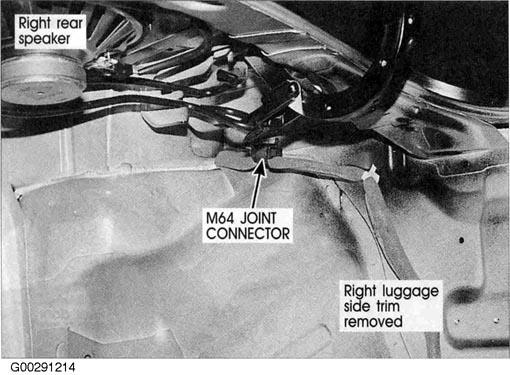

Fig 29: Right Side Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.
Fig 30: Headliner
Courtesy of HYUNDAI MOTOR CO.

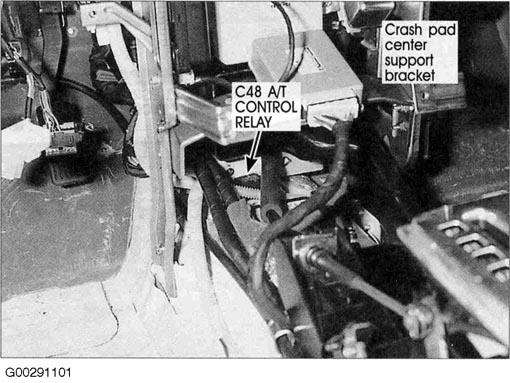

Fig 31: Lower Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 32: Lower Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 33: Lower Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 34: Right "C" Pillar
Courtesy of HYUNDAI MOTOR CO.

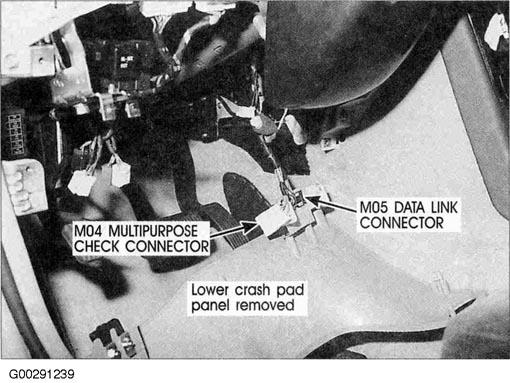

Fig 35: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 36: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 37: Lower Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 38: Lower Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 39: Lower Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 40: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.

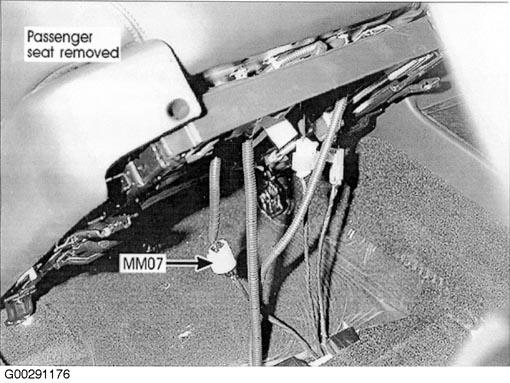

Fig 41: Under Passenger Seat
Courtesy of HYUNDAI MOTOR CO.

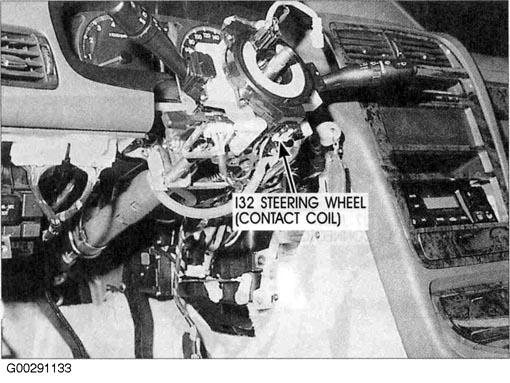

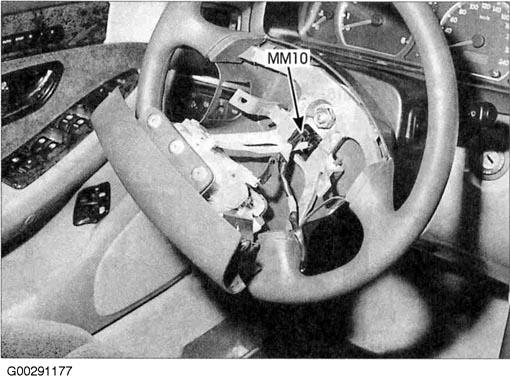

Fig 42: Steering Wheel
Courtesy of HYUNDAI MOTOR CO.
Fig 43: Headliner
Courtesy of HYUNDAI MOTOR CO.
Fig 44: Under Driver Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 45: Upper Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

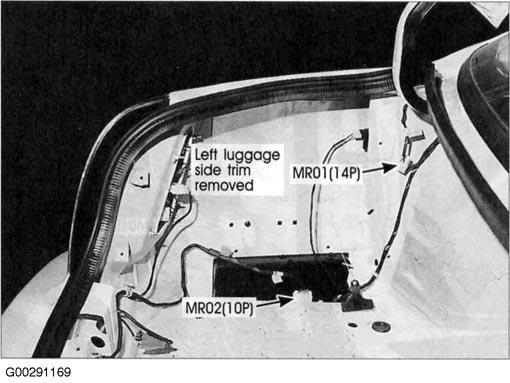

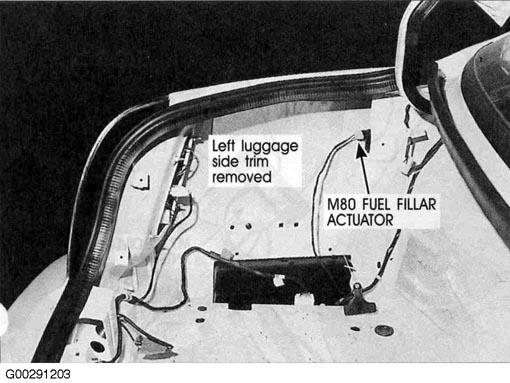

Fig 46: Left Side Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

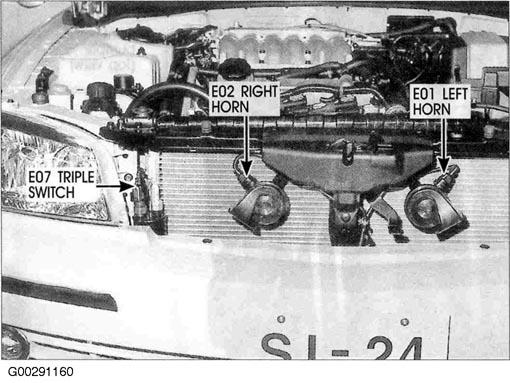

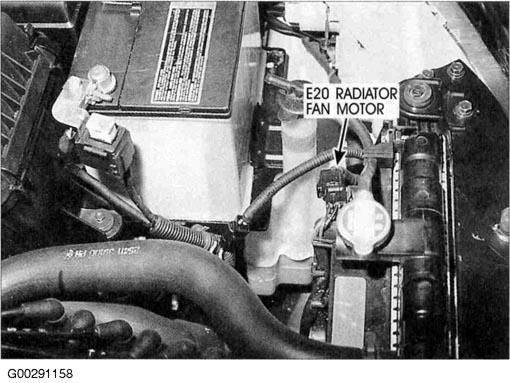

Fig 47: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

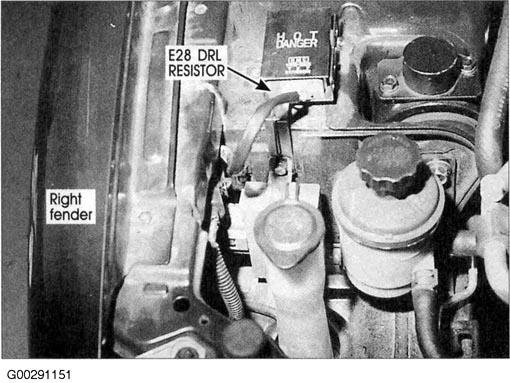

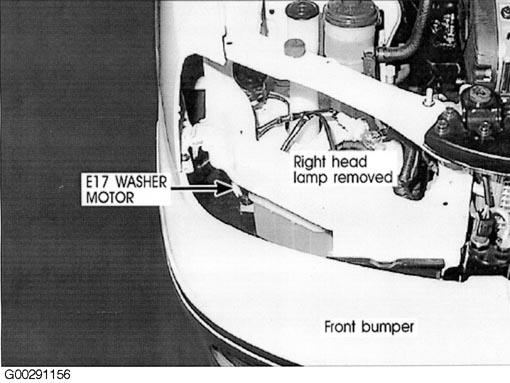

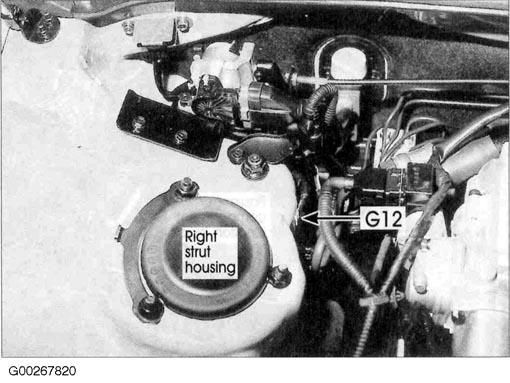

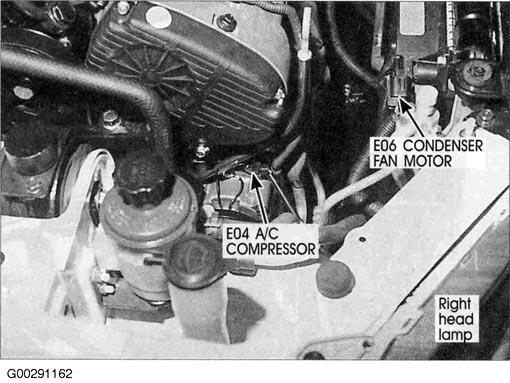

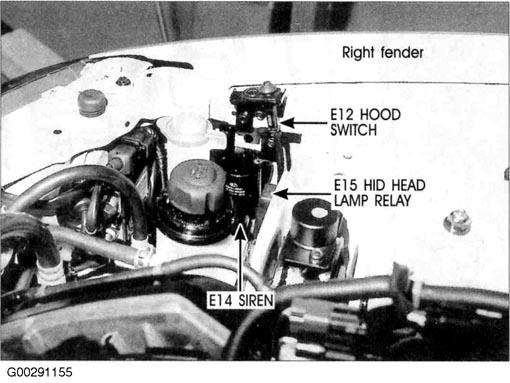

Fig 48: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

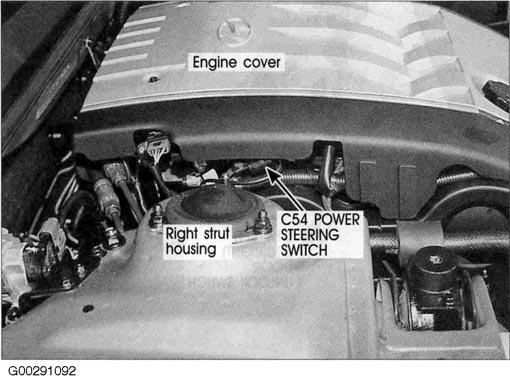

Fig 49: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 50: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 51: Right Front Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 52: Front Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

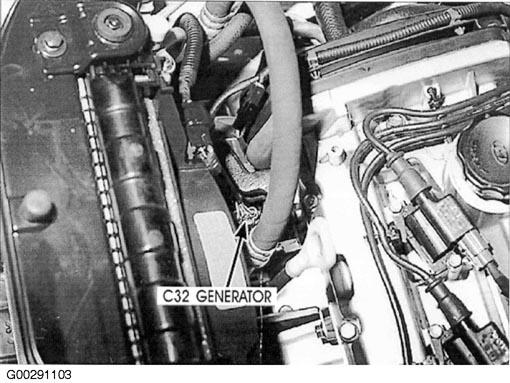

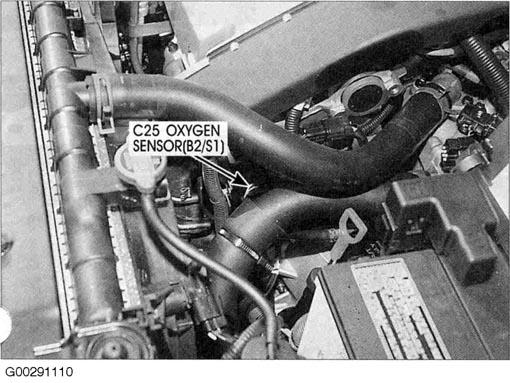

Fig 53: Front Of Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 54: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 55: Lower Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

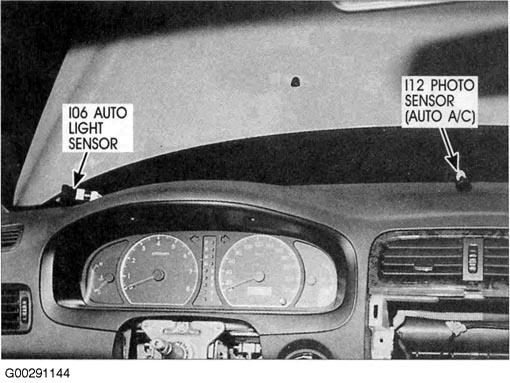

Fig 56: Top Left Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 57: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

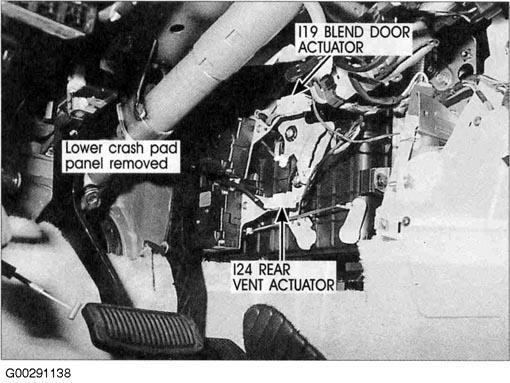

Fig 58: Lower Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 59: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 60: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 61: Upper Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

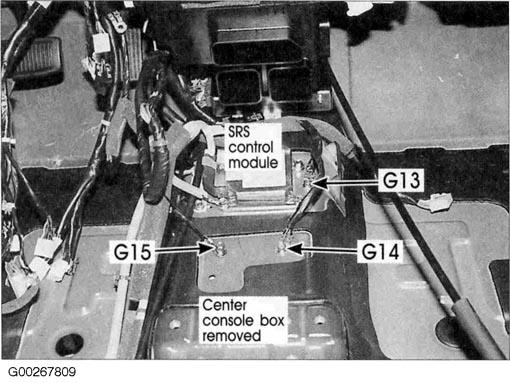

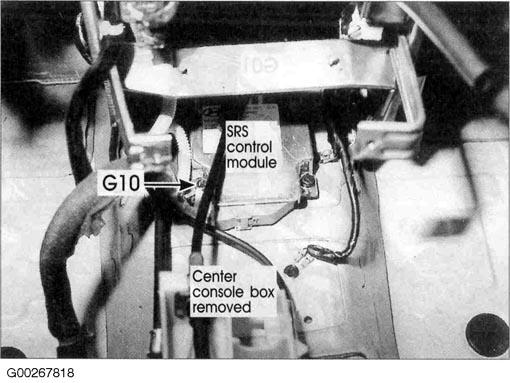

Fig 62: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 63: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 64: Right "B" Pillar
Courtesy of HYUNDAI MOTOR CO.

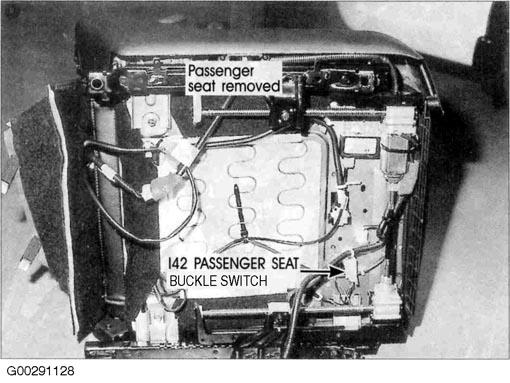

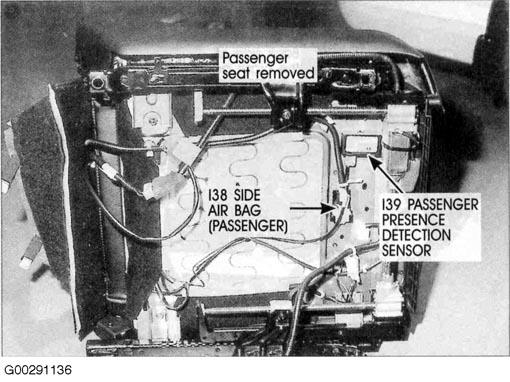

Fig 65: Passenger Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 66: Right Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

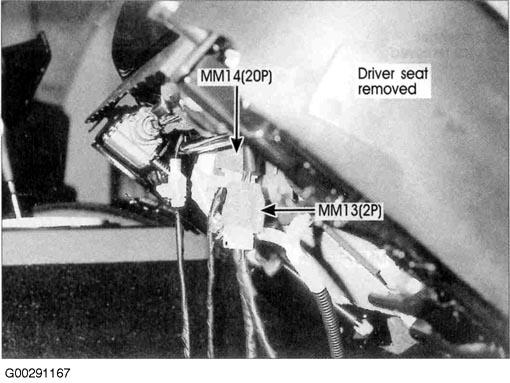

Fig 67: Driver Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 68: Passenger Seat
Courtesy of HYUNDAI MOTOR CO.
Fig 69: Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

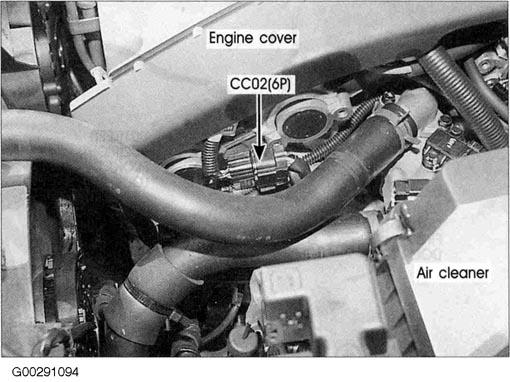

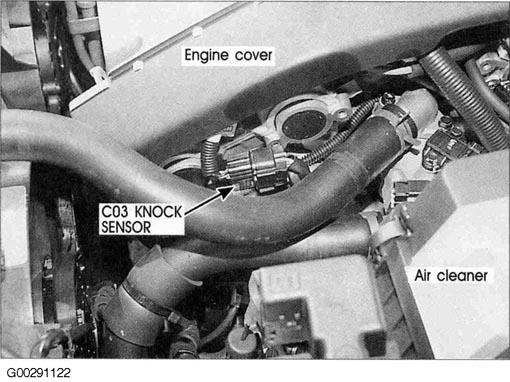

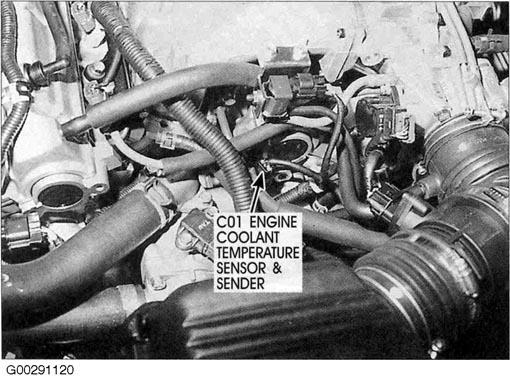

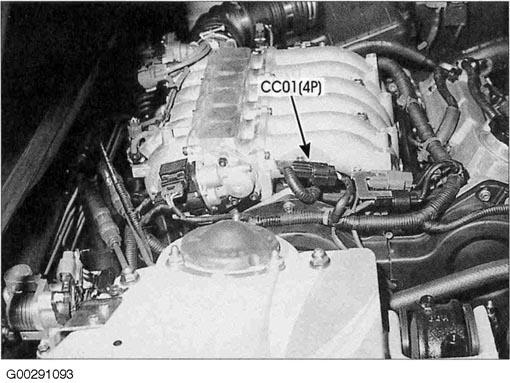

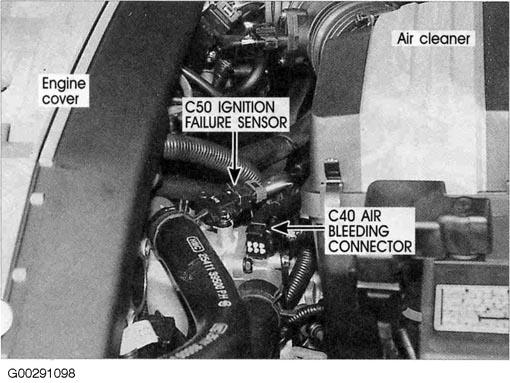

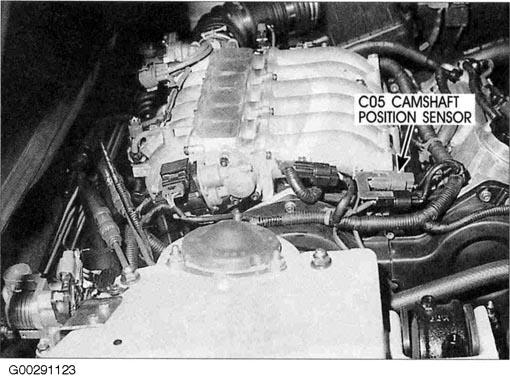

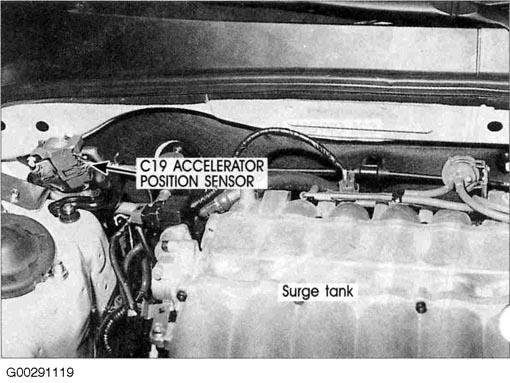

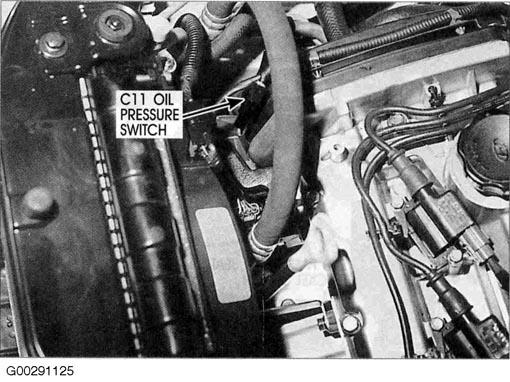

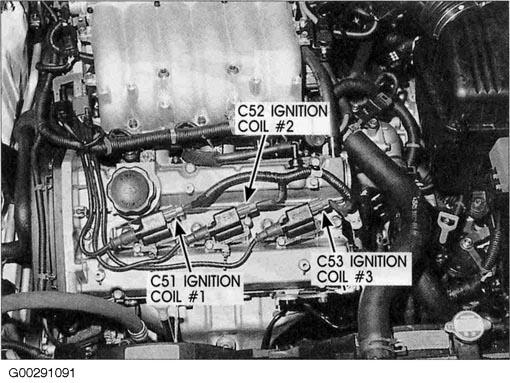

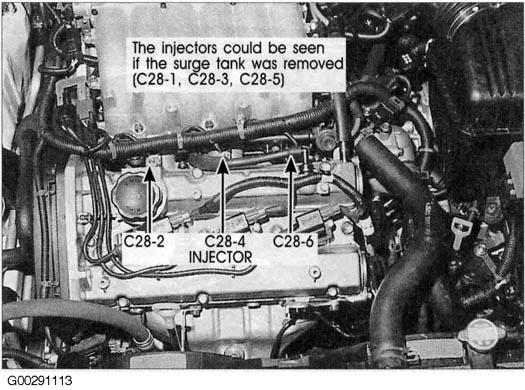

Fig 70: Engine
Courtesy of HYUNDAI MOTOR CO.

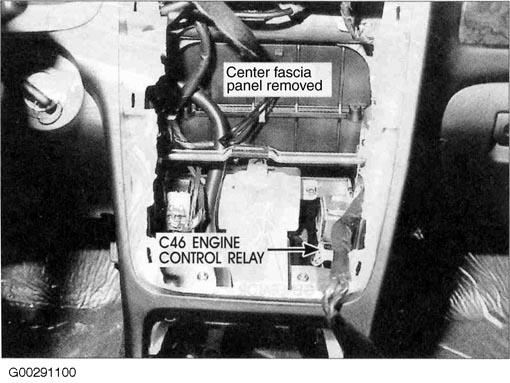

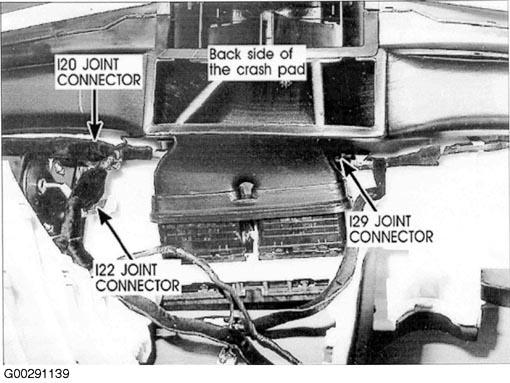

Fig 71: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.

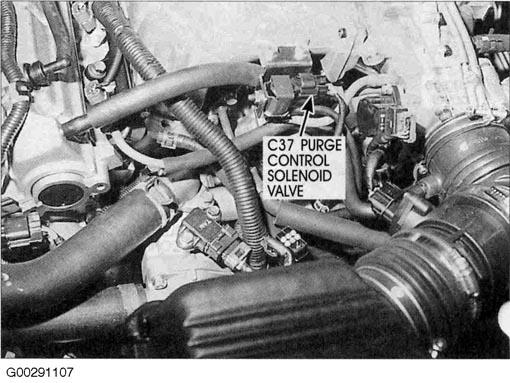

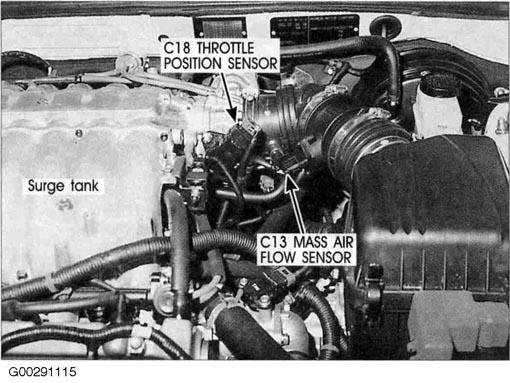

Fig 72: Engine
Courtesy of HYUNDAI MOTOR CO.

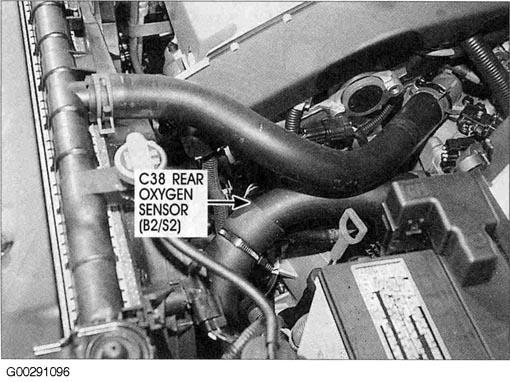

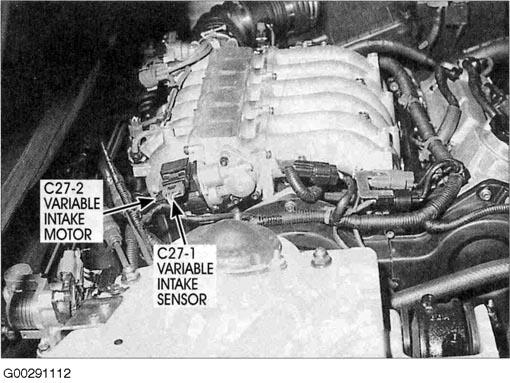

Fig 73: Engine
Courtesy of HYUNDAI MOTOR CO.

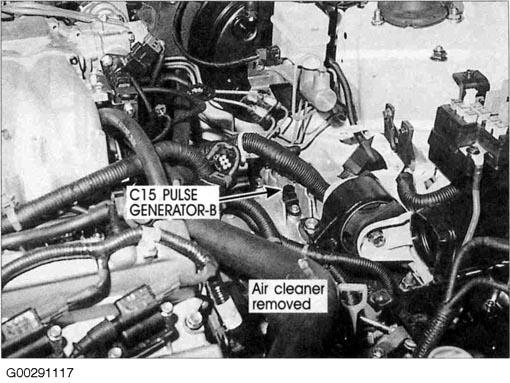

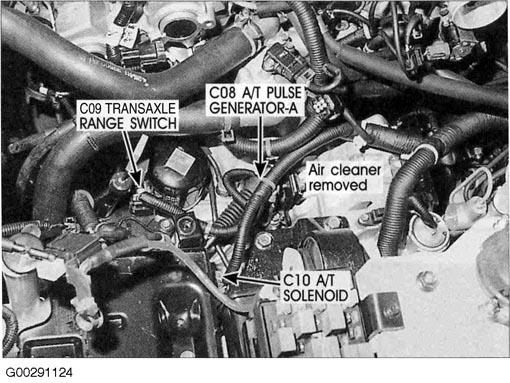

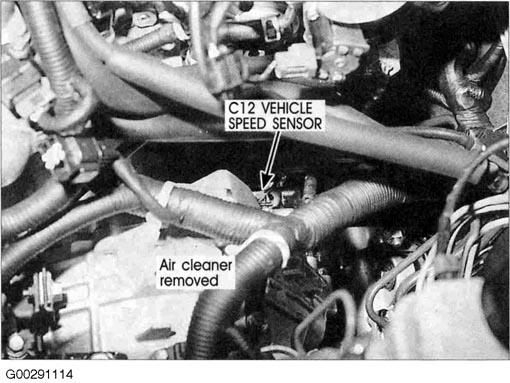

Fig 74: Transaxle
Courtesy of HYUNDAI MOTOR CO.

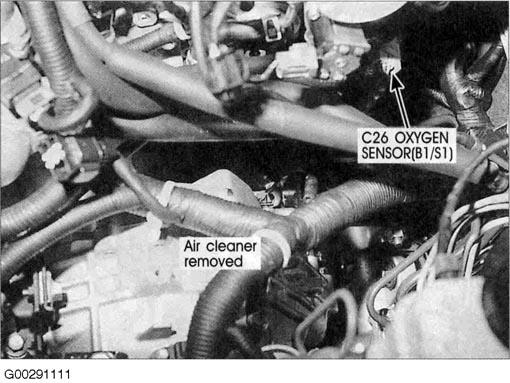

Fig 75: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 76: Transaxle
Courtesy of HYUNDAI MOTOR CO.
Fig 77: Engine
Courtesy of HYUNDAI MOTOR CO.

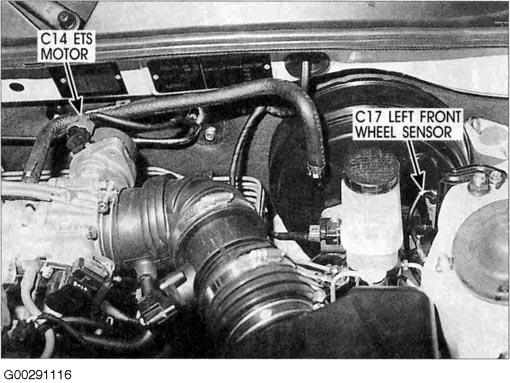

Fig 78: Left Rear Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 79: Transaxle
Courtesy of HYUNDAI MOTOR CO.

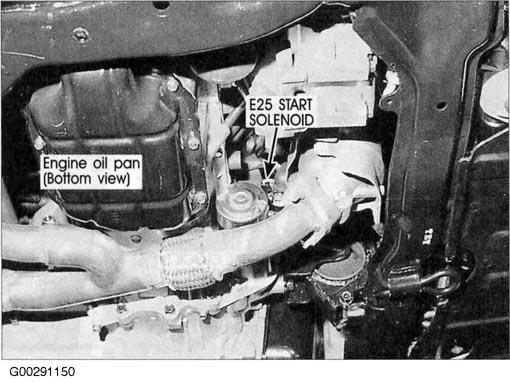

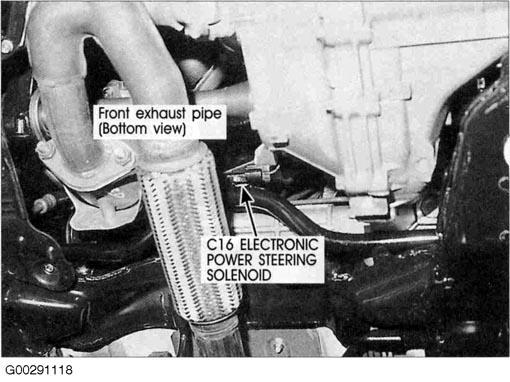

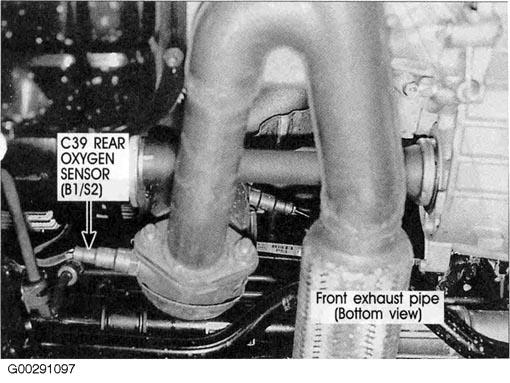

Fig 80: Under Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 81: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 82: Left Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 83: Left Rear Corner Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 84: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 85: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 86: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 87: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 88: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 89: Engine
Courtesy of HYUNDAI MOTOR CO.

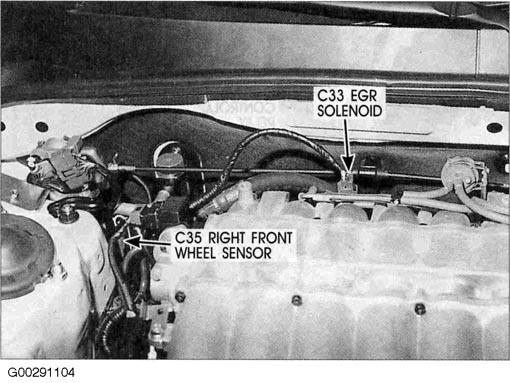

Fig 90: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 91: Right Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 92: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 93: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 94: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 95: Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 96: Lower Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 97: Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 98: Lower Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 99: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 100: Engine
Courtesy of HYUNDAI MOTOR CO.
Fig 101: Engine
Courtesy of HYUNDAI MOTOR CO.

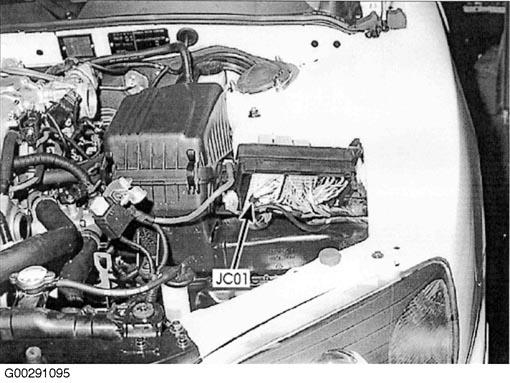

Fig 102: Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

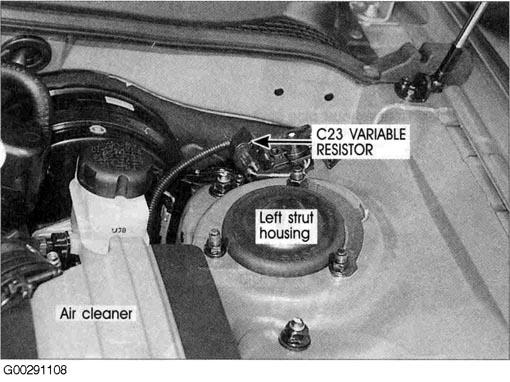

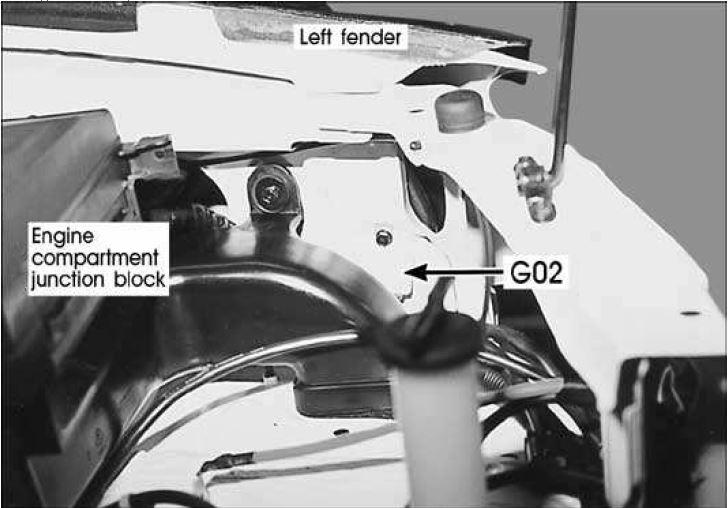

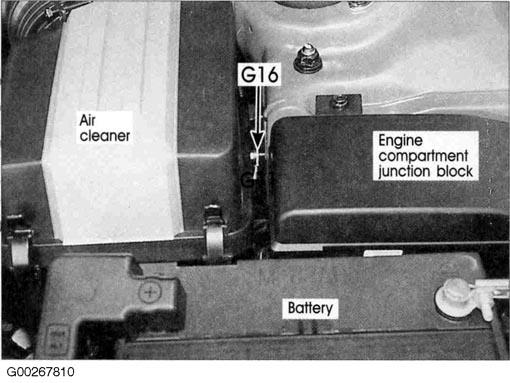

Fig 103: Left Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.

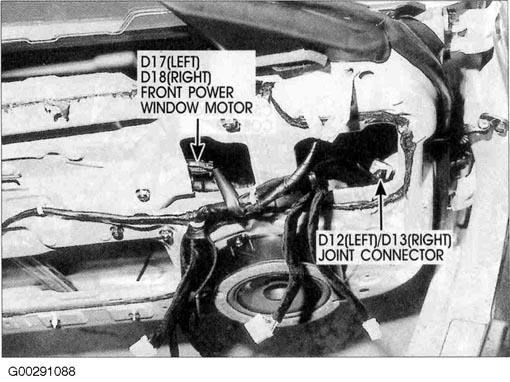

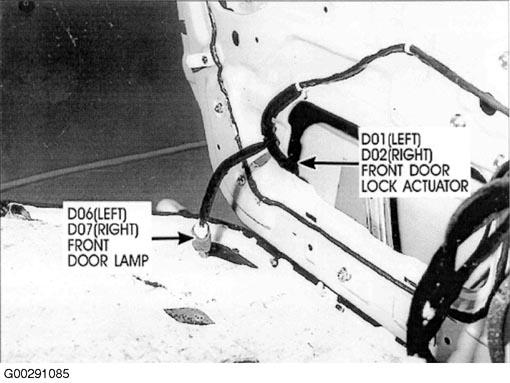

Fig 104: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 105: Left Front Door
Courtesy of HYUNDAI MOTOR CO.
Fig 106: Left Front Door
Courtesy of HYUNDAI MOTOR CO.

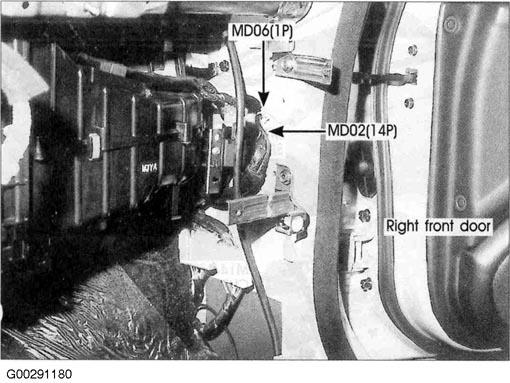

Fig 107: Right Front Door
Courtesy of HYUNDAI MOTOR CO.

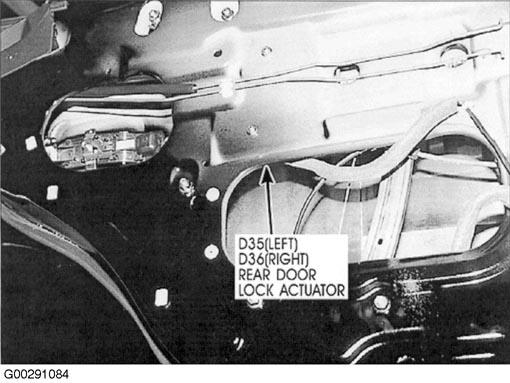

Fig 108: Left Rear Door
Courtesy of HYUNDAI MOTOR CO.
Fig 109: Left Side Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

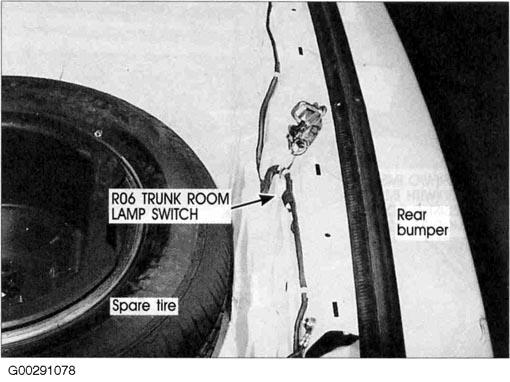

Fig 110: Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

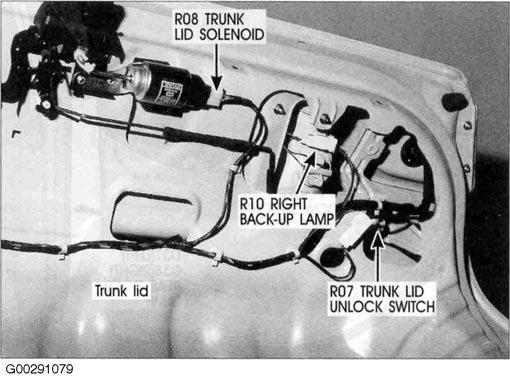

Fig 111: Trunk Lid
Courtesy of HYUNDAI MOTOR CO.
Fig 112: Upper Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 113: Right Center Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 114: Right End Of Dash
Courtesy of HYUNDAI MOTOR CO.
Fig 115: Left End Of Dash
Courtesy of HYUNDAI MOTOR CO.

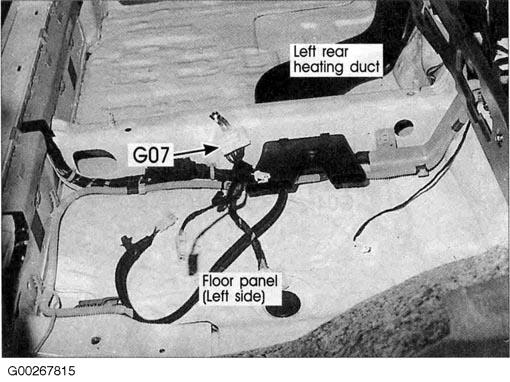

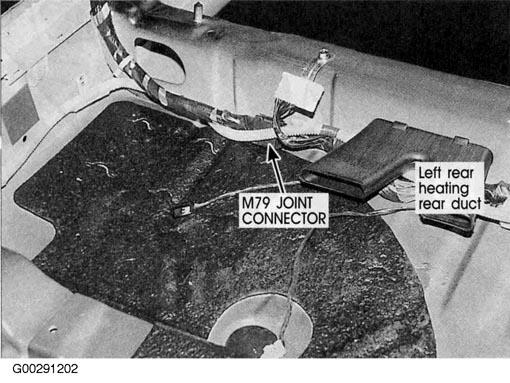

Fig 116: Left Floor Panel
Courtesy of HYUNDAI MOTOR CO.
Fig 117: Left Side Of Package Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 118: Right Side Of Package Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 119: Under Center Console
Courtesy of HYUNDAI MOTOR CO.

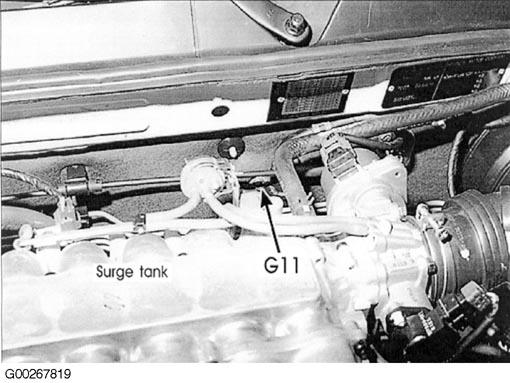

Fig 120: Rear Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 121: Right Side Of Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 122: Under Center Console
Courtesy of HYUNDAI MOTOR CO.
Fig 123: Engine Compartment
Courtesy of HYUNDAI MOTOR CO.
Fig 124: Rear Of Trunk Room
Courtesy of HYUNDAI MOTOR CO.

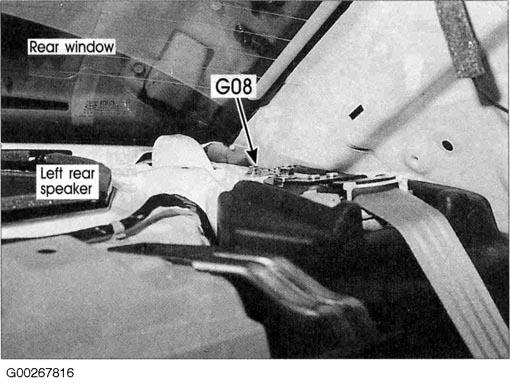

Fig 125: Above Left End Of Package Shelf
Courtesy of HYUNDAI MOTOR CO.
Fig 126: Upper Left Side Of Dash
Courtesy of HYUNDAI MOTOR CO.

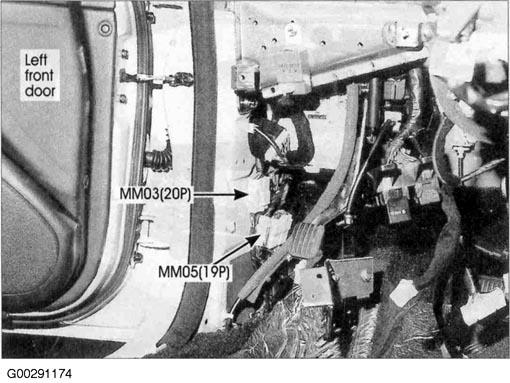

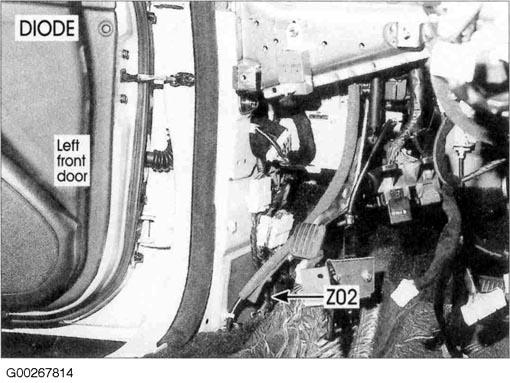

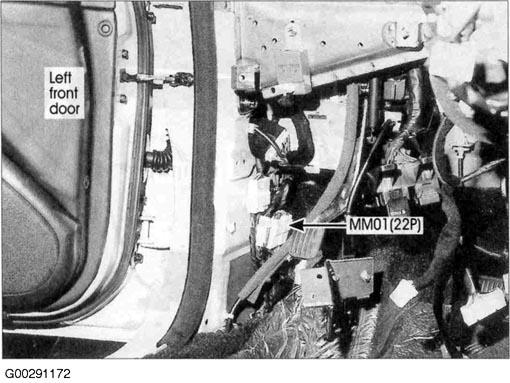

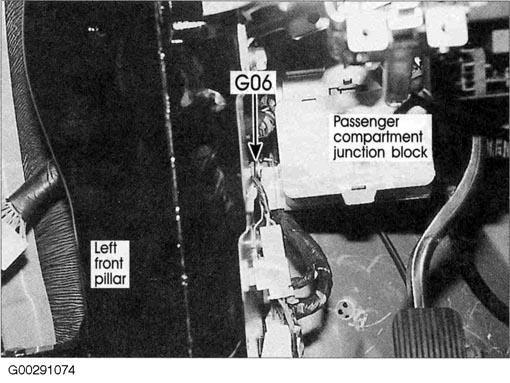

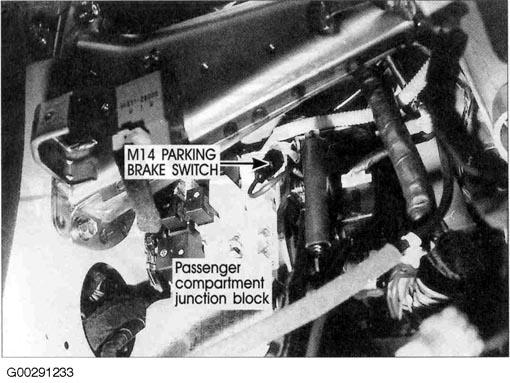

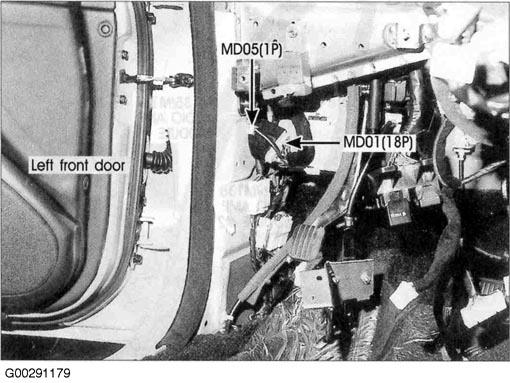

Fig 127: Left Kick Panel
Courtesy of HYUNDAI MOTOR CO.

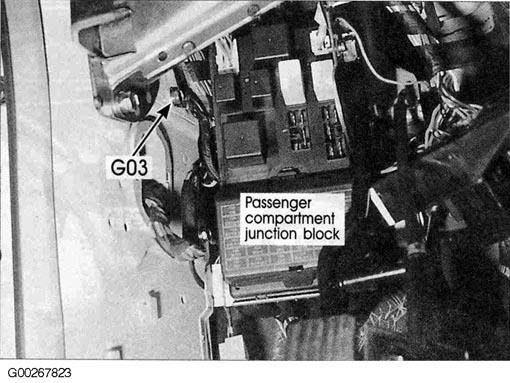

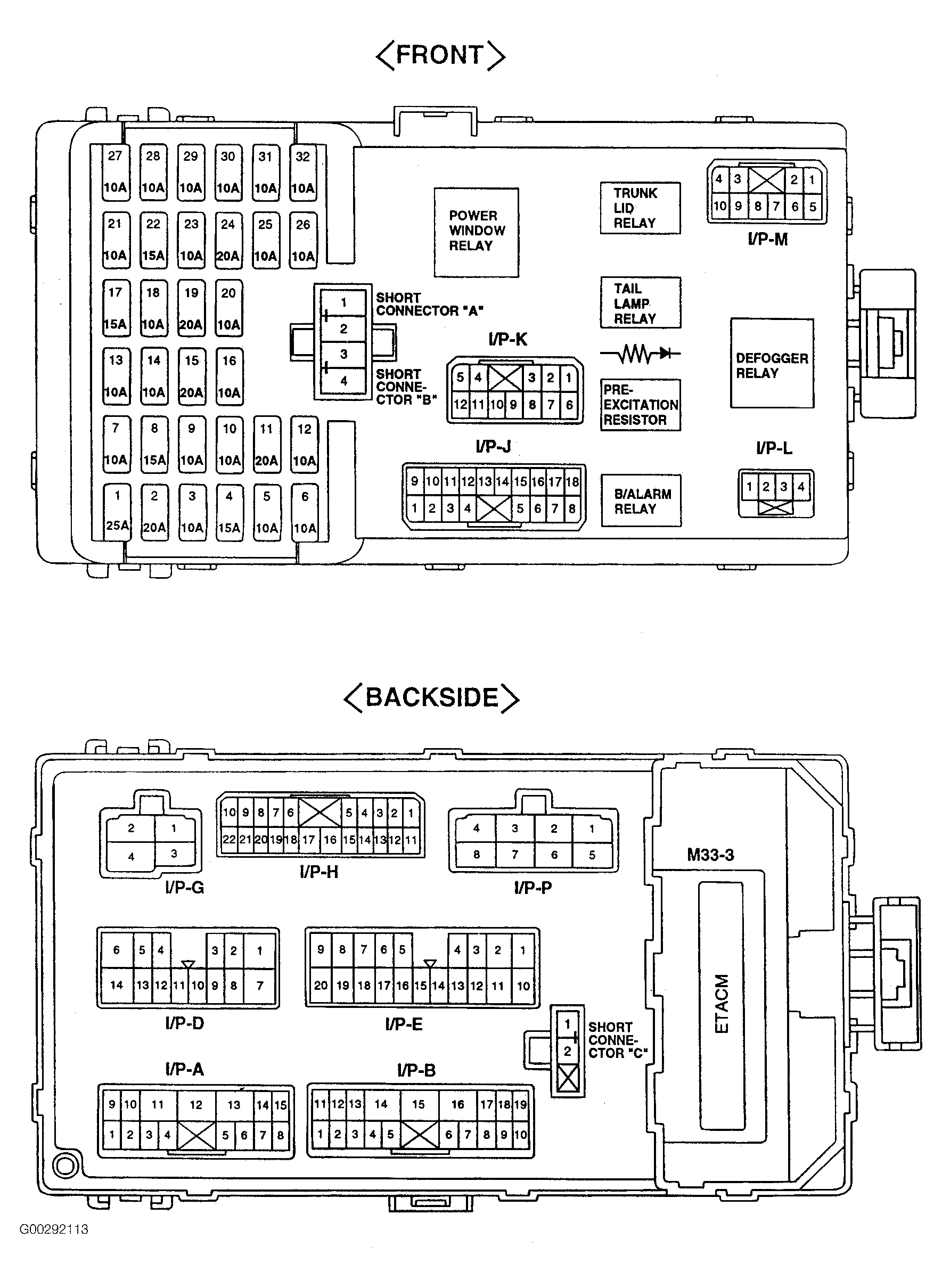

Fig 128: Passenger Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.

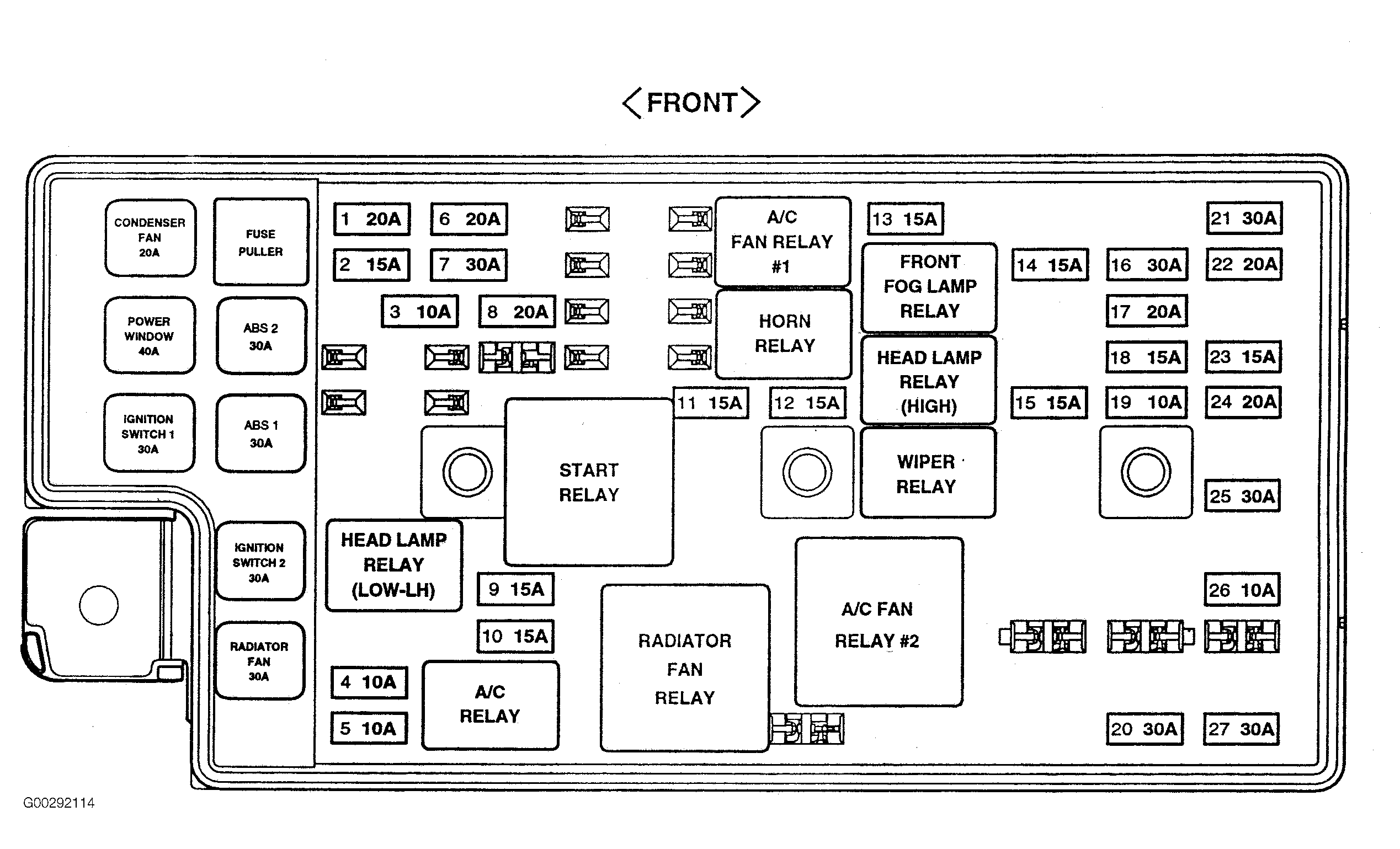

Fig 129: Engine Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.
Fig 130: Engine Compartment Junction Block
Courtesy of HYUNDAI MOTOR CO.
