Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

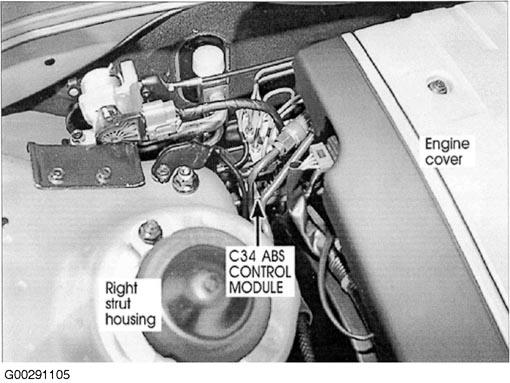

| ABS Control Module | Right rear of engine compartment. See Figure. |

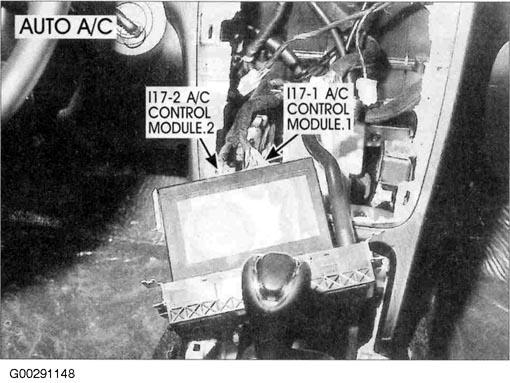

| A/C Control Module | In center of dash. See Figure. |

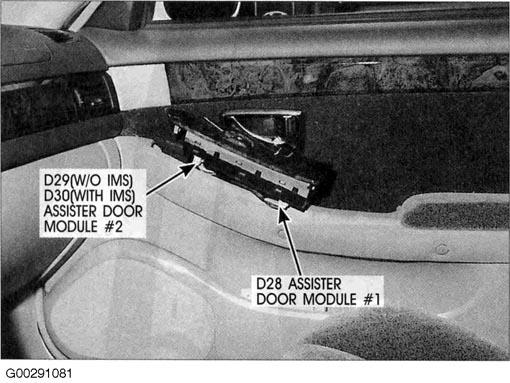

| Assister Door Module | Integral with power window/door switch assembly, on right front door. See Figure. |

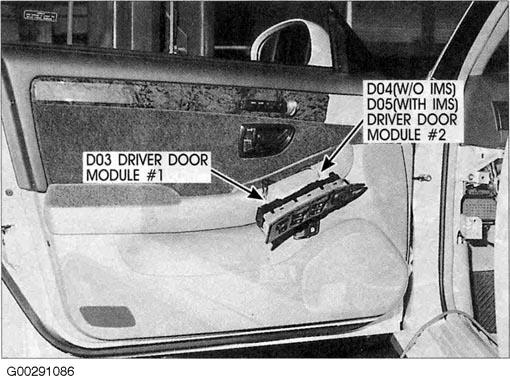

| Driver Door Module | Integral with power window/door switch assembly, on left front door. See Figure. |

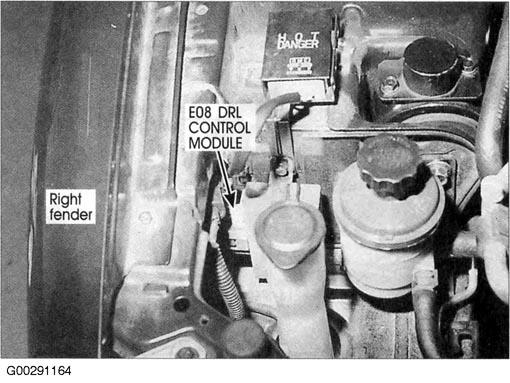

| DRL Control Module | On right front of engine compartment, near engine mount. See Figure. |

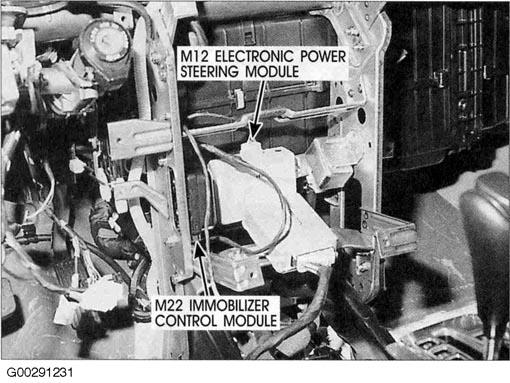

| Electronic Power Steering Module | Behind center of dash, on support bracket. See Figure. |

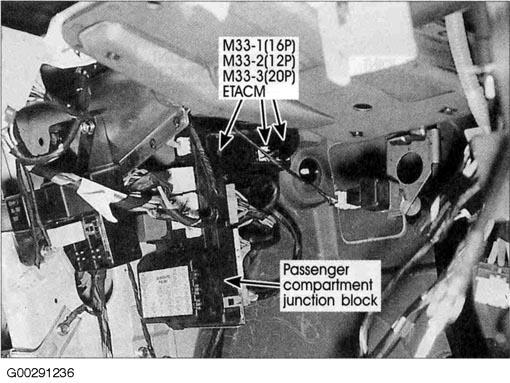

| ETACM | On rear of passenger compartment junction block, behind left end of dash. See Figure. |

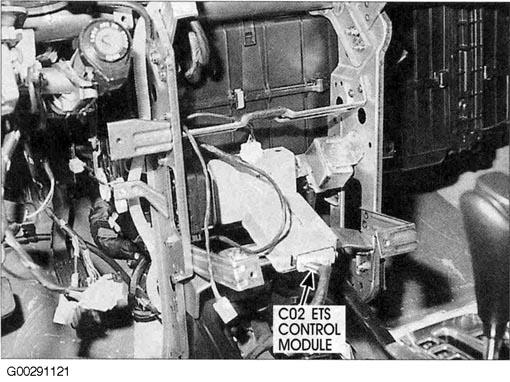

| ETS Control Module | Behind center of dash, on support bracket. See Figure. |
| Immobilizer Control Module | Left center of dash. See Figure. |

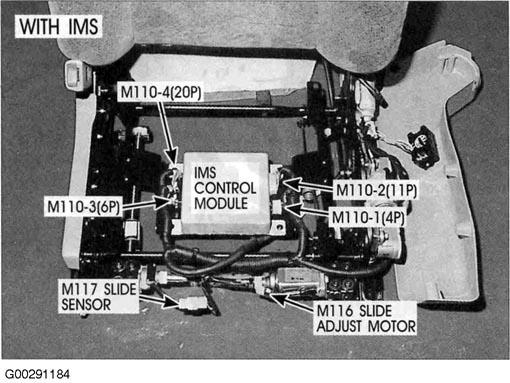

| IMS Control Module | Under left front seat. See Figure. |

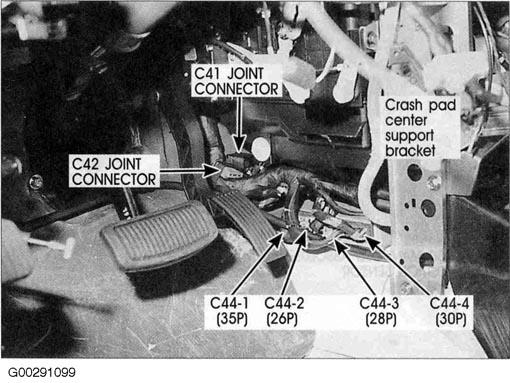

| PCM (C44-1, C44-2, C44-3, C44-4) | Behind lower center of dash. See Figure. |

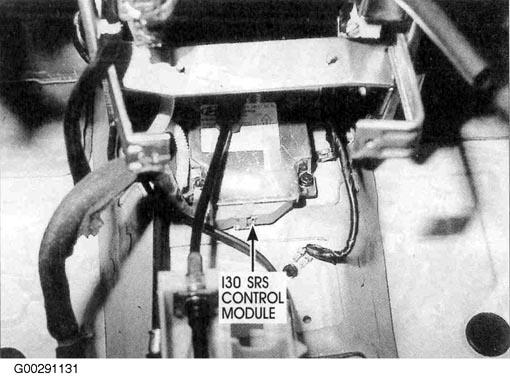

| SRS Control Module | Below center console. See Figure. |
