Accelerator Pedal: Installation

When installing the return spring and accelerator arm, apply multi-purpose grease around each moving point of the accelerator arm.

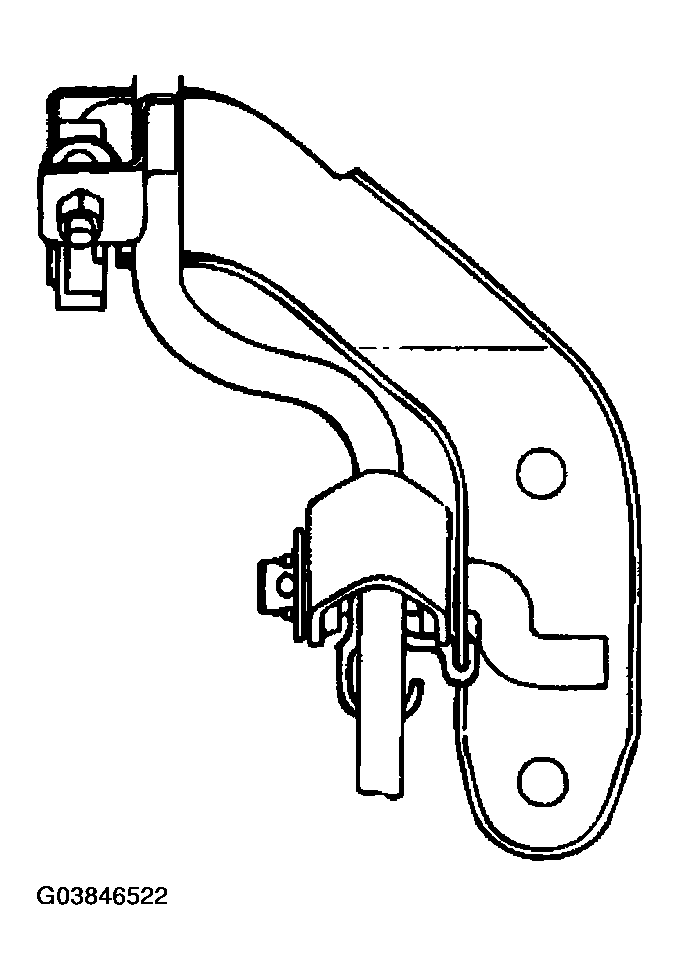

Fig 1: Installing Return Spring And Accelerator Arm
Courtesy of HYUNDAI MOTOR CO.
Apply sealant to the bolt mounting hole and tighten the accelerator arm bracket.
Tightening torque

Accelerator arm bracket bolts:

8-12 N.m (80-120 kg.cm, 6-7 lb.ft)

Fig 2: Locating Area For Applying Sealant To Bolt Mounting Hole
Courtesy of HYUNDAI MOTOR CO.
Securely install the resin bushing of the accelerator cable on the end of the accelerator arm.

Fig 3: Installing Resin Bushing Of Accelerator Cable On End Of Accelerator Arm
Courtesy of HYUNDAI MOTOR CO.
