Fuel Injector: Components

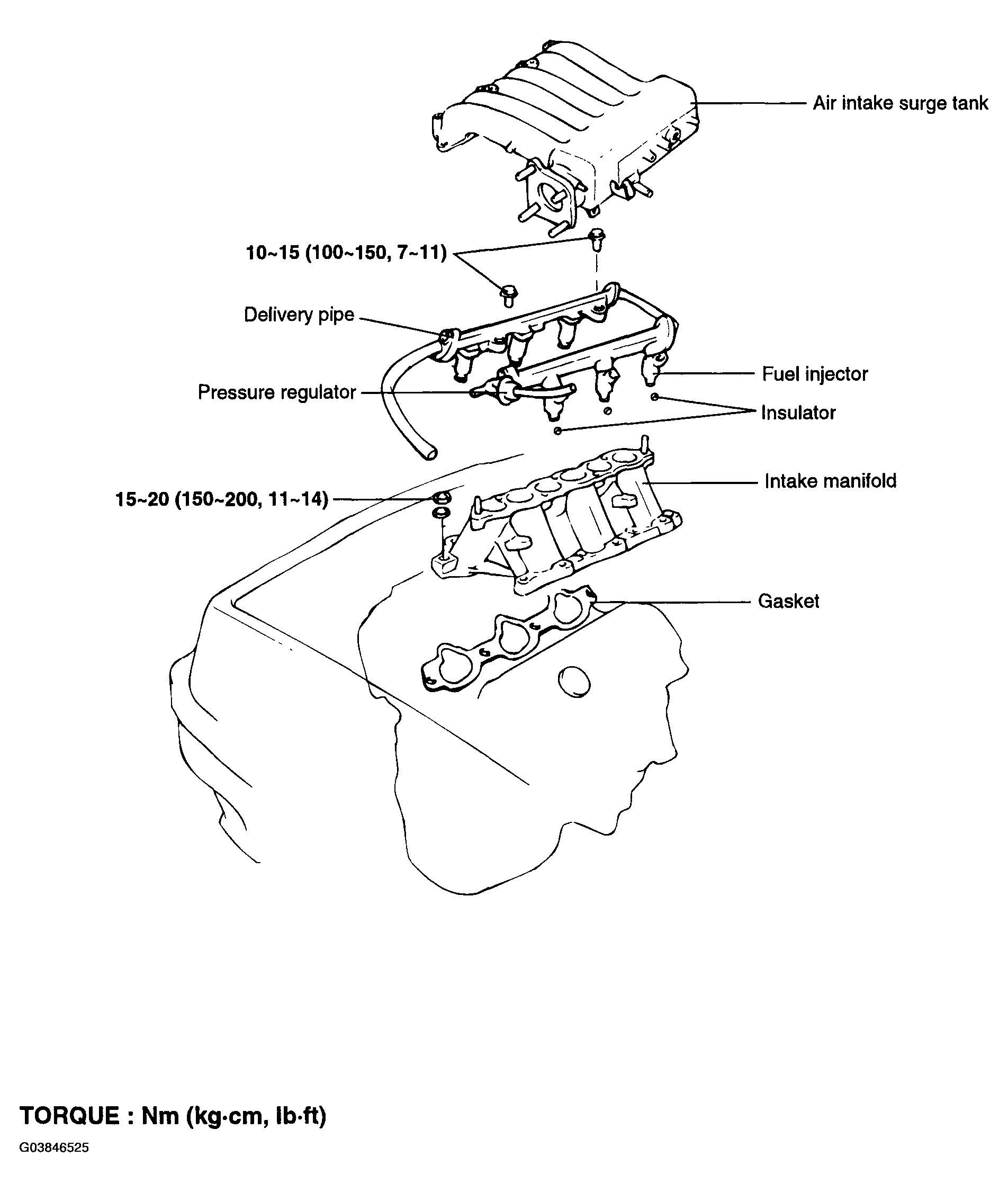

Fig 1: Fuel Injector Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
