Mass Air Flow (MAF) Sensor: Notes

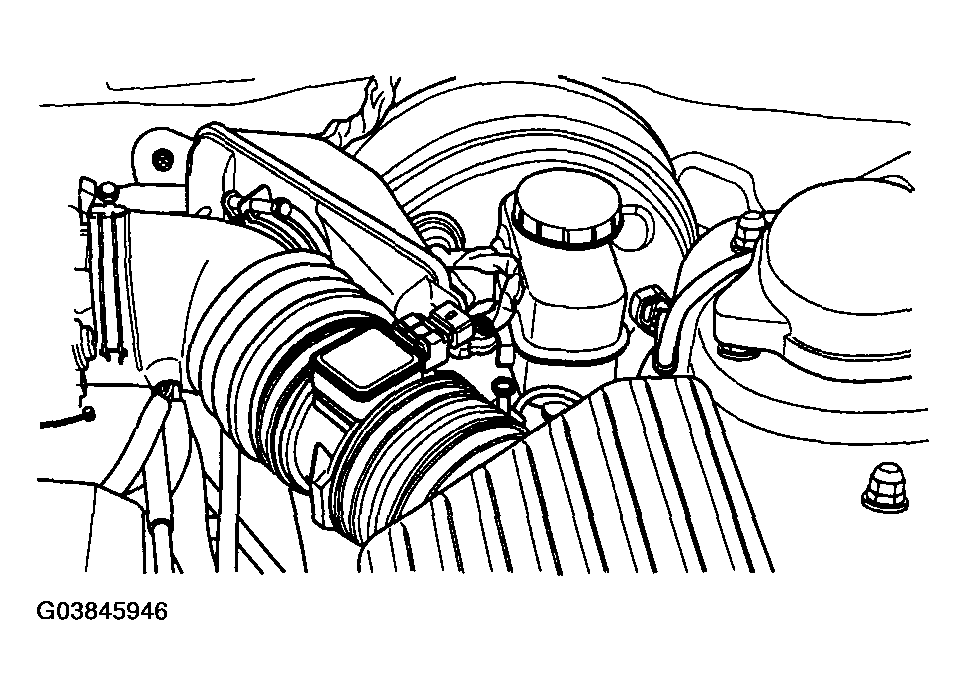

This hot film type Mass Air Flow (MAF) Sensor is composed of a hot film sensor, housing and metering duct (hybrid sensor element). Mass air flow rate is measured by detection of heat transfer from a hot film probe because the change of the mass air flow rate causes a change in the amount of heat being transferred from the hot film probe surface to the air flow. The mass air flow sensor generates a pulse so it repeatedly opens and closes between the 5V voltage supplied from the ECM.
This results in the change of the temperature of the hot film probe and in the change of resistance.

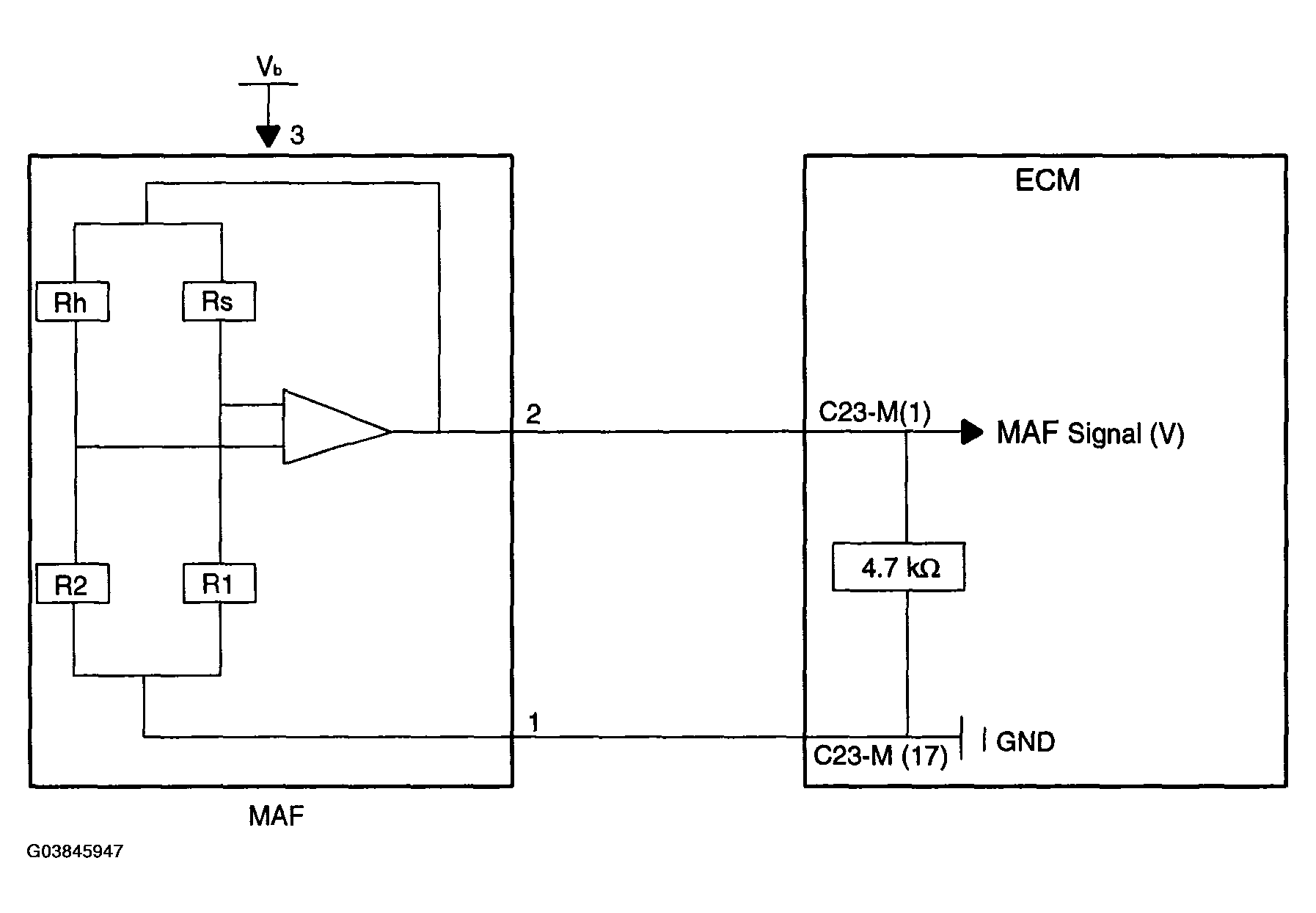

[CIRCUIT DIAGRAM (MAF)]

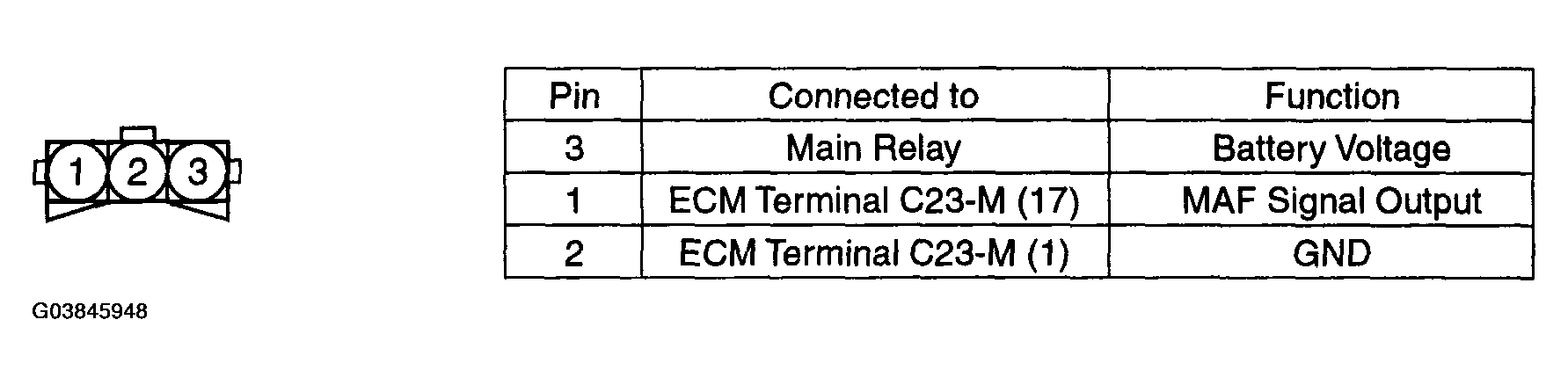

[HARNESS CONNECTOR]
[CHARACTERISTIC OF MAF]
MAF SENSOR SPECIFICATIONS
| Item | Specification |
|---|---|
| Supply Voltage | 7.5 ~ 16 V |
| Operating Temperature Range | -40 °C ~ 125°C |
| Range of Air Flow | 7 ~ 640 kg/h |
| Output Voltage | 0 ~ 5 V |
| Idle: 0.5 V | |
| 2000 RPM: 1.0 V |
[OUTPUT VOLTAGE OF MAF]
MAF SENSOR SPECIFICATIONS
| Output Voltage (V) | Intake Air Quantity (kg/h) | Output Voltage (V) | Intake Air Quantity (kg/h) |
|---|---|---|---|
| 0.3 | 7.34 | 3.0 | 149.07 |
| 0.5 | 10.06 | 3.5 | 226.66 |
| 1.0 | 19.85 | 4.0 | 335.66 |
| 1.50 | 35.58 | 4.5 | 500.16 |
| 2.0 | 58.79 | 4.76 | 614.61 |
| 2.5 | 94.70 | 5.00 | 730.01 |
