Without TCU (Vehicle With Manual Transaxle)

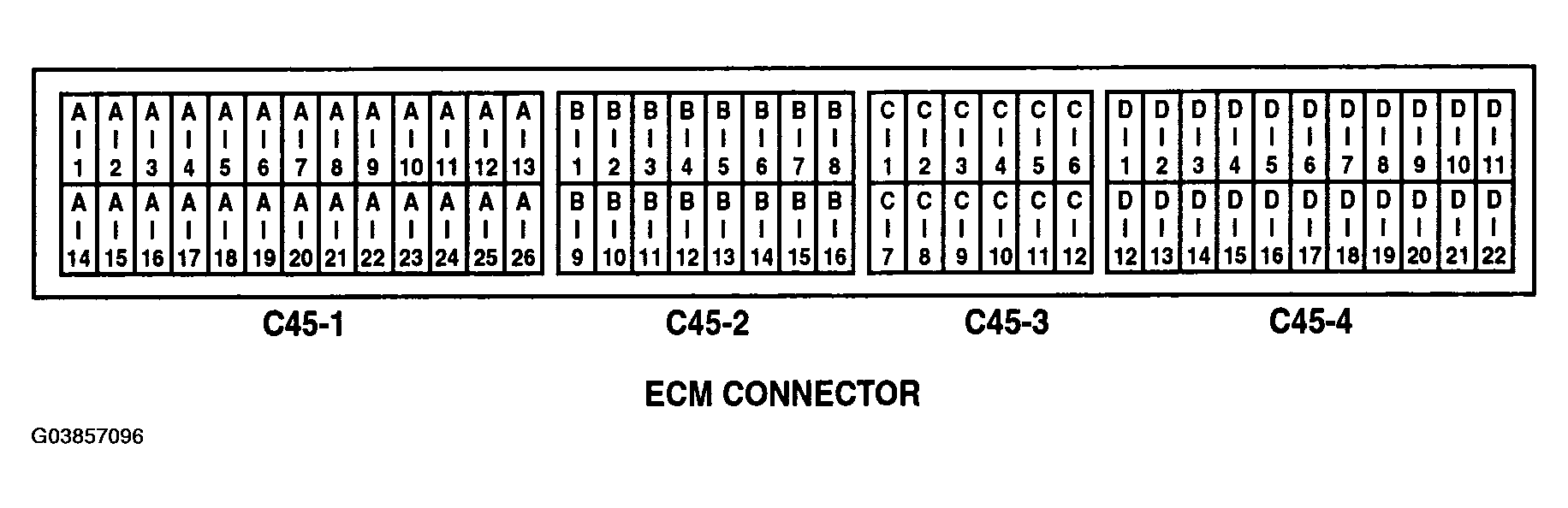

CONNECTOR [C45-1]
CONNECTOR TERMINAL REFERENCE (CONNECTOR [C45-1])
| TERMINAL | SIGNAL | CONNECTED TO | ||
|---|---|---|---|---|
| 1 | Injector 1 Control | Injector 1 | ||
| 2 | Injector 3 Control | Injector 2 | ||
| 3 | - | - | ||
| 4 | Idle Speed Control Opening Coil Control | Idle Speed Control Actuator (ISA) | ||
| 5 | - | - | ||
| 6 | EGR Solenoid Valve Control | EGR Solenoid Valve | ||
| 7 | - | - | ||
| 8 | Fuel Pump Relay Control (A/C Relay Control)(1) | Fuel Pump Relay (A/C Relay)(1) | ||
| 9 | Evaporative Purge Solenoid Valve Control | PCSV | ||
| 10 | Ignition Coil 1 (1 4) Control | Ignition Coil 1 | ||
| 11 | - | - | ||
| 12 | Battery Voltage | Main Relay | ||
| 13 | Power Ground | Chassis Ground | ||
| 14 | Injector 2 Control | Injector 2 | ||
| 15 | Injector 4 Control | Injector 4 | ||
| 16 | - | - | ||
| 17 | Idle Speed Control Closing Coil Control | Idle Speed Control Actuator (ISA) | ||
| 18 | - | - | ||
| 19 | - | - | ||
| 20 | Cooling Fan Relay High Control | Fan Relay High | ||
| 21 | Cooling Fan Relay Low Control | Fan Relay Low | ||
| 22 | A/C Relay Control (Fuel Pump Relay Control)(1) | A/C Relay (Fuel Pump Relay)(1) | ||
| 23 | Ignition Coil 2 (2 3) Control | Ignition Coil 2 | ||
| 24 | - | - | ||
| 25 | Battery Voltage | Main Relay | ||
| 26 | Power Ground | Chassis Ground | ||
|
||||
CONNECTOR [C45-2]
CONNECTOR TERMINAL REFERENCE (CONNECTOR [C45-2])
| TERMINAL | SIGNAL | CONNECTED TO |
|---|---|---|
| 1 | - | - |
| 2 | - | - |
| 3 | Alternator Terminal "G" | Alternator |
| 4 | Throttle Position Signal Input (PWM) | - |
| 5 | - | - |
| 6 | MIL Control | MIL |
| 7 | Power Steering Switch Input | Power Steering Switch |
| 8 | Control Relay Control | Main Relay |
| 9 | - | - |
| 10 | - | - |
| 11 | Alternator Terminal "FR" | Alternator |
| 12 | A/C Pressure Switch Signal Input 1 | A/C Pressure Switch |
| 13 | - | - |
| 14 | - | - |
| 15 | A/C Pressure Switch Signal Input 2 | A/C Pressure Switch |
| 16 | - | - |
CONNECTOR [C45-3]
CONNECTOR TERMINAL REFERENCE (CONNECTOR [C45-3])
| TERMINAL | SIGNAL | CONNECTED TO |
|---|---|---|
| 1 | - | - |
| 2 | Spark Timing Adjustment (+) | Diagnosis Connector (20 pin) |
| 3 | - | - |
| 4 | Rear HO2S Heater Control | Rear HO2S |
| 5 | Canister Close Valve (CCV) Control | CCV |
| 6 | - | - |
| 7 | - | - |
| 8 | Ignition Failure Sensor (IFS) Signal Input | IFS |
| 9 | - | - |
| 10 | Front HO2S Heater Control | Front HO2S |
| 11 | Fuel Tank Pressure Sensor (FTPS) Signal Input | FTPS |
| 12 | Diagnosis K-Line | Diagnosis Connector (20 pin, 16 pin) |
CONNECTOR [C45-4]
CONNECTOR TERMINAL REFERENCE (CONNECTOR [C45-4])
| TERMINAL | SIGNAL | CONNECTED TO |
|---|---|---|
| 1 | Starter "ST" Signal Input | Starter |
| 2 | Intake Air Temperature Sensor (ATS) | ATS |
| 3 | Manifold Absolute Pressure (MAP) Sensor Signal Input | MAP Sensor |
| 4 | Fuel Level Sensor (FLS) Input | Fuel Level Sensor (FLS) |
| 5 | Rear HO2S Signal Input | Rear HO2S |
| 6 | Front HO2S Signal Input | Front HO2S |
| 7 | Fuel Temperature Sensor (FTS) Signal Input | Fuel Temperature Sensor (FTS) |
| 8 | Knock Sensor Signal Input | Knock Sensor |
| 9 | Flash EP-ROM Battery | Diagnosis Connector (20 pin) |
| 10 | Battery Back Up | Main Relay |
| 11 | Sensor Reference Voltage (+5V) | FTPS, MAP, AFS, TPS |
| 12 | Ignition Switch | Ignition Switch |
| 13 | Engine coolant Temperature Sensor (ECTS) Signal Input | ECTS |
| 14 | Throttle Position Sensor (TPS) Signal Input | TPS |
| 15 | Mass Air Flow (MAF) Sensor Signal Input | Air Flow Sensor (AFS) |
| 16 | Vehicle Speed Sensor (VSS) Signal Input | VSS |
| 17 | - | - |
| 18 | Camshaft Position (TCD) Sensor Signal Input | TDC Sensor |
| 19 | Crankshaft Position (CKP) Sensor Signal Input | CKP Sensor |
| 20 | - | - |
| 21 | Neutral (N") Switch | Chassis ground |
| 22 | Sensor Ground | HO2S, FTPS, ECTS, MAP AFS, TPS |
