Ignition Failure Sensor (Ifs)

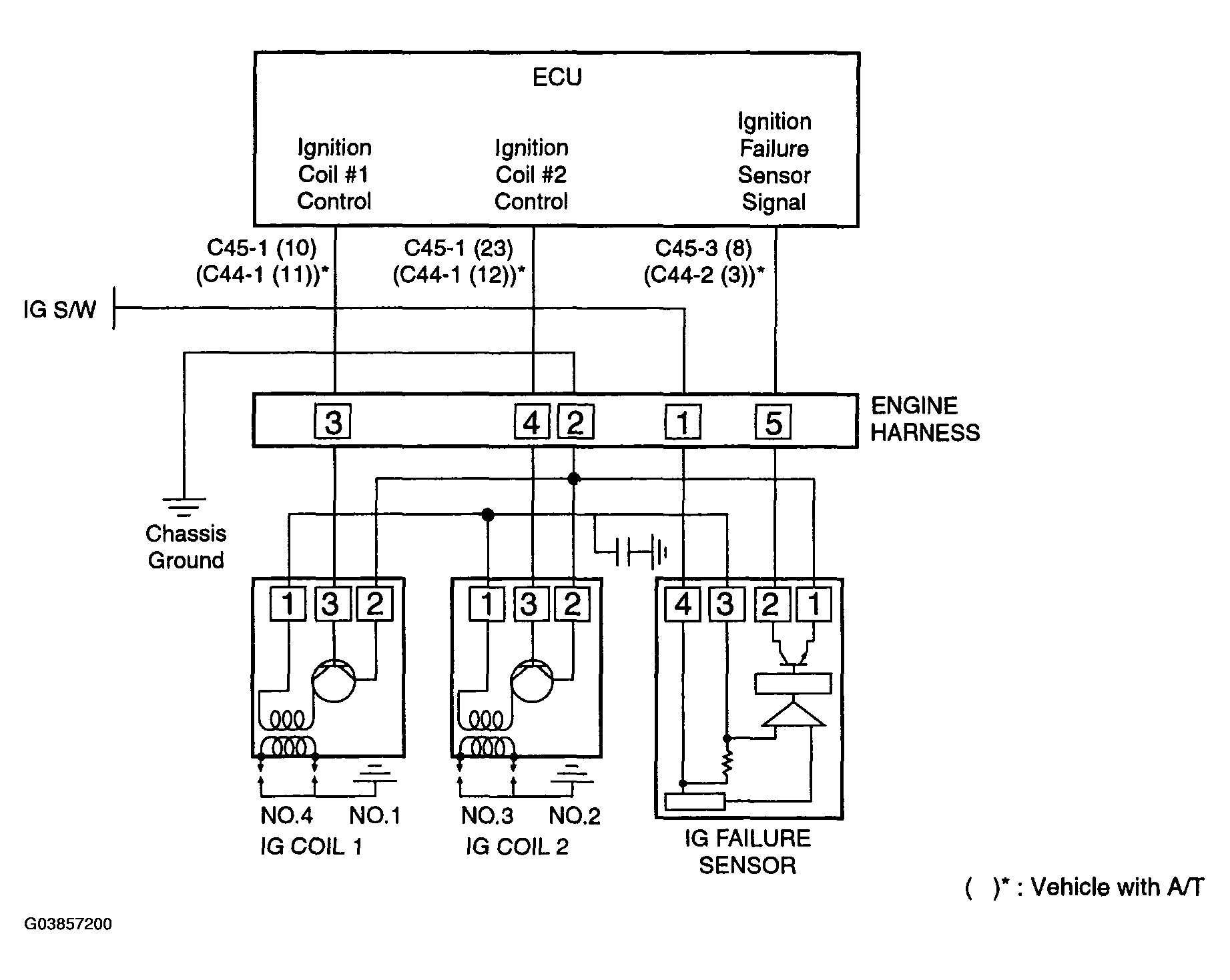

Fig 1: Circuit Diagram - Ignition Failure Sensor
G03857200Courtesy of HYUNDAI MOTOR CO.

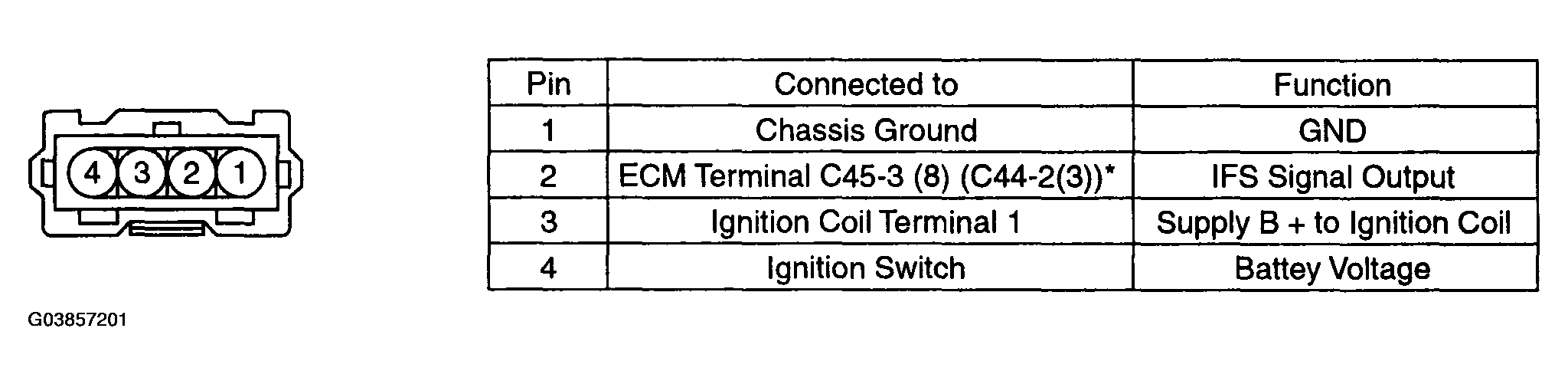

Fig 2: Identifying Harness Connector Terminal Of Ignition Failure Sensor
G03857201Courtesy of HYUNDAI MOTOR CO.
