Fuel Injector: Notes

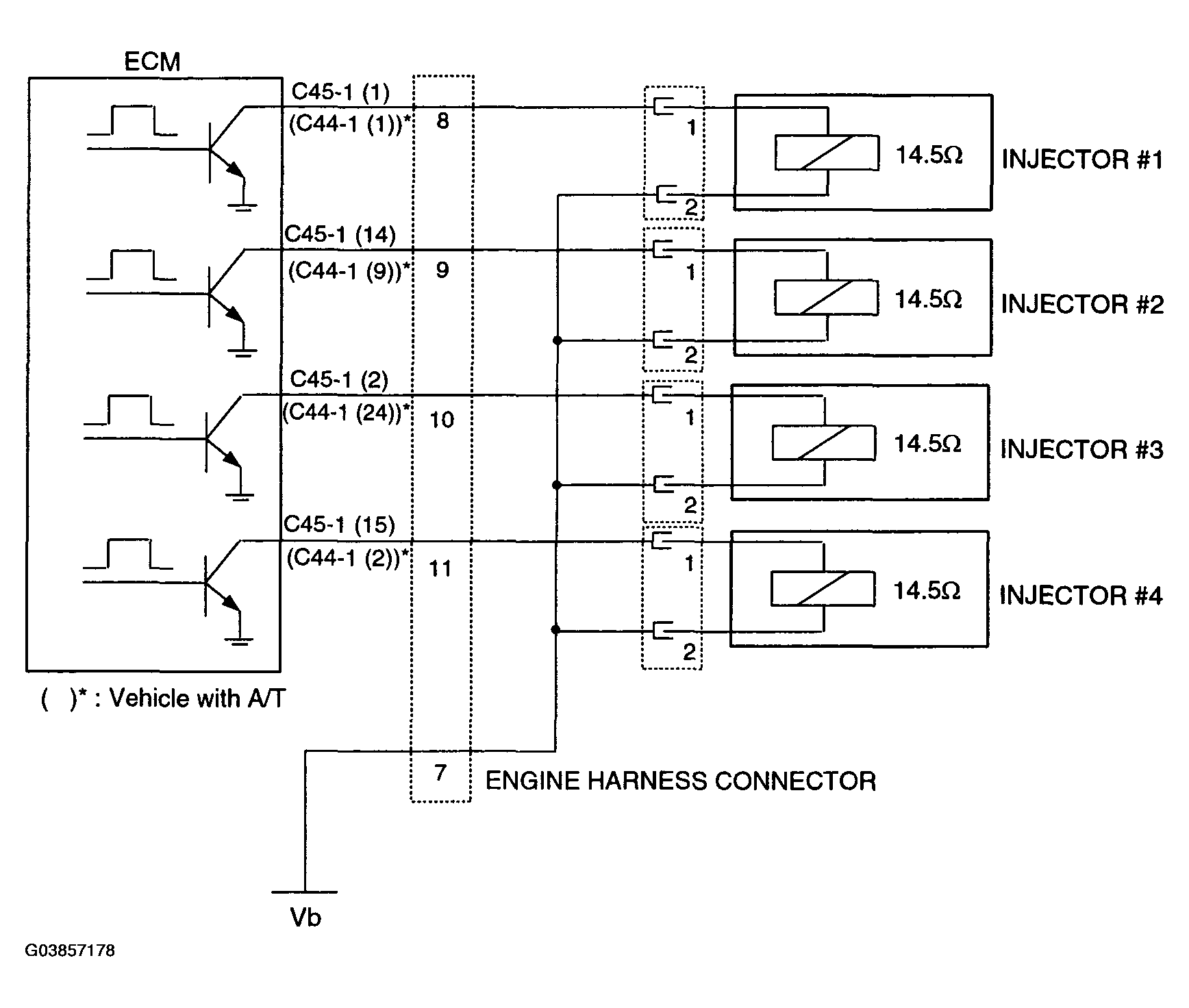

The injectors inject fuel to cylinders according to the signal, suitable to engine condition, from ECM. The ECM drives the injectors by electric current driving mode.
The basic fuel amount is performed by the mapping value based on the air amount and engine rate, and the fuel amount is corrected in the case of fuel amount correction (Air-fuel ratio control signal, fuel evaporative emission gas control, learning increase of the fuel amount, warm-up control, catalytic heating control, fuel amount control in deceleration, idle control, fuel amount increase in full load, fuel increase in acceleration and restarting).
The fuel injection is controlled under unavailable state for safety purpose when engine RPM reaches the appropriate engine speed.
