Knock Sensor: Notes

The knock sensor is a piezoelectric device attached to the cylinder block that senses pressure from engine knock conditions. This vibrational pressure is then converted into a voltage signal which is delivered as output. If engine knock occurs, ignition timing is retarded to suppress it.

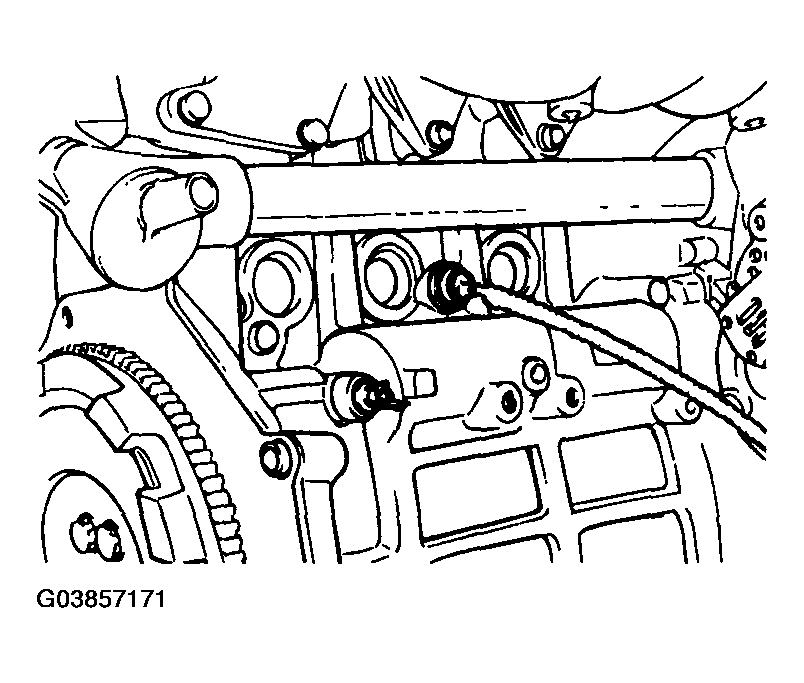

Fig 1: Locating Knock Sensor (KS)

Courtesy of HYUNDAI MOTOR CO.

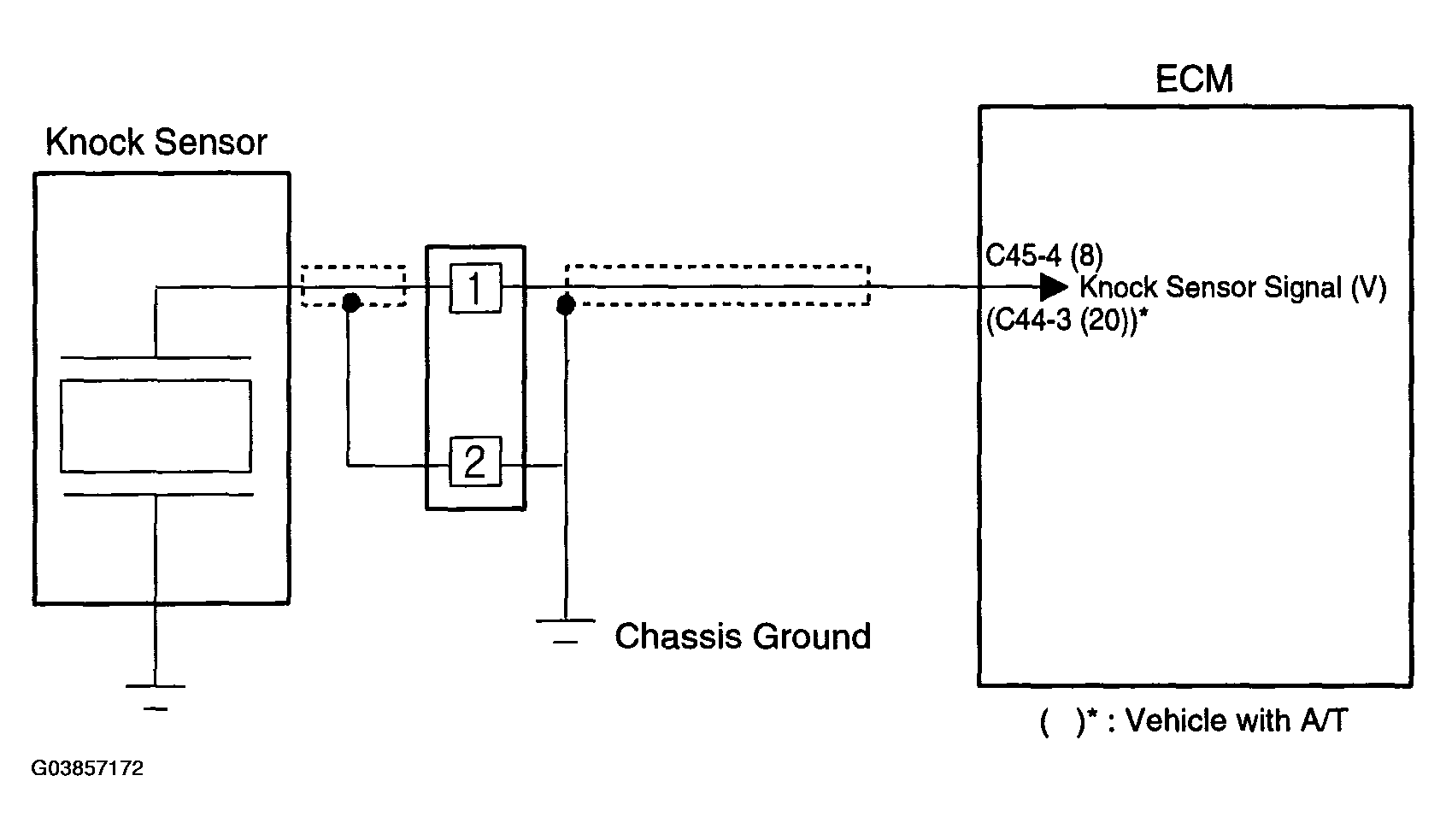

Fig 2: Circuit Diagram - Knock Sensor (KS)

Courtesy of HYUNDAI MOTOR CO.

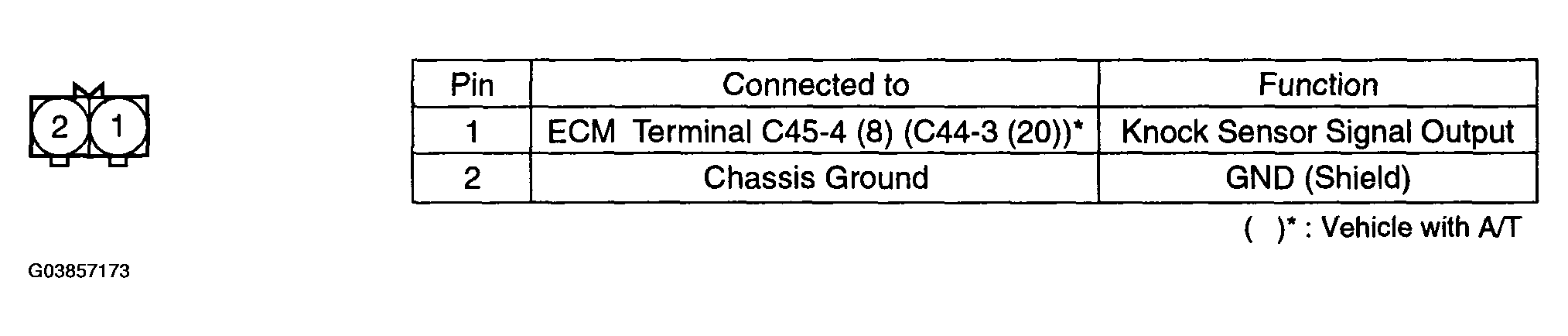

Fig 3: Identifying Harness Connector Of Knock Sensor (KS)

Courtesy of HYUNDAI MOTOR CO.
