Knock Sensor
>>
Troubleshooting Procedures
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Troubleshooting Procedures

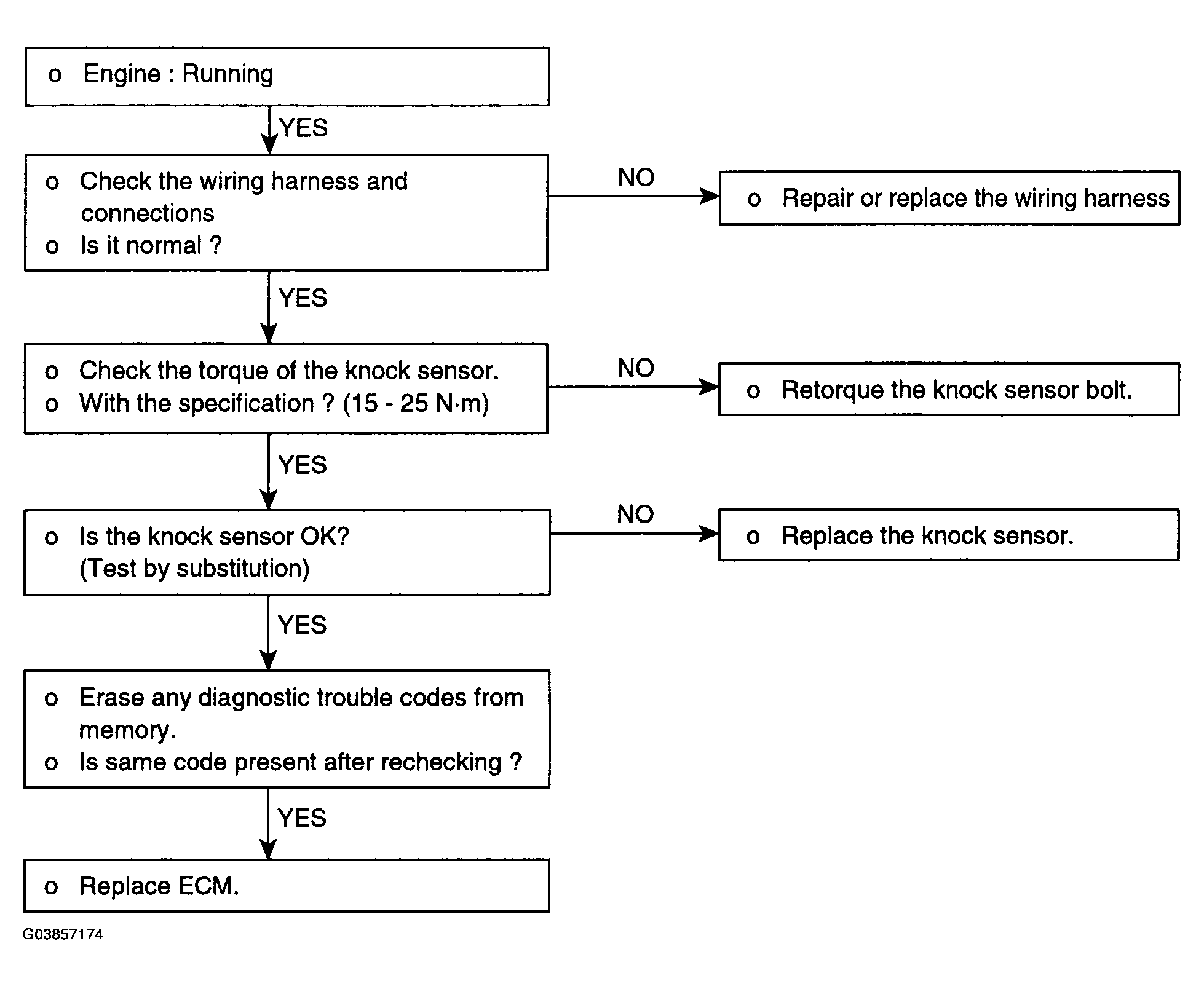

Fig 1: Flow Chart Of Troubleshooting Procedures
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
