Special Service Tools

SPECIAL SERVICE TOOLS

Tool (Number and name) Illustration Application
09353-24100 Fuel Pressure Gauge
G03857073Courtesy of HYUNDAI MOTOR CO.
 Measuring the fuel line pressure

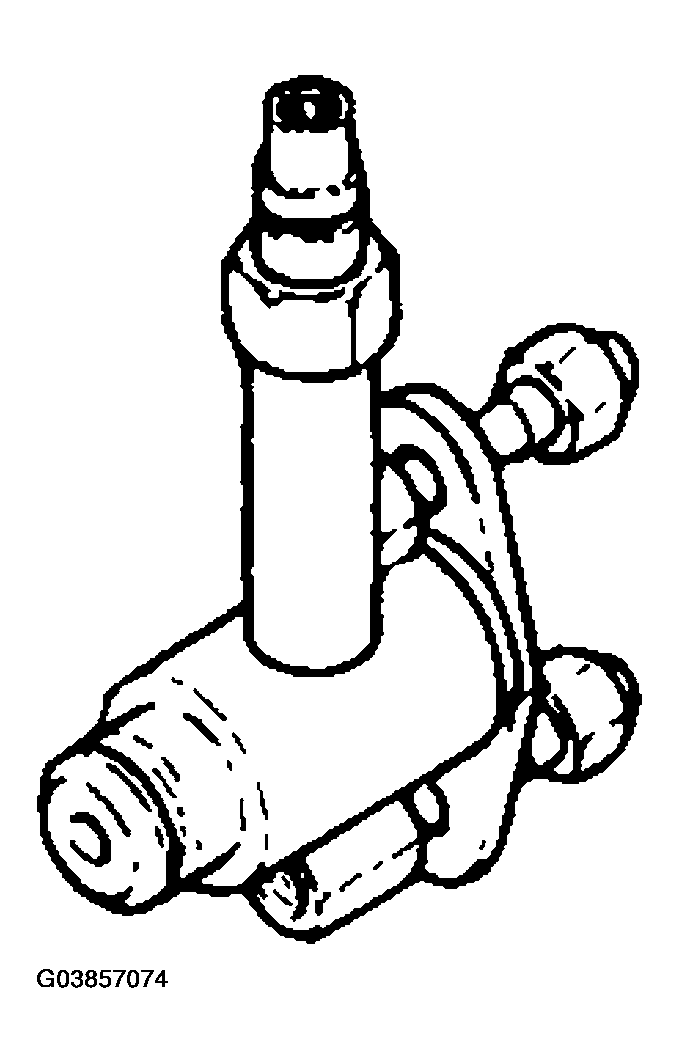

09353-38000 Fuel Pressure Gauge Adapter
G03857074Courtesy of HYUNDAI MOTOR CO.
 Connection between the delivery pipe and fuel feed line
09353-24000 Fuel Pressure Gauge Connector
G03857075Courtesy of HYUNDAI MOTOR CO.
 Connection between Fuel Pressure Gauge (09353-24100) and Fuel Pressure Gauge Adapter (09353-38000)
