Engine Control Module
ECM HARNESS CONNECTOR

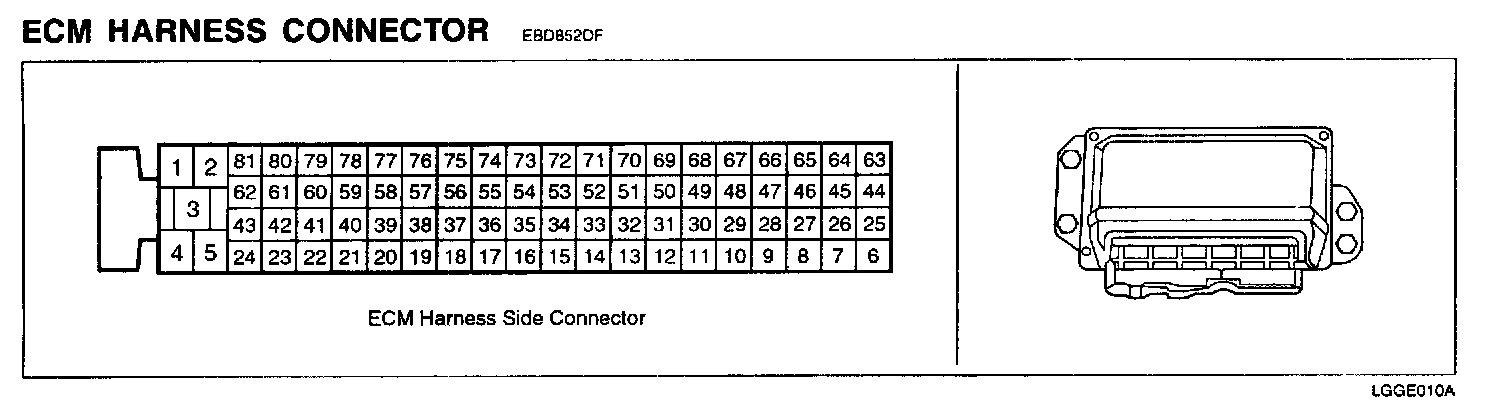

Connector View:
ECM TERMINAL FUNCTION

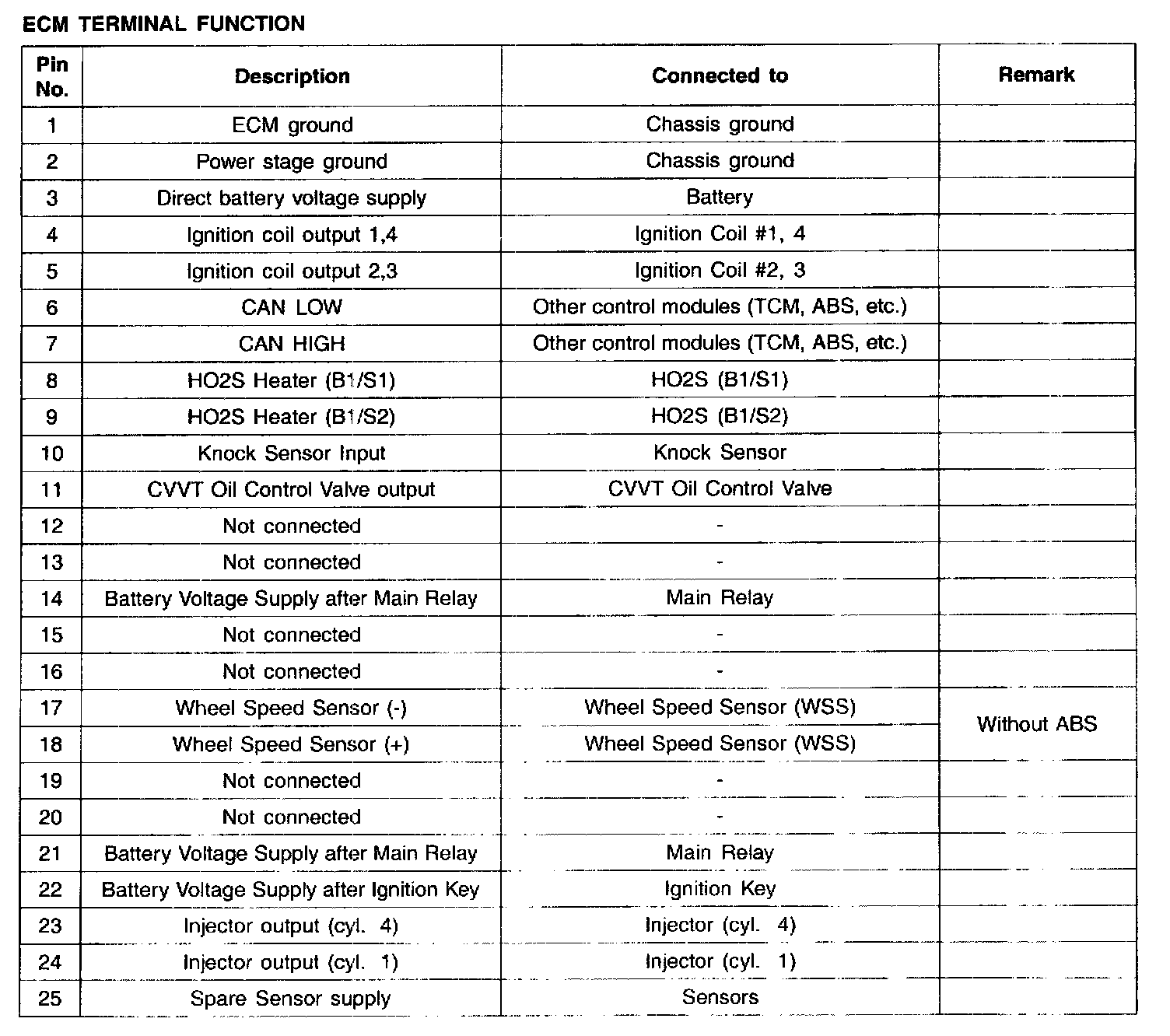

Pin No. 1-25:

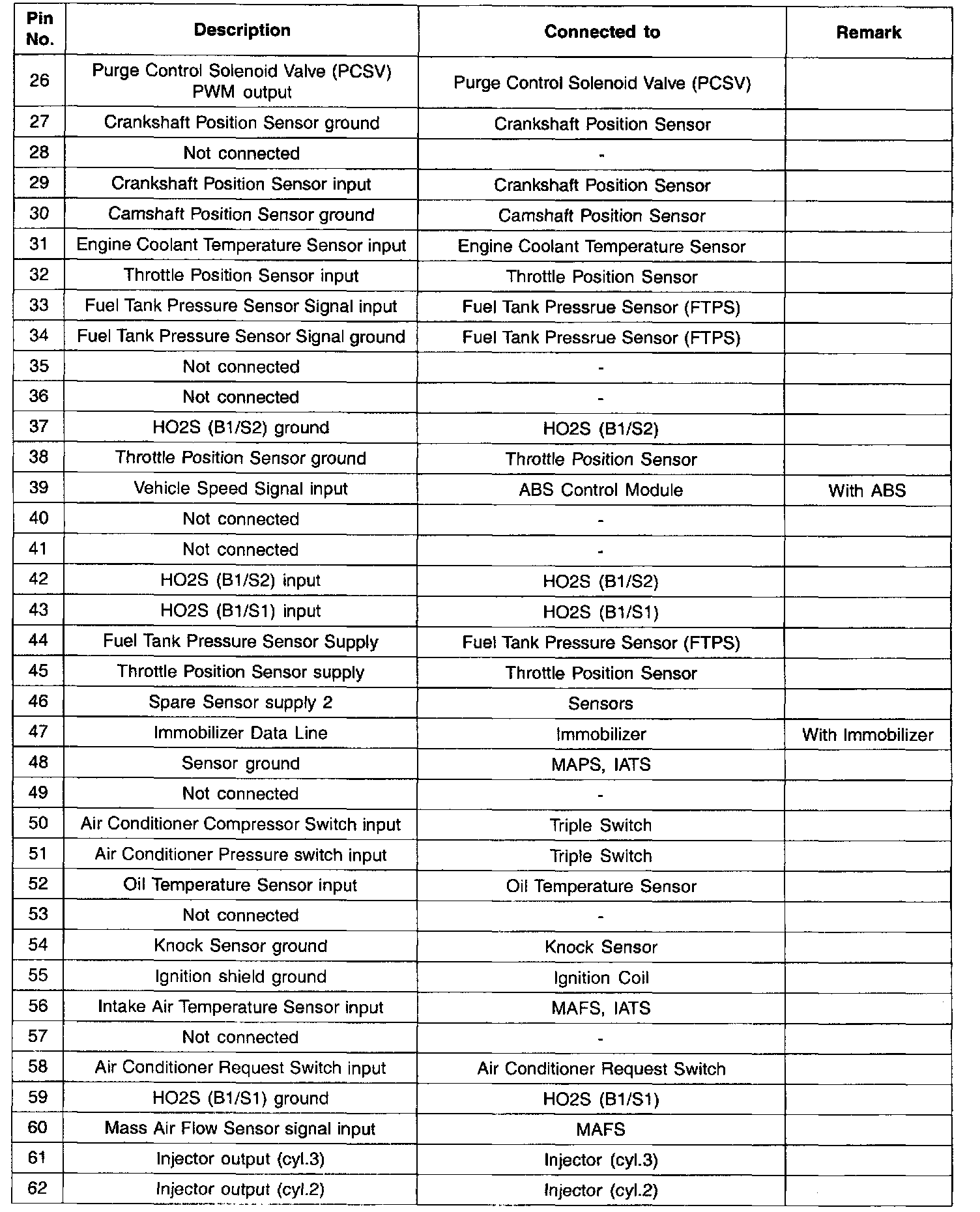

Pin No. 26-62:

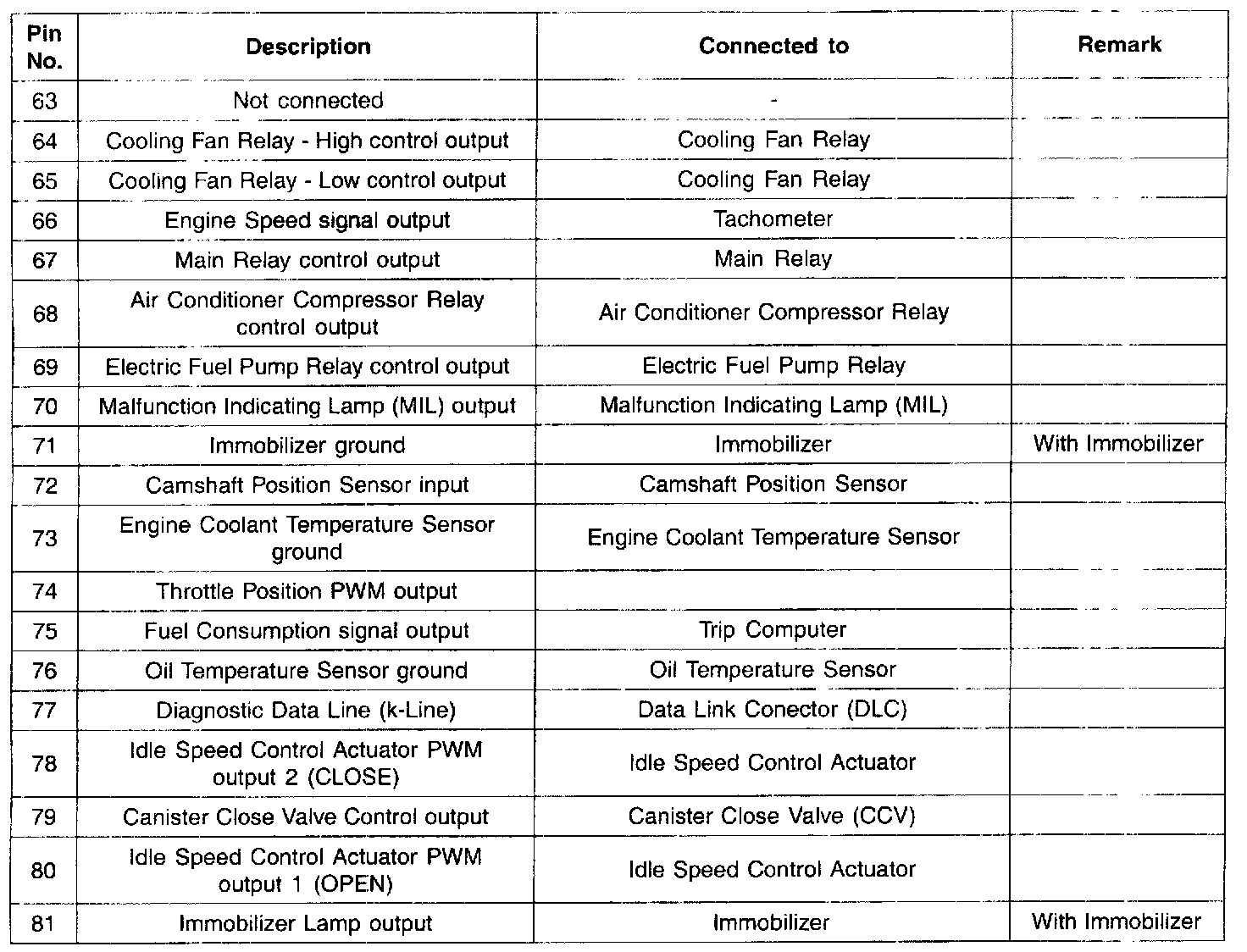

Pin No. 63-81:
