Cruise Control Switch Test

Disconnect the battery negative cable, then disconnect the positive cable, and wait at least three minutes.
Remove the driver's airbag (See AIR BAG MODULE (DRIVE SIDE) ).
Disconnect the control switch connector.

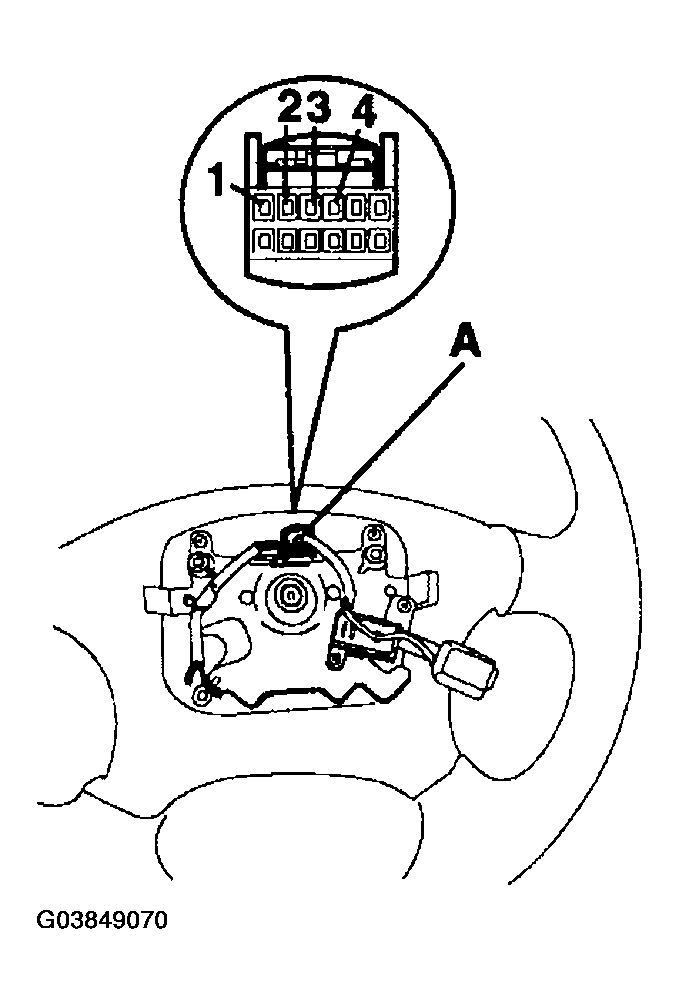

Fig 1: Disconnecting Control Switch Connector
Courtesy of HYUNDAI MOTOR CO.
Check the continuity between the terminals of the connector in each switch position according to the table.
- If there is continuity, and it matches the table, the switch is O.K.
- If there is no continuity, replace the control switch.

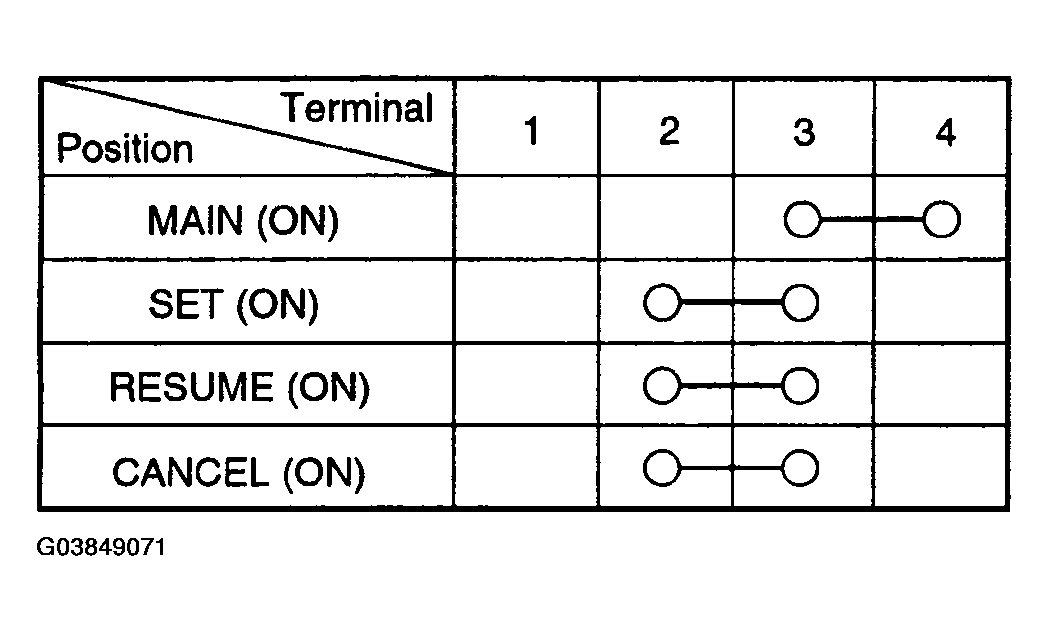

Fig 2: Continuity Condition Chart
Courtesy of HYUNDAI MOTOR CO.

Fig 3: Circuit Diagram Control Switch
Courtesy of HYUNDAI MOTOR CO.
