Output Characteristic

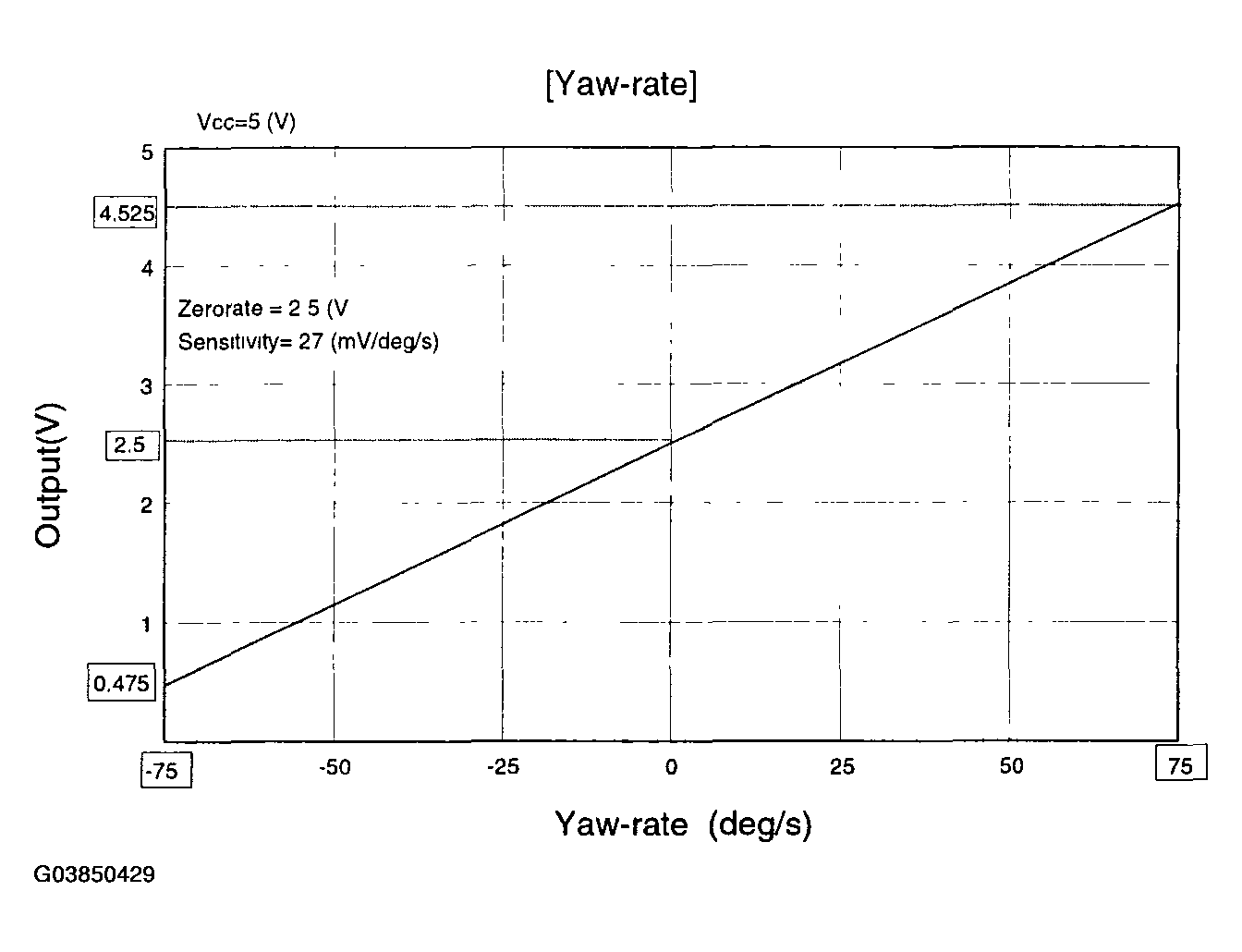

Fig 1: Identifying Output Characteristic Graph (1 Of 2)
G03850429Courtesy of HYUNDAI MOTOR CO.

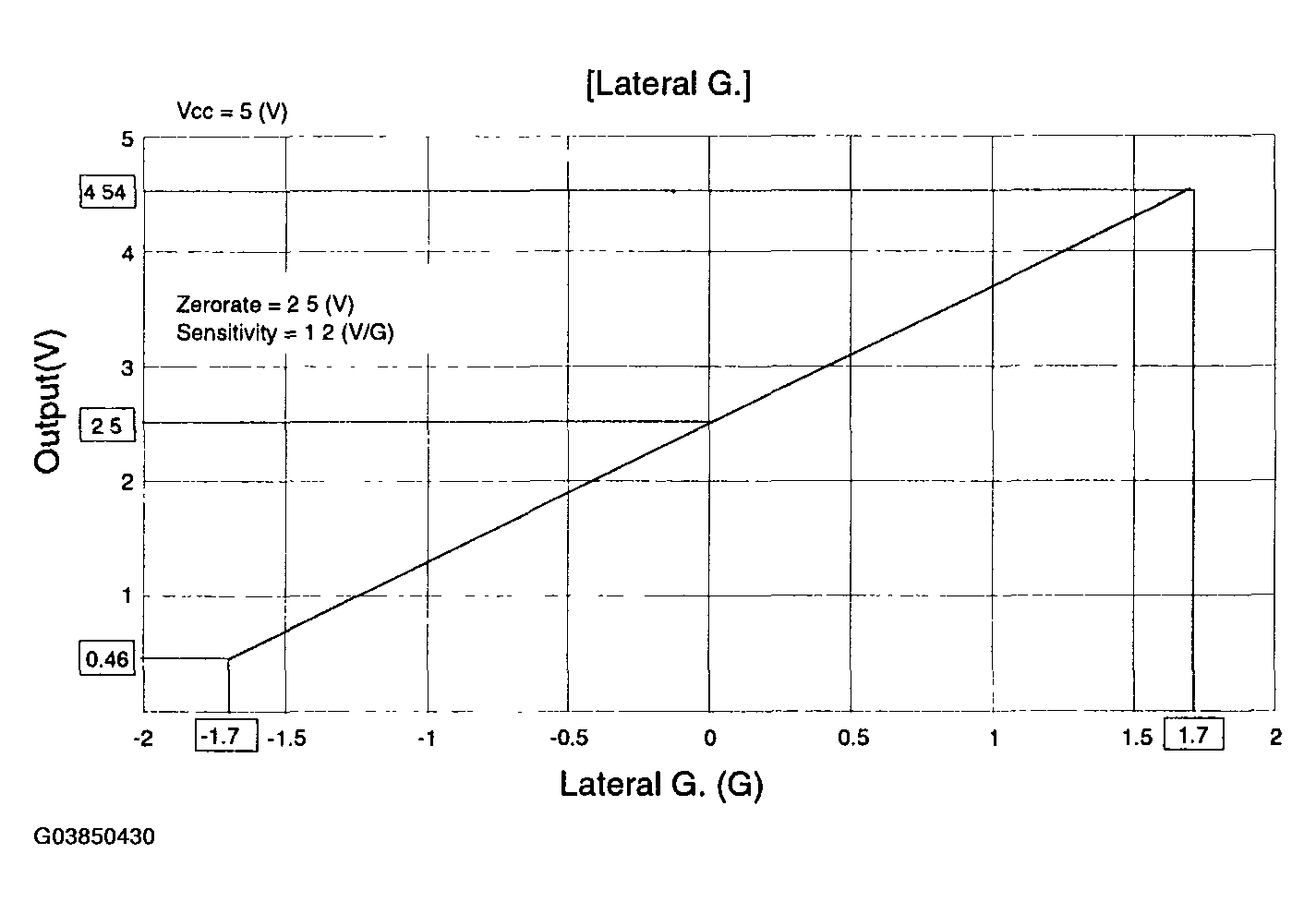

Fig 2: Identifying Output Characteristic Graph (2 Of 2)
G03850430Courtesy of HYUNDAI MOTOR CO.
