Connector Views

ECM HARNESS CONNECTOR

Connector View:

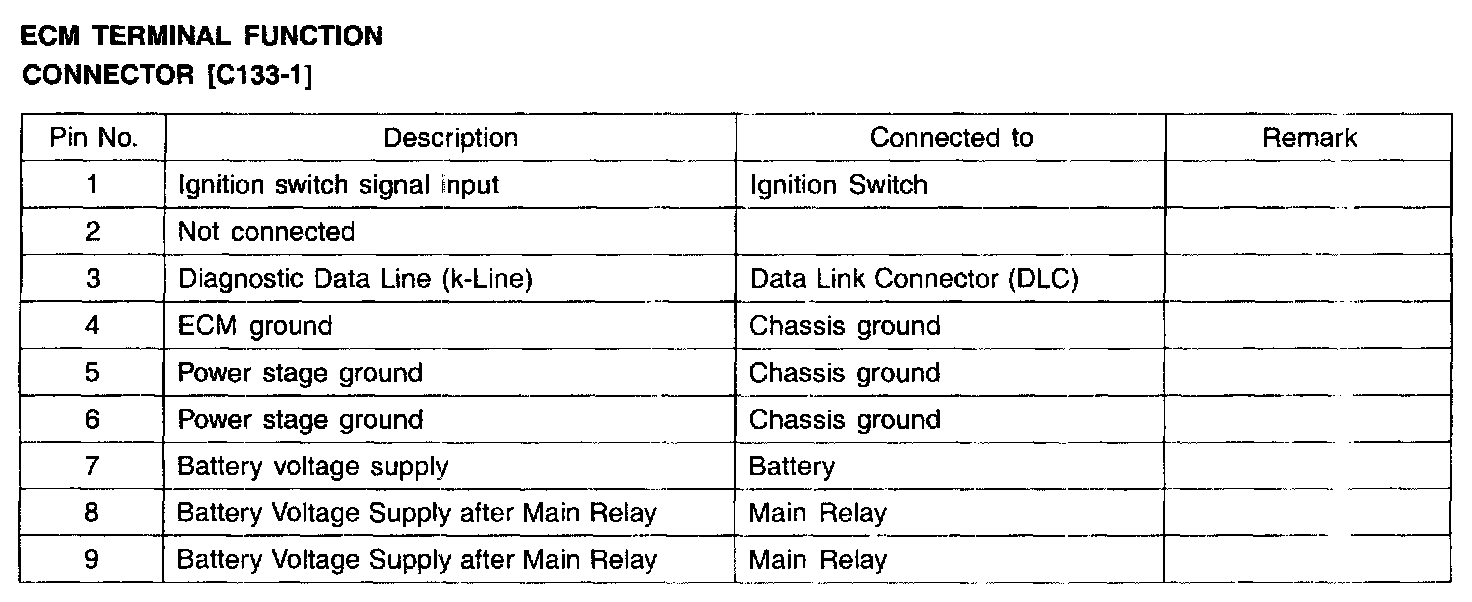

ECM TERMINAL FUNCTION

Connector (C133-1)

Pin No: 1-9:

Connector (C133-2)

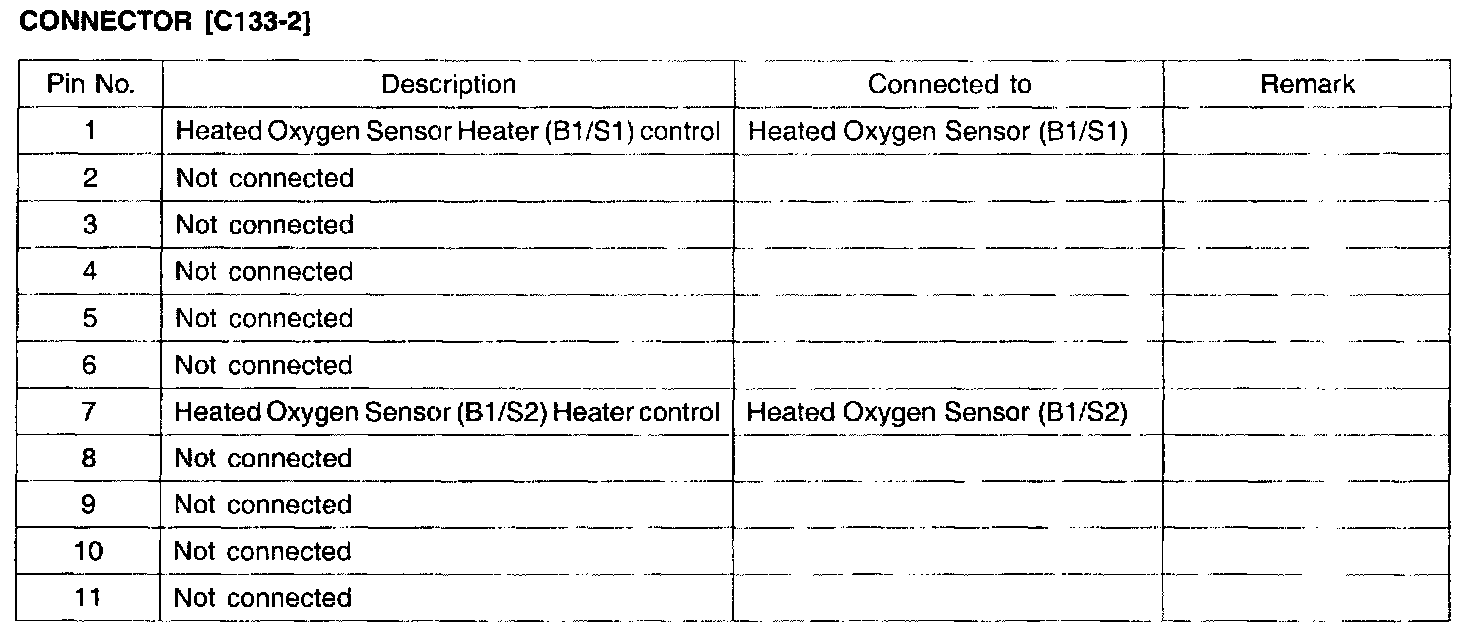

Pin No: 1-11:

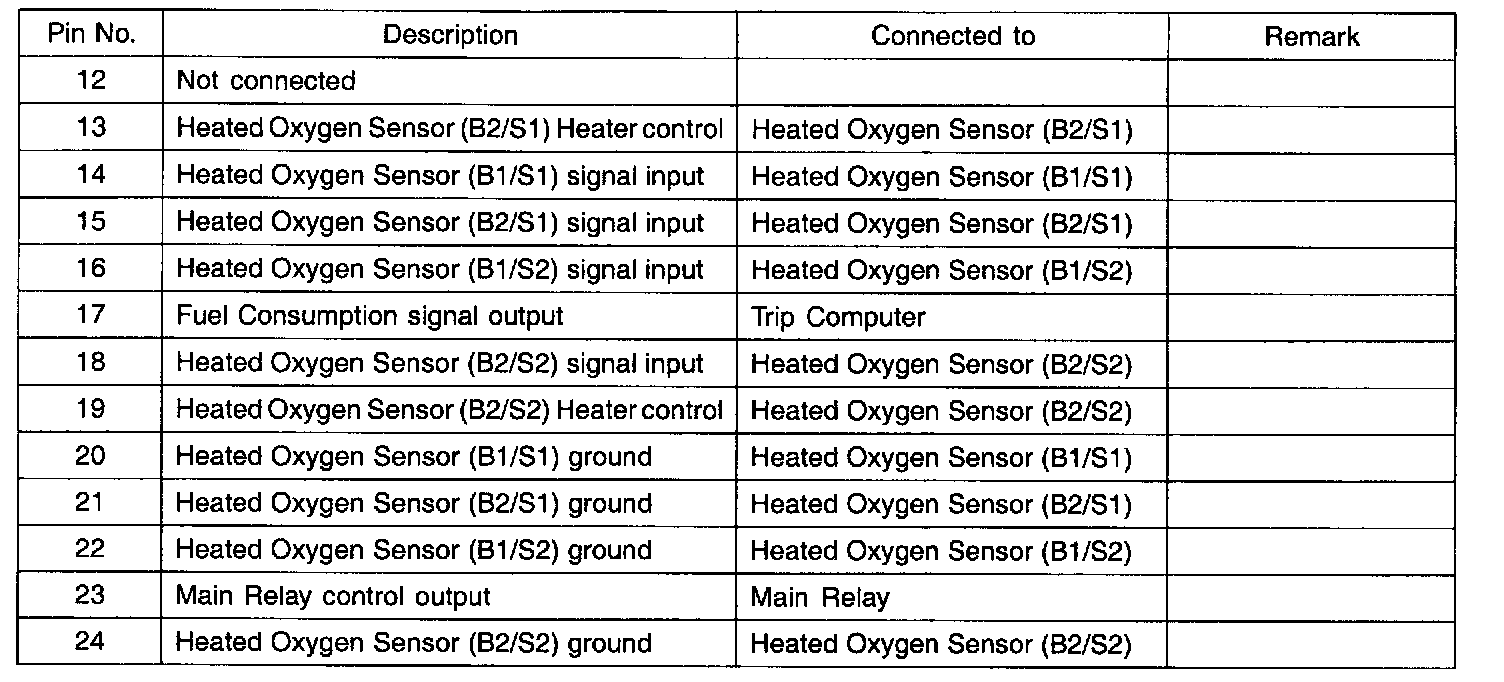

Pin No: 12-24:

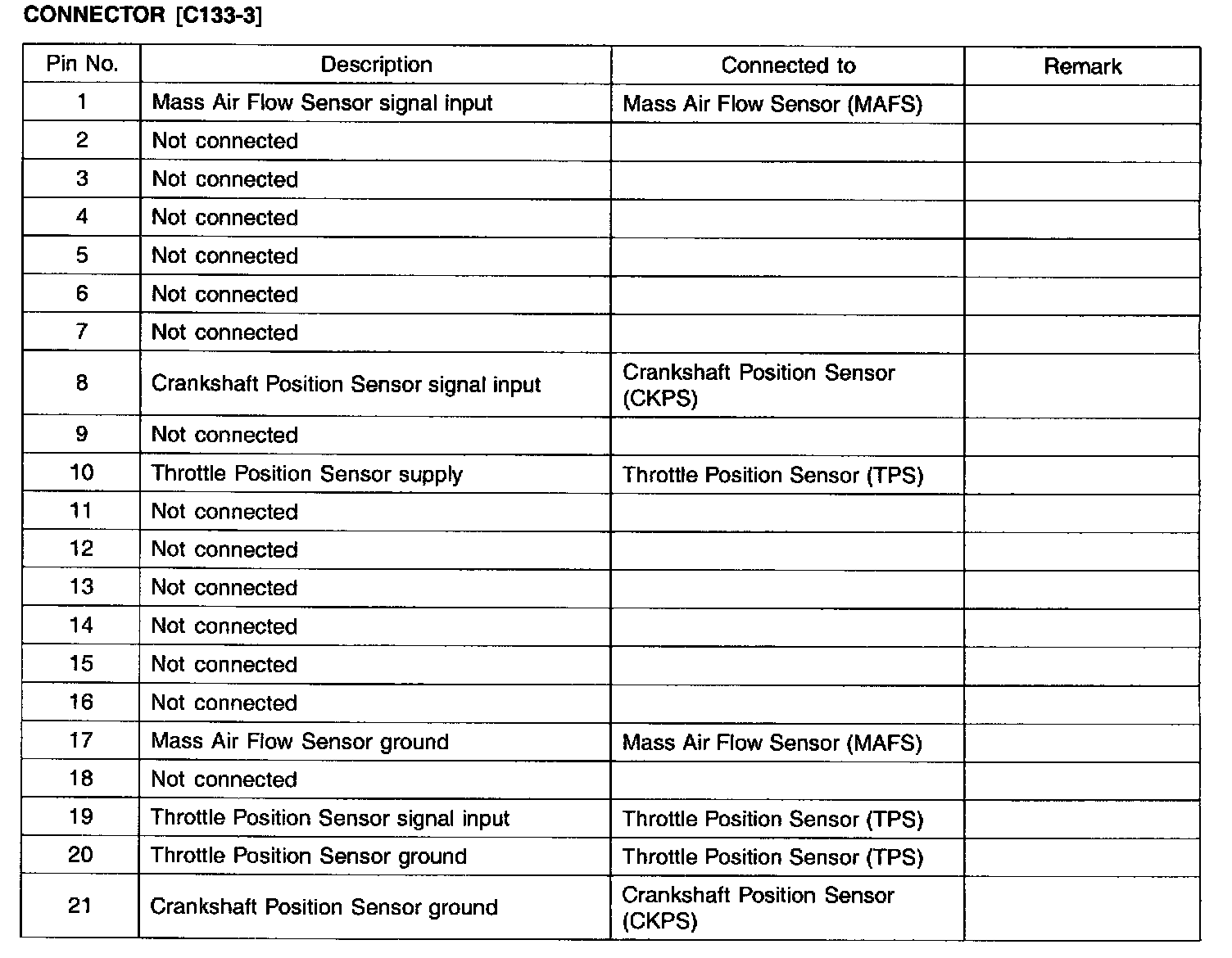

Connector (C133-3)

Pin No: 1-21:

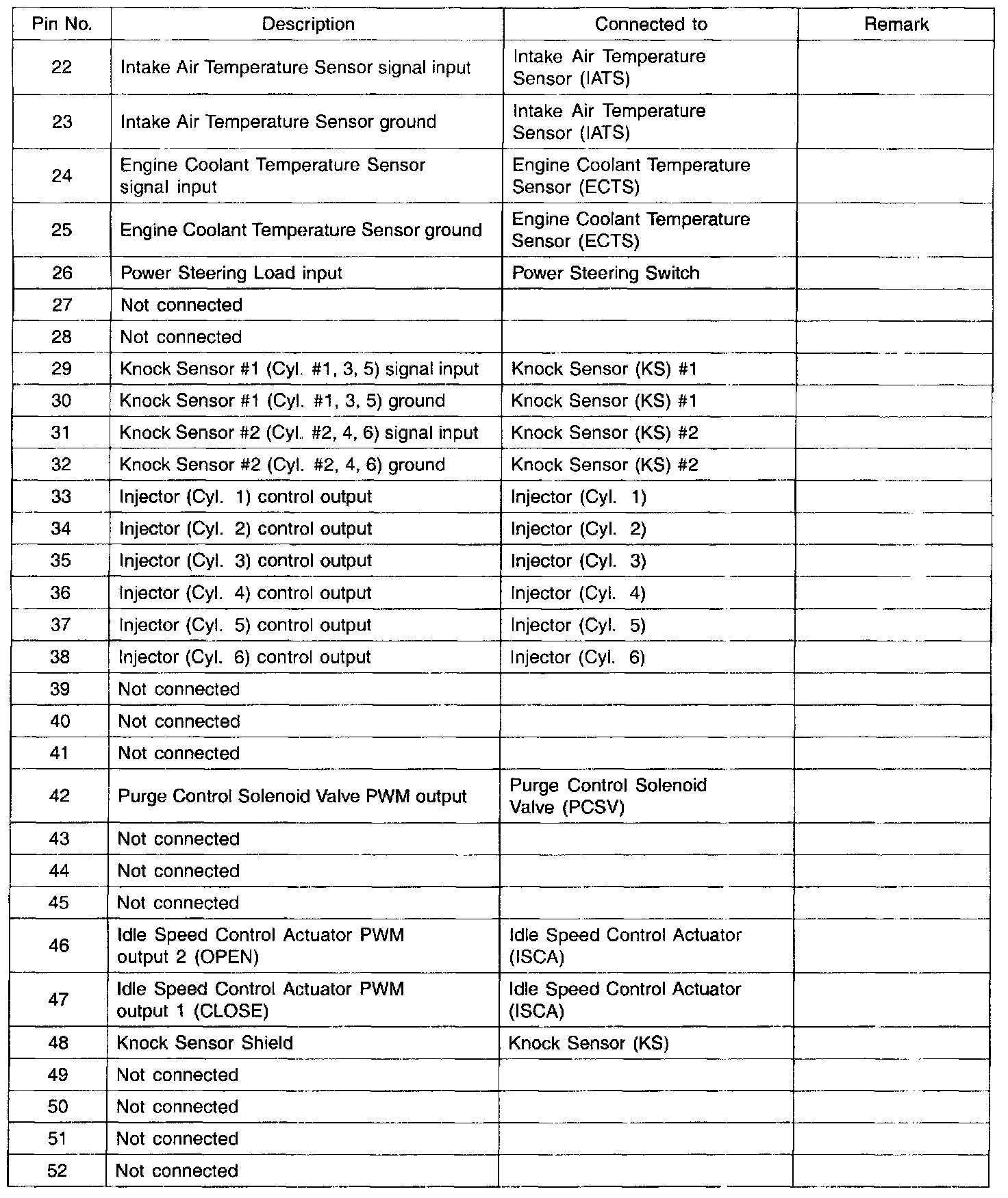

Pin No: 22-52:

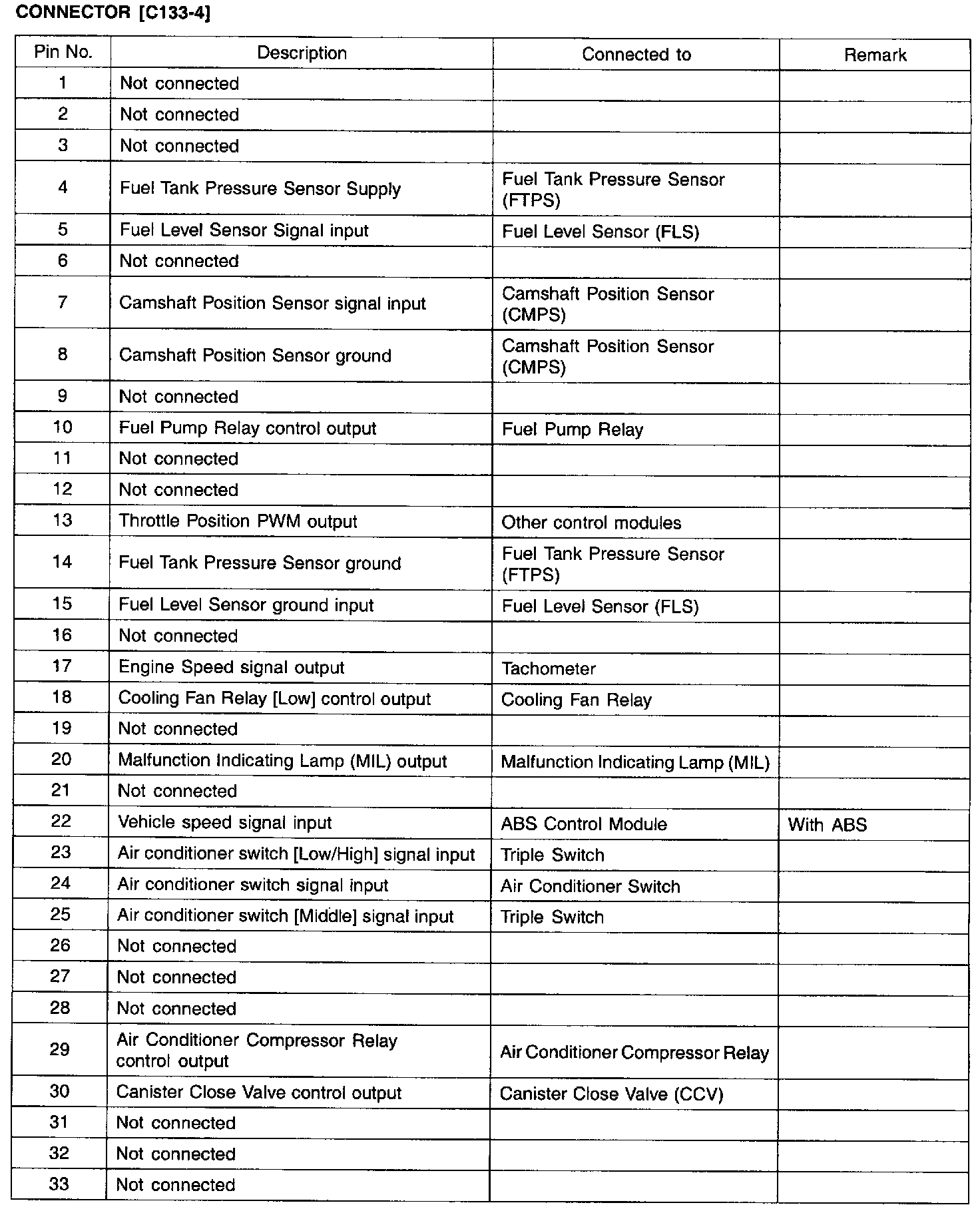

Connector (C133-4)

Pin No: 1-33:

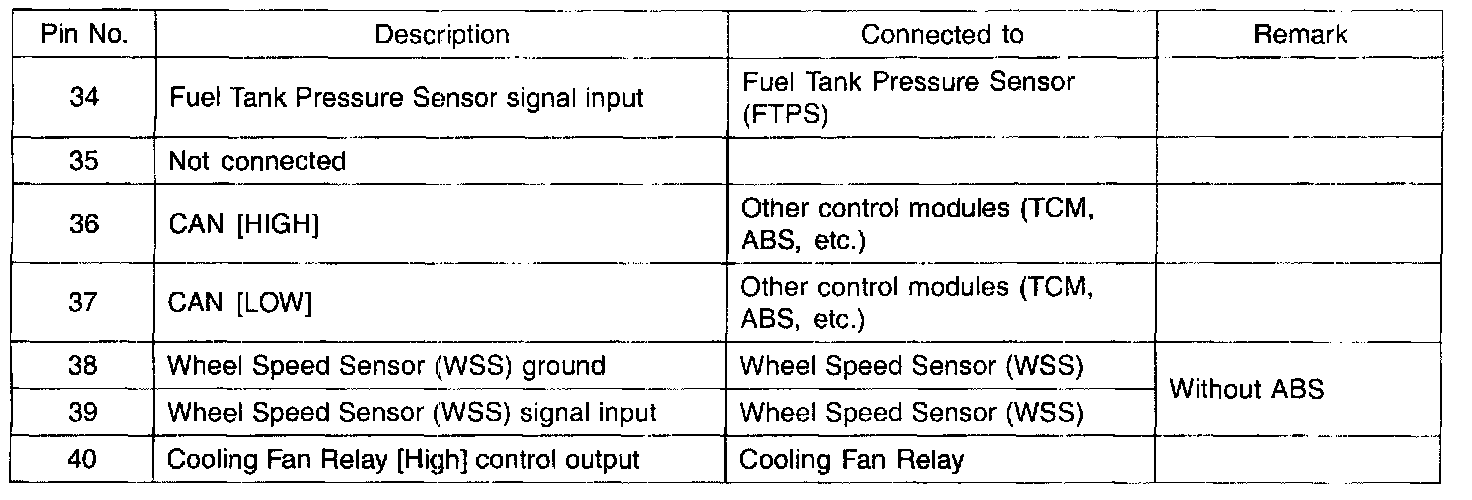

Pin No: 34-40:

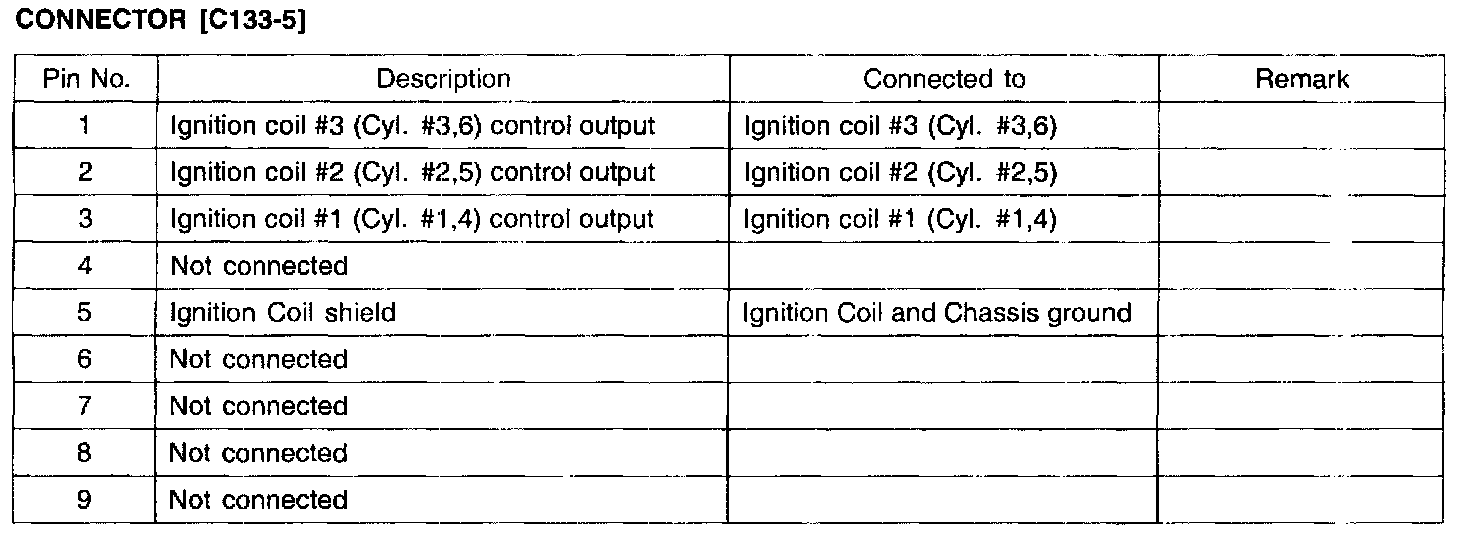

Connector (C133-5)

Pin No: 1-9:
