Output Characteristic

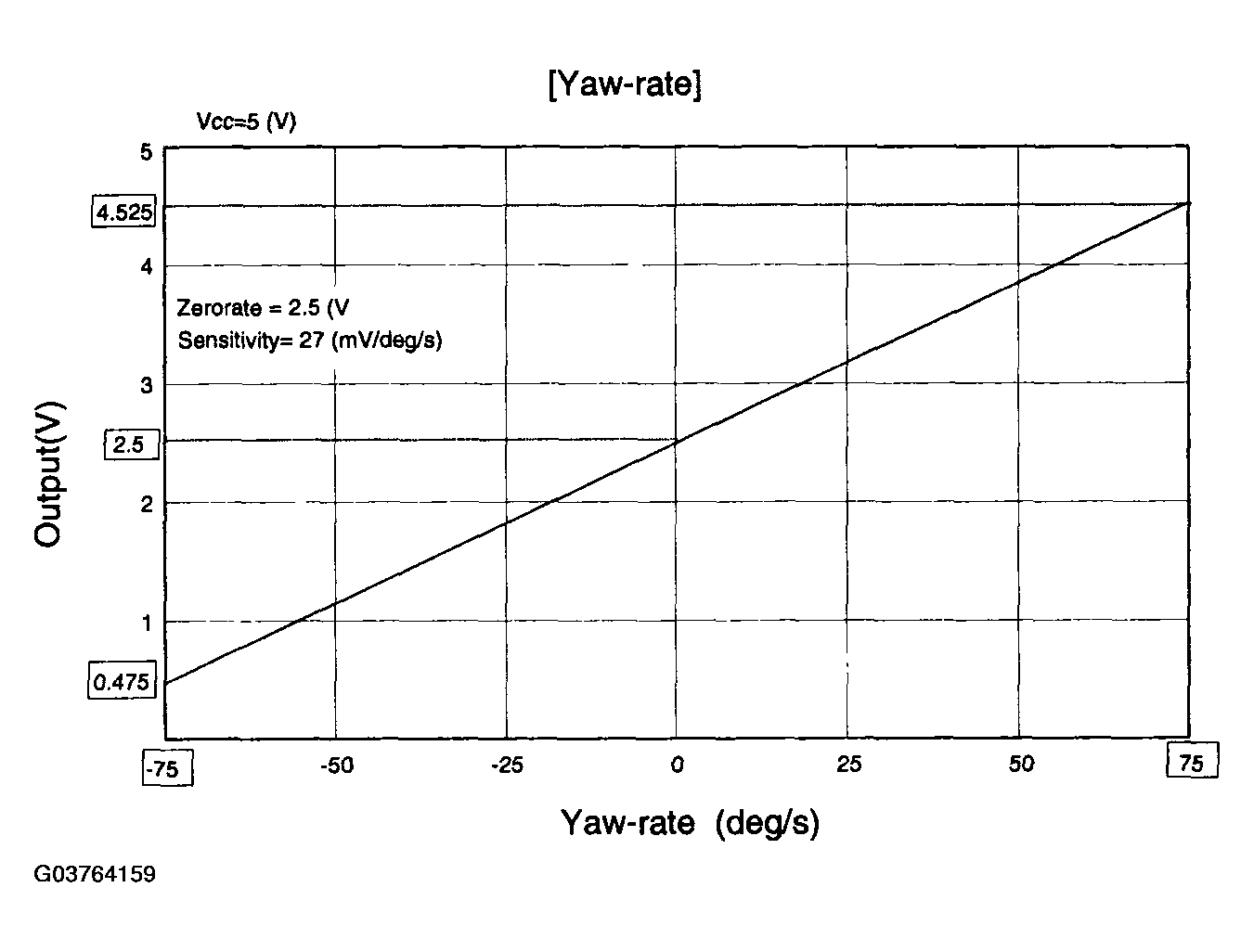

Fig 1: Output Graph (1 Of 2)
G03764159Courtesy of HYUNDAI MOTOR CO.

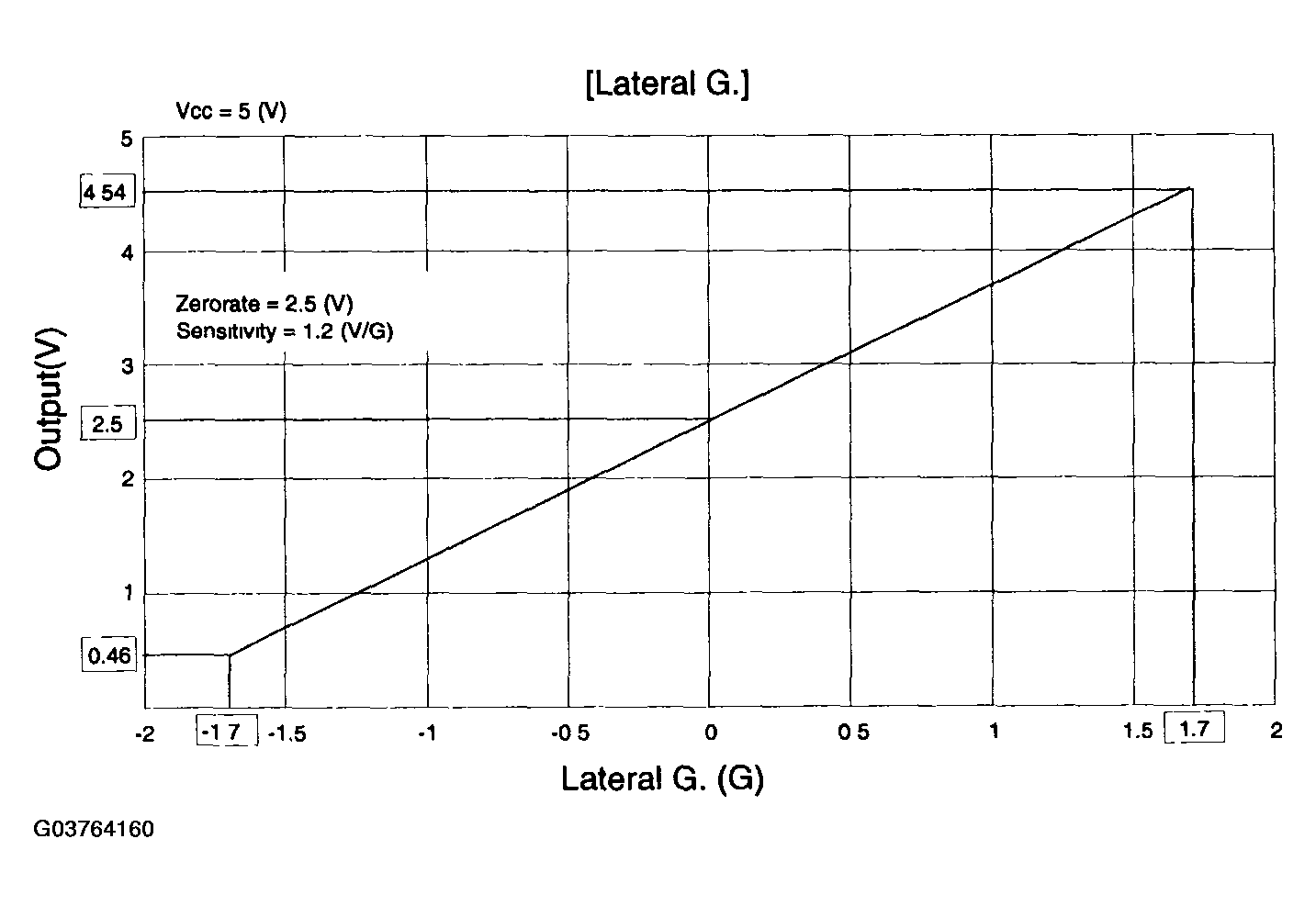

Fig 2: Output Graph (2 Of 2)
G03764160Courtesy of HYUNDAI MOTOR CO.
