Fuel Delivery System: Components

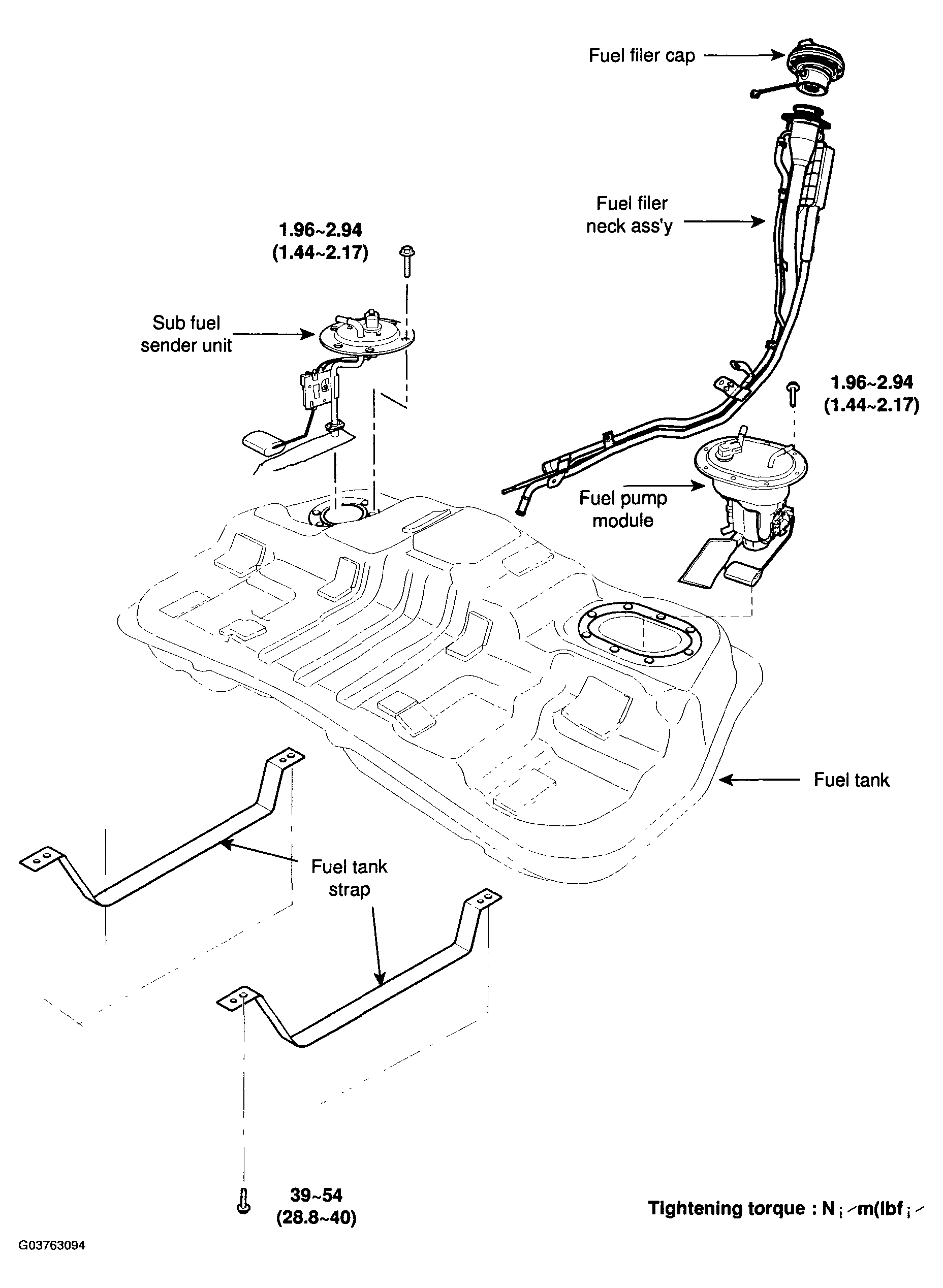

Fig 1: Fuel Delivery System Replacement Components With Torque Specifications
G03763094Courtesy of HYUNDAI MOTOR CO.
