Hydraulic Control System: Description
Courtesy of HYUNDAI MOTOR CO.
- Better and smoother shift quality.
- In order to prevent ATF leakage from the valve body or each elements, the exhaust ports have been grouped into only one with an addition of a check ball.
- If a fail occurs in its electric control, the switch valve and fail safe valve is able to move to enable 3rd speed drive or reverse.

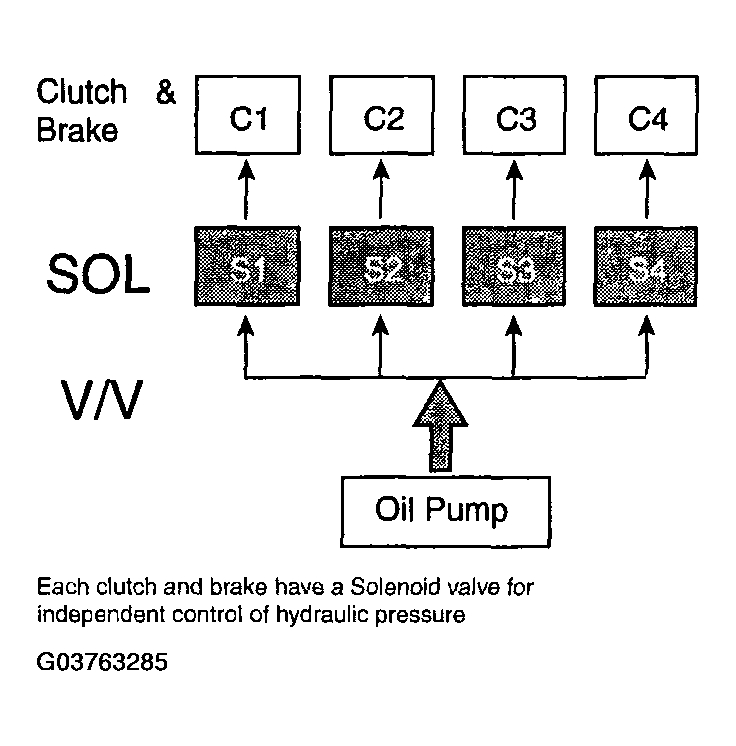

- The hydraulic system consists of oil pump, regulator valve, solenoid valves, pressure control valve and valve body.
