Checking Steering Angle

CHECKING STEERING ANGLE

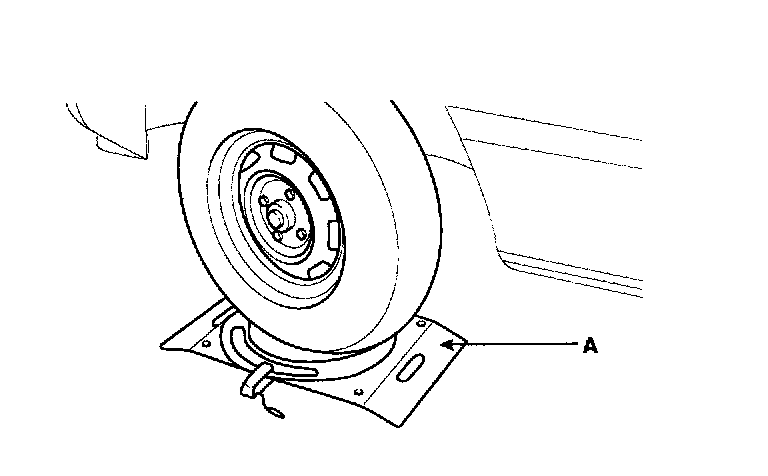

1. Place the front wheel on a turning radius gauge and measure the steering angle.
Standard value
Wheel angle
Inner wheel 36° 77'± 1° 30'
Outer wheel 31° 74'
2. If the measured value is not within the standard value, adjust the linkage.
