G Sensor

G Sensor

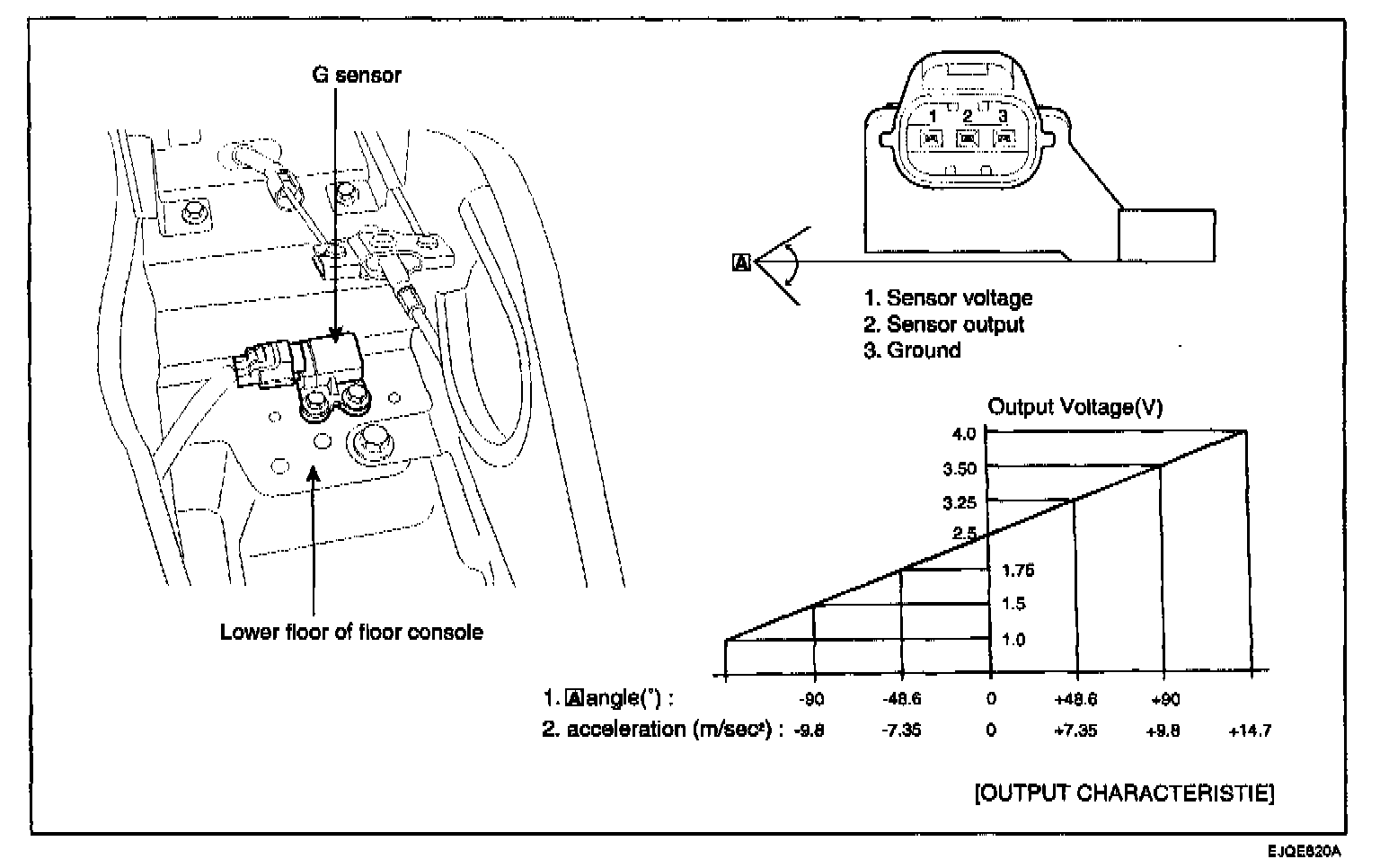

Components

Inspection

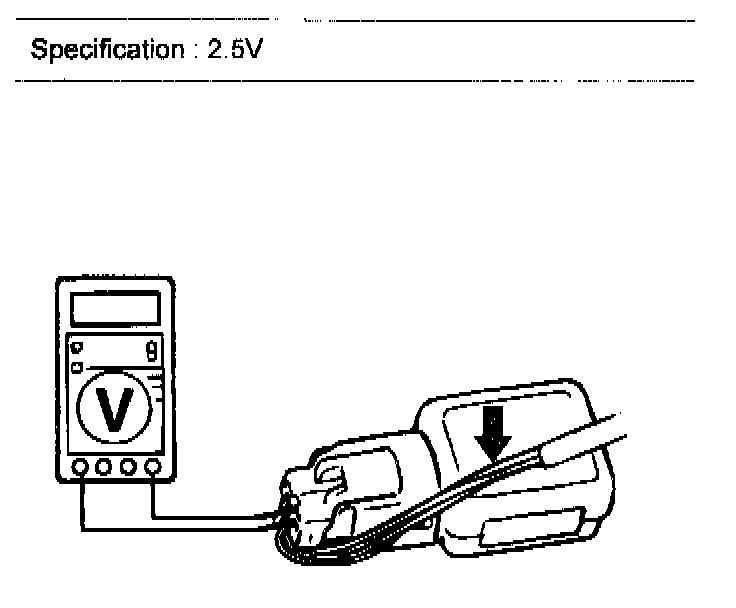

1. Connect a tester to both 2 and 3 terminals of the G sensor.






2. Measure the output voltage when IGN is ON.

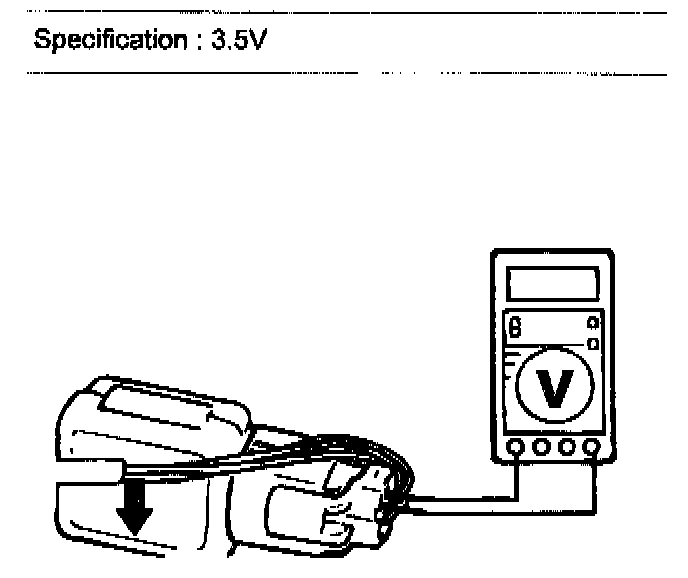

3. Measure the output voltage between 2 and 3 terminals, posing the arrow mark on the G sensor downward.
4. Replace the G sensor if the output voltage is not on the specification.
