Fuse Block: Locations

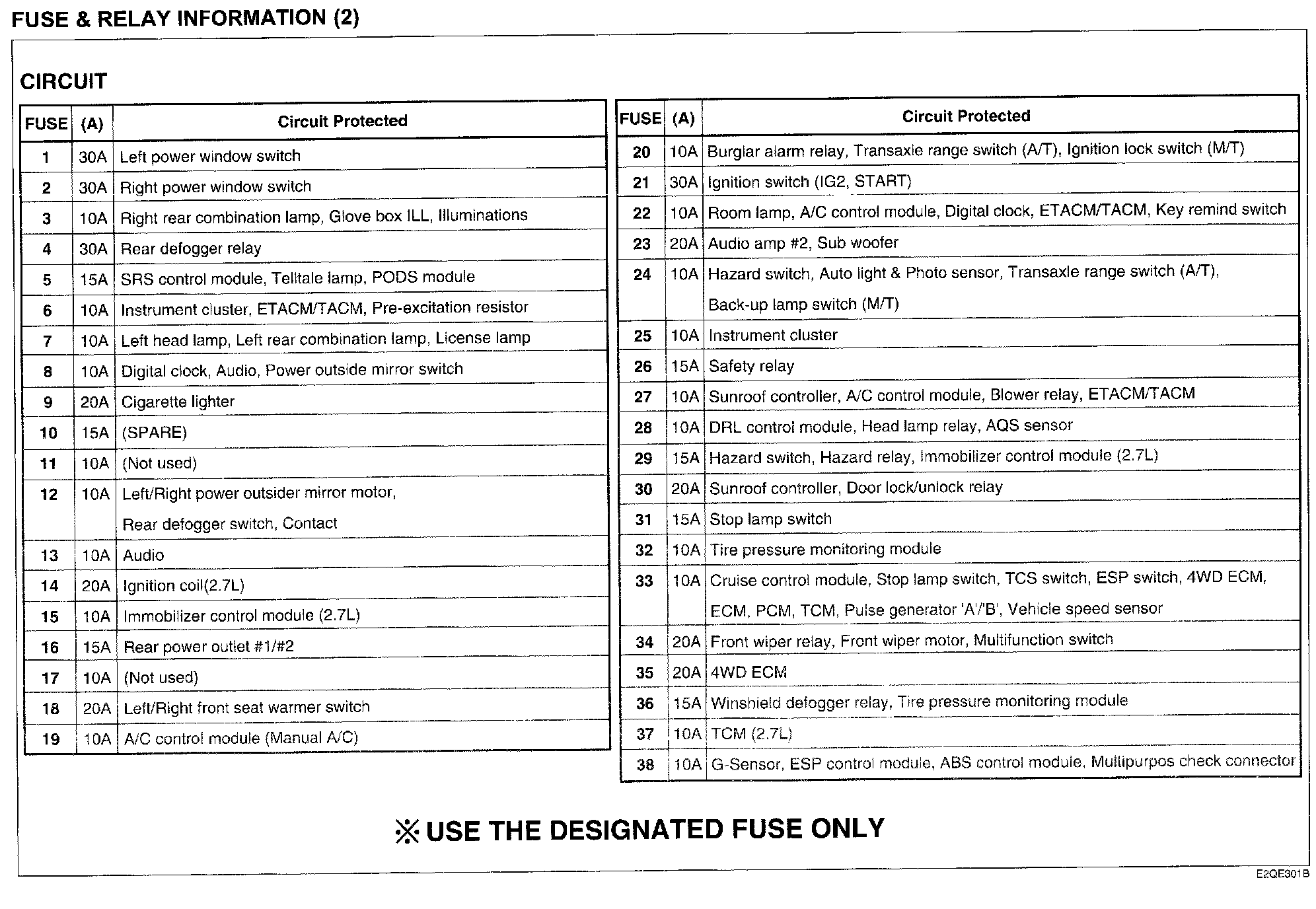

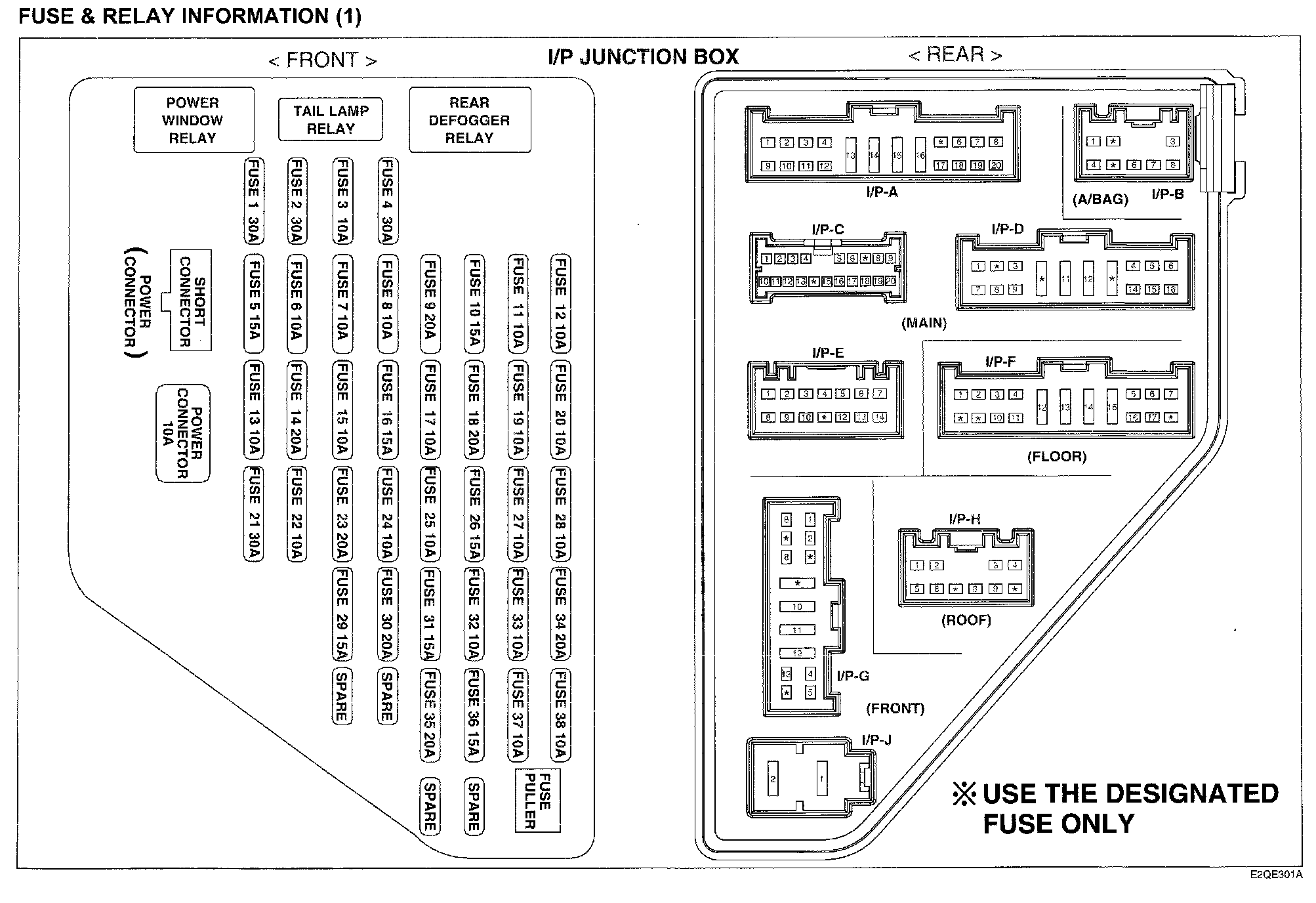

I/P Junction Box View:




I/P Junction Box Circuit Details:

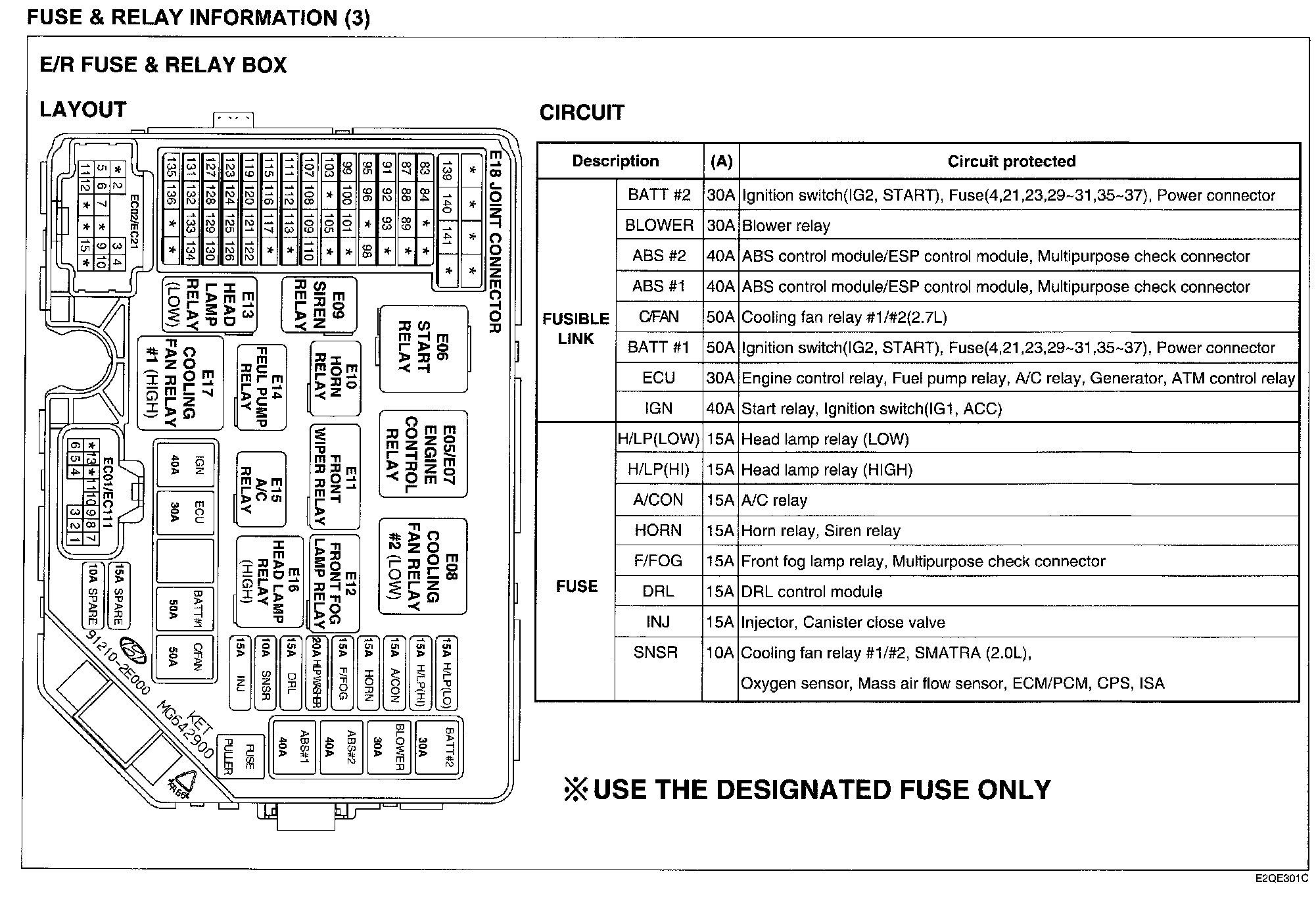

E/R Fuse & Relay Box View:




I/P Relay Box View:
