Engine Control Module

ECM HARNESS CONNECTOR

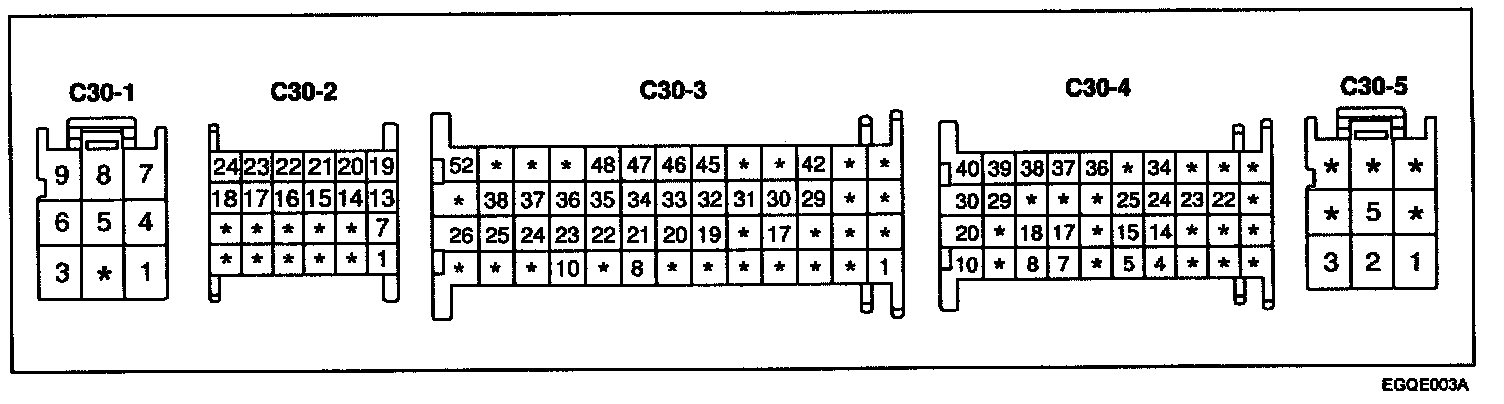

ECM Harness Connector:






ECM TERMINAL FUNCTION

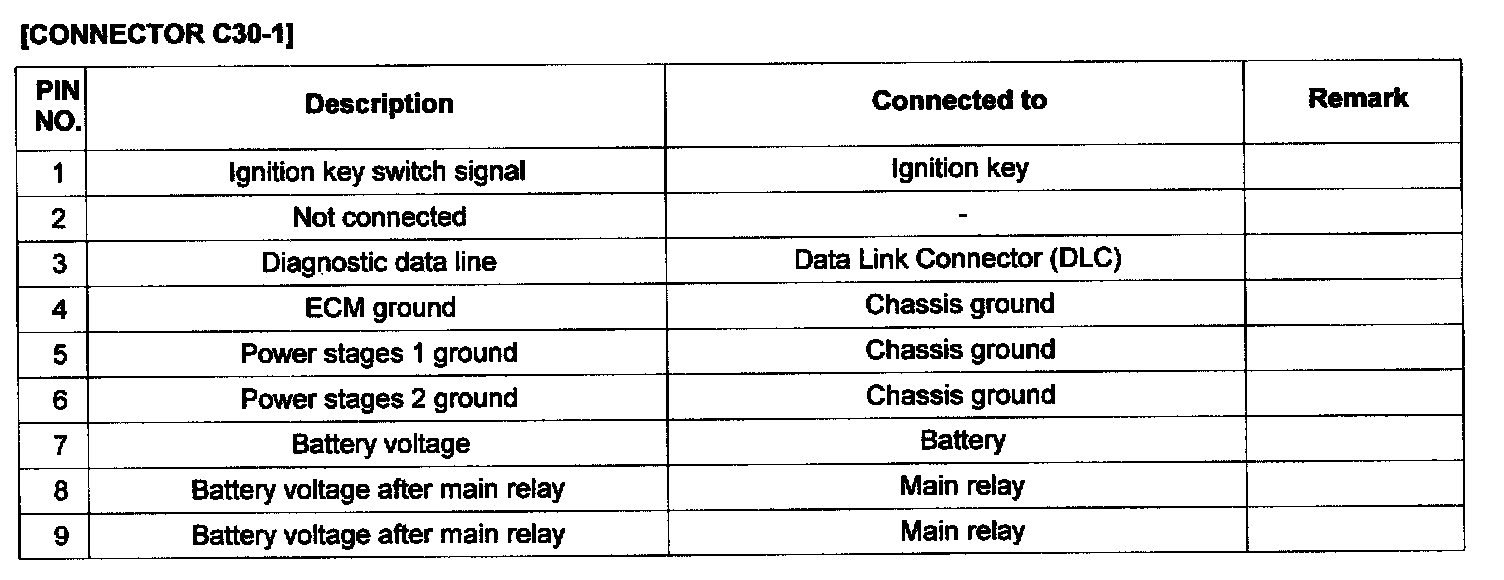

Pin No. 1 - 9:

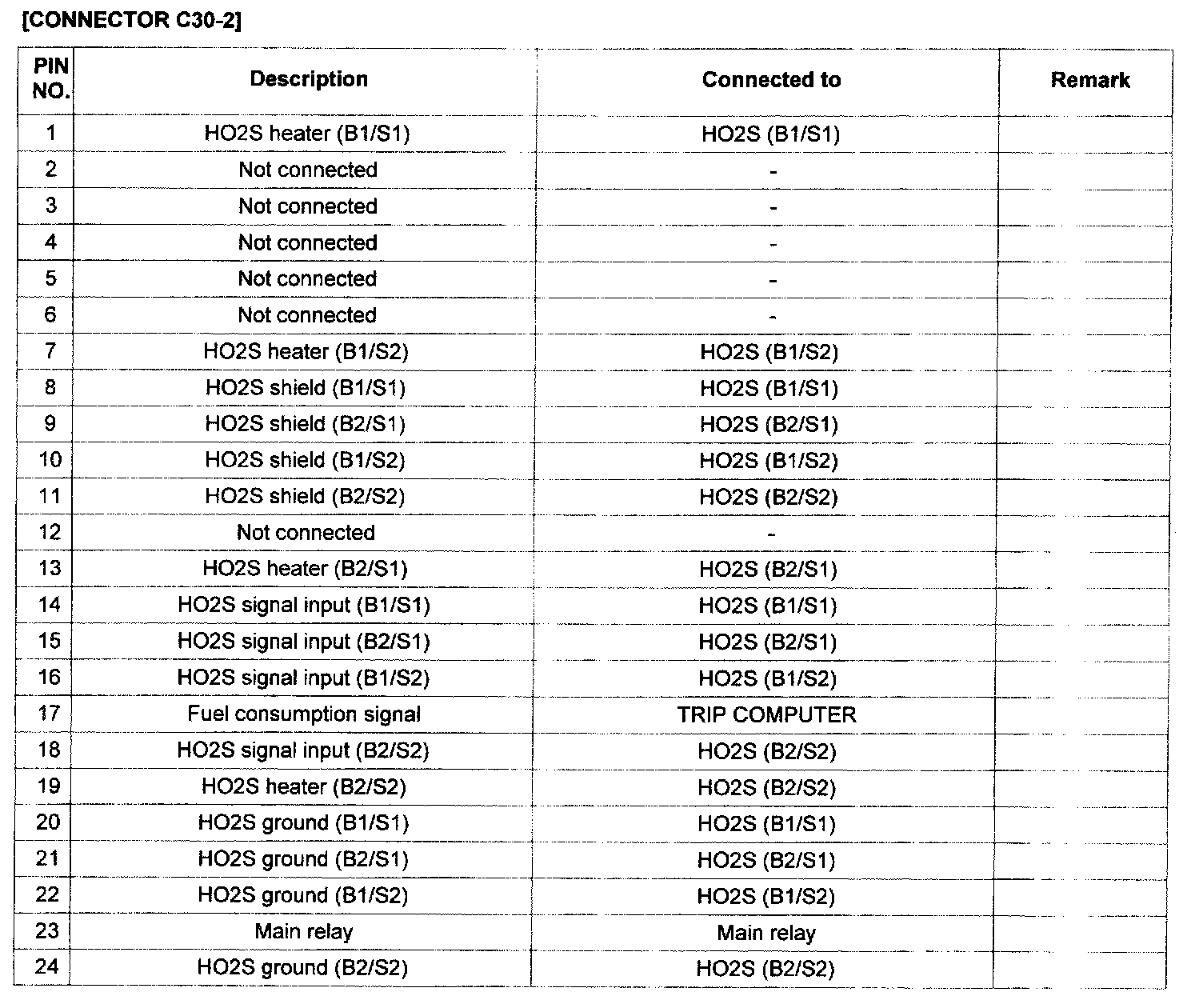

Pin No. 1 - 24:

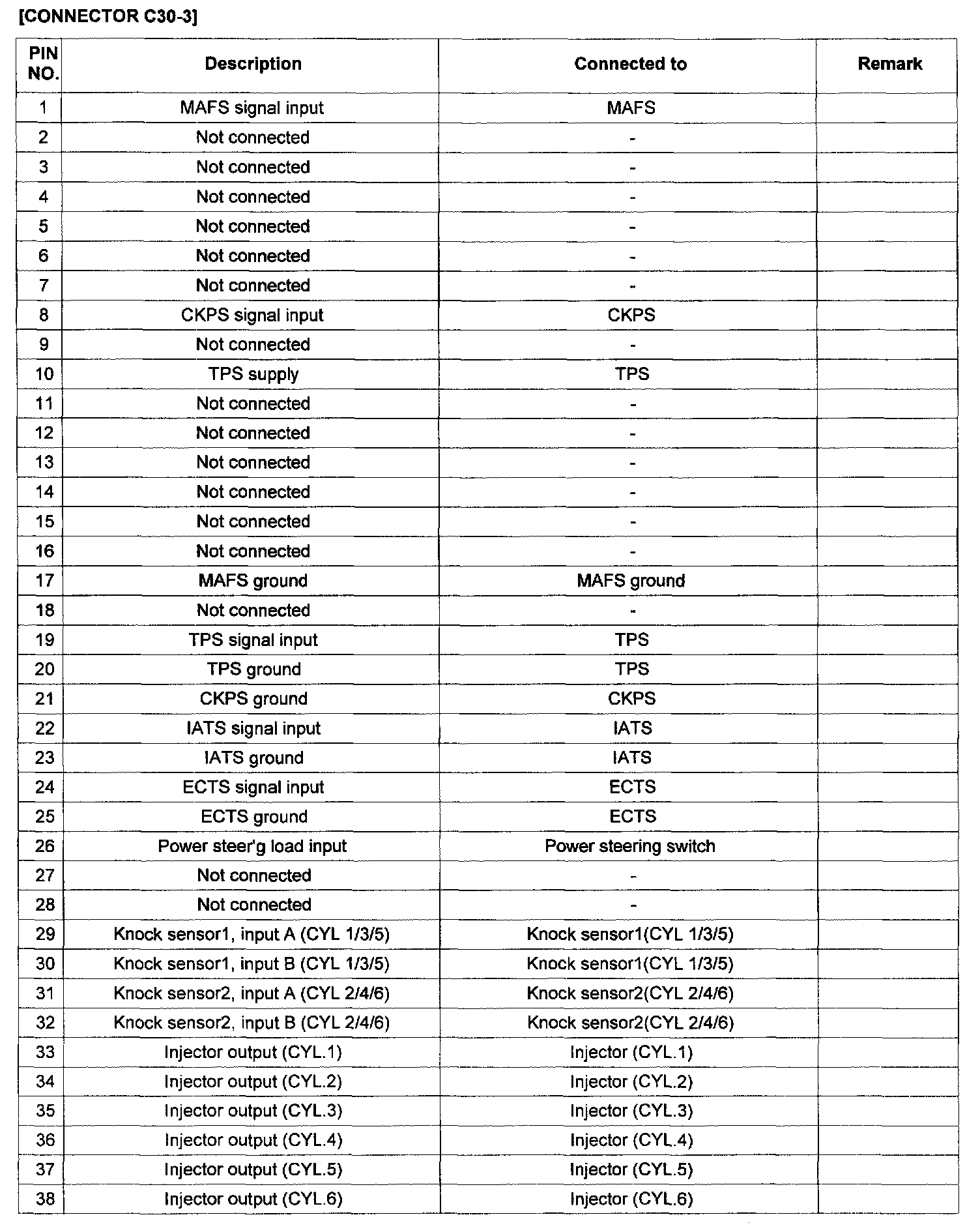

Pin No. 1 - 38:

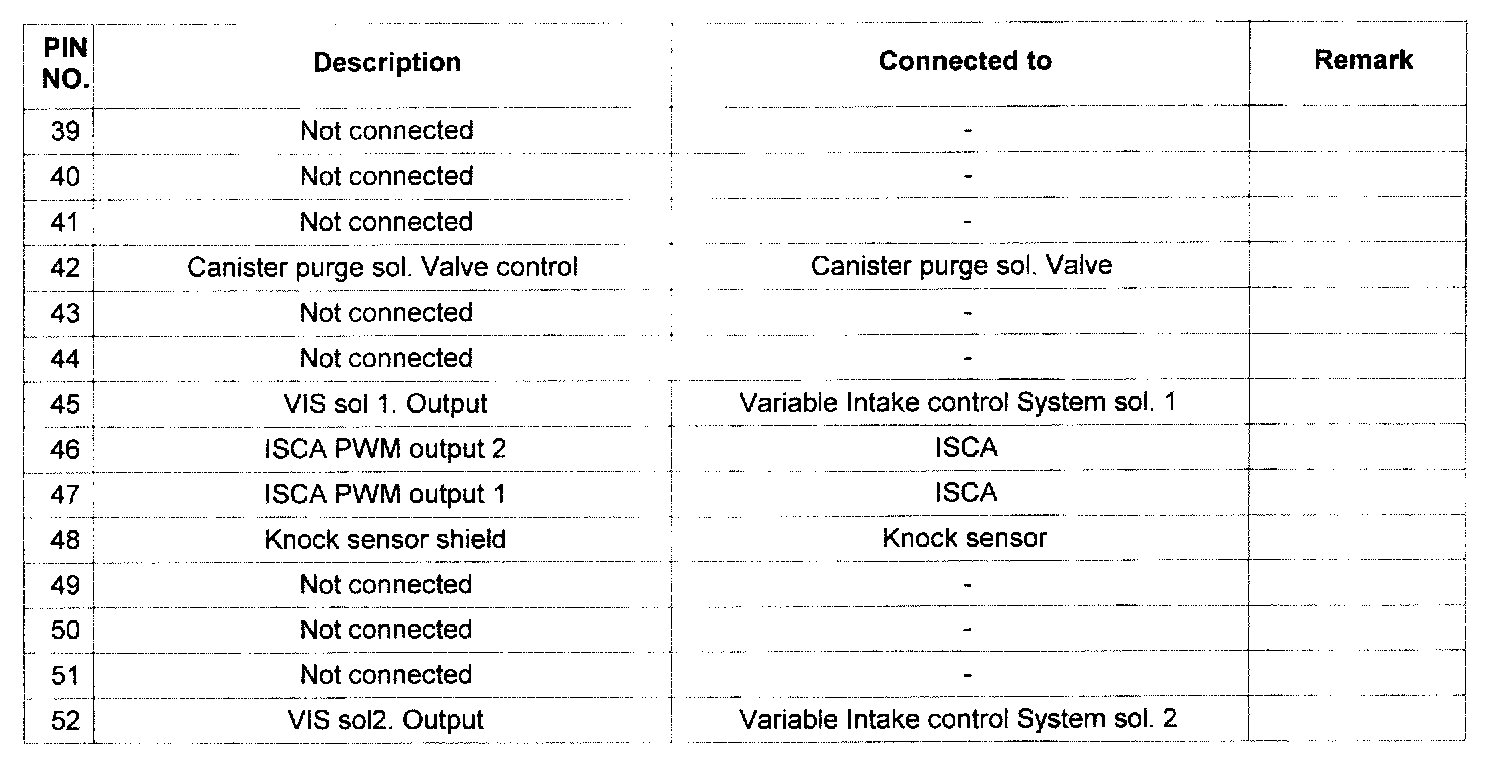

Pin No. 39 - 52:

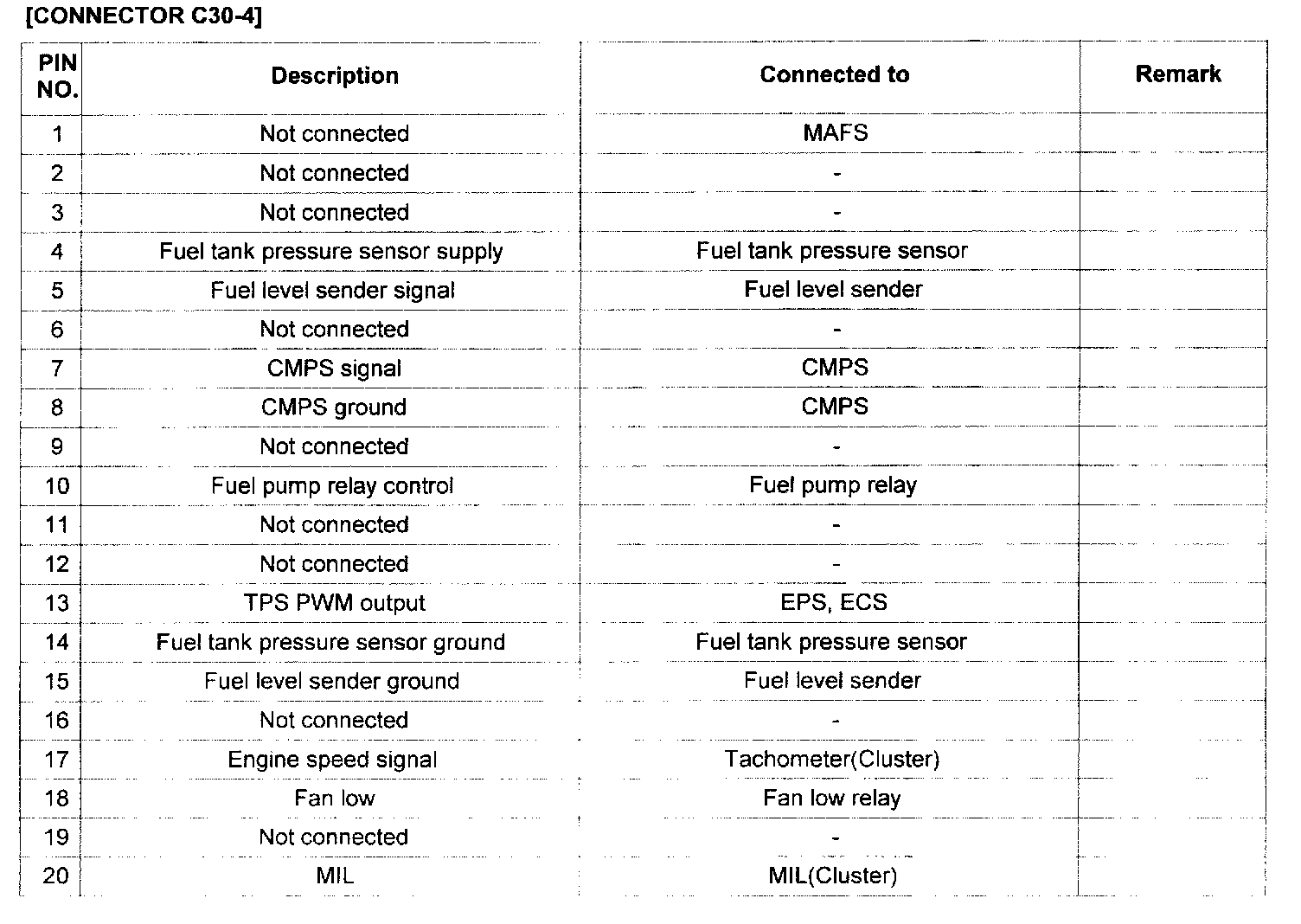

Pin No. 1 - 20:

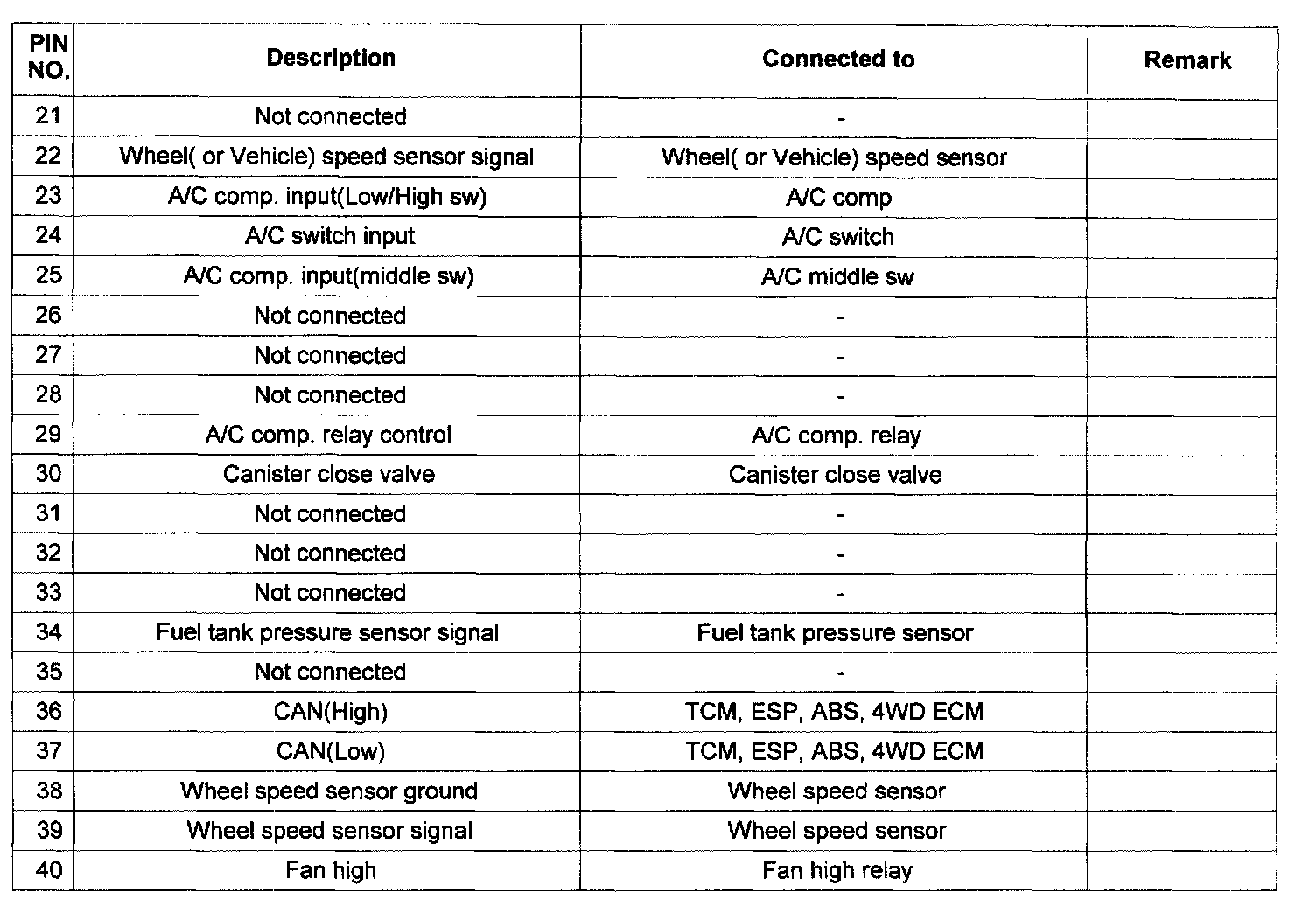

Pin No. 21 - 40:

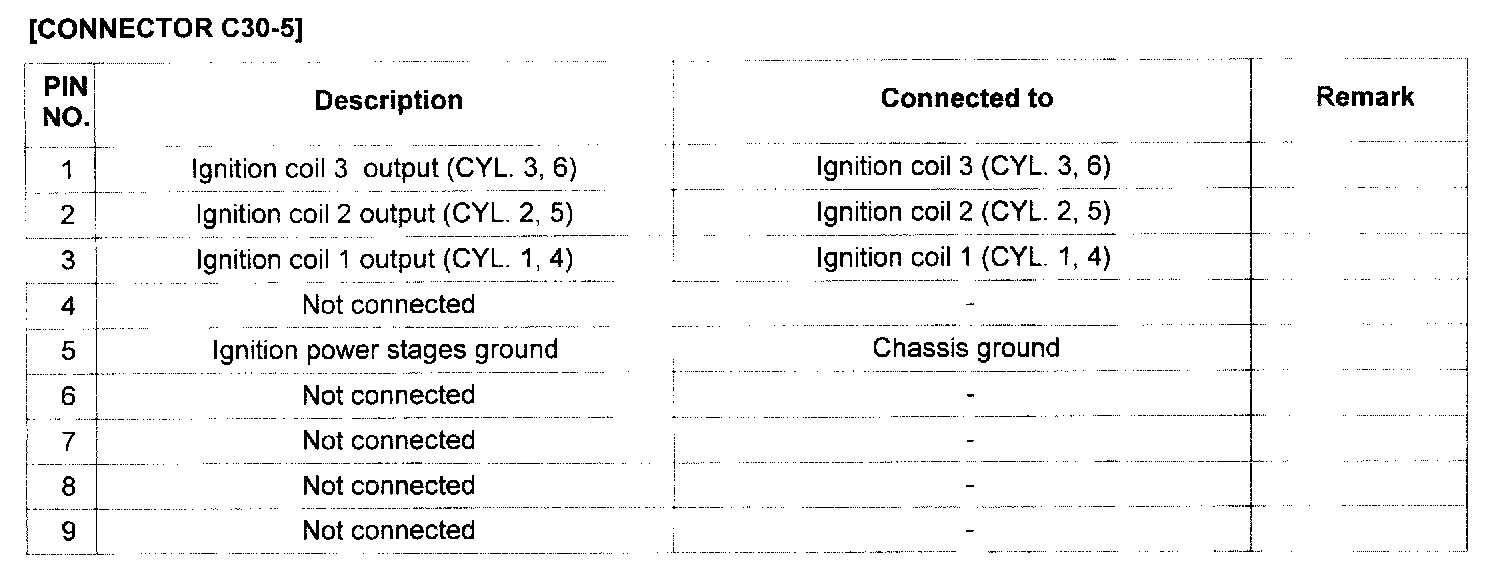

Pin No. 1 - 9:
