Power Window Relay: Inspection

  1. Disconnect the negative (-) battery terminal.
  2. Remove the power window relay from the junction box.
  3. Check for continuity between the terminals.
  4. There should be continuity between the No.1 and No.4 terminals when power and ground are connected to the No.2 and No.3 terminals.
  5. There should be no continuity between the No.1 and No.4 terminals when power is disconnected.

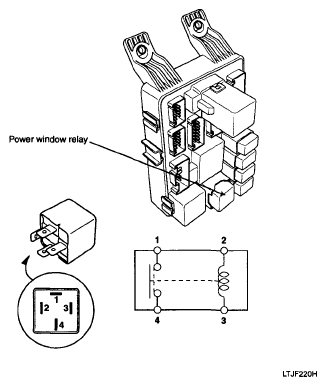

    Fig 1: Identifying Power Window Relay
    G04802976Courtesy of HYUNDAI MOTOR CO.

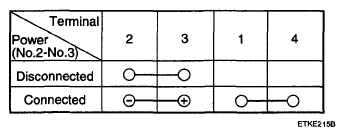

    Fig 2: Terminals Continuity Chart
    G04802969Courtesy of HYUNDAI MOTOR CO.
