Pressure Control Solenoid Valve (PCSV): Inspection

Remove the battery terminal.
Lift the vehicle.
Remove the side cover(A). (Bolt: 2EA)

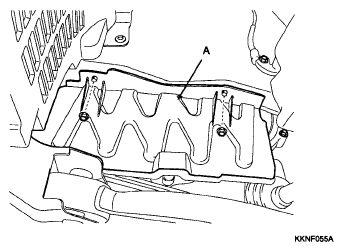

Fig 1: Identifying Side Cover & Bolt
Courtesy of HYUNDAI MOTOR CO.
Disconnect the solenoid valve connector(A).

Fig 2: Identifying Solenoid Valve Connector
Courtesy of HYUNDAI MOTOR CO.

Measure the resistance between terminals of the solenoid valve connector on the transaxle case.

Fig 3: Measuring Resistance Between Terminals Of Solenoid Valve Connector On Transaxle Case

G04802189

Courtesy of HYUNDAI MOTOR CO.

RESISTANCE SPECIFICATION

Pin no.	Name	Resistance
1	Damper clutch solenoid valve	2.7 ~ 3.4Ω (20°C(68°F))
2	Shift control solenoid valve A	22.3 ± 1.5Ω (20°C(68°F))
3	Shift control solenoid valve B	22.3 ± 1.5Ω (20°C(68°F))
4	Pressure control solenoid valve B	2.7 ~ 3.4Ω (20°C(68°F))
5	Pressure control solenoid valve A	2.7 ~ 3.4Ω (20°C(68°F))
6	Shift control solenoid valve C	22.3 ± 1.5Ω (20°C(68°F))

If the result isn't within the standard value, remove the valve body cover.
Measure the resistance after removing the solenoid valve connector.

Fig 4: Measuring Resistance
Courtesy of HYUNDAI MOTOR CO.
If the result isn't within the standard value, replace the solenoid valve.
