Body & Frame: Windows: Interior: Console: Components

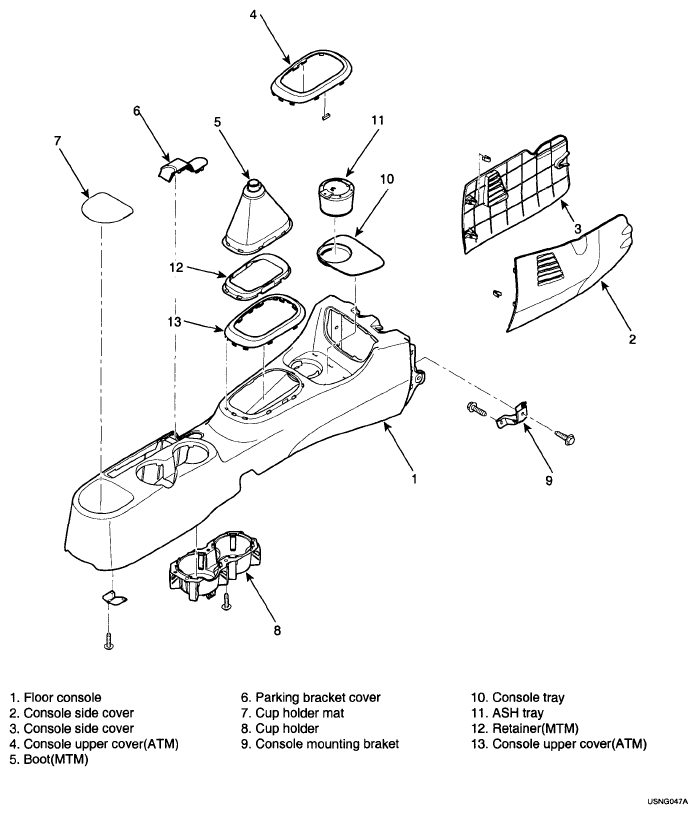

Fig 1: Identifying Console Components

G04802753

Courtesy of HYUNDAI MOTOR CO.
