Passenger Compartment Junction Block View

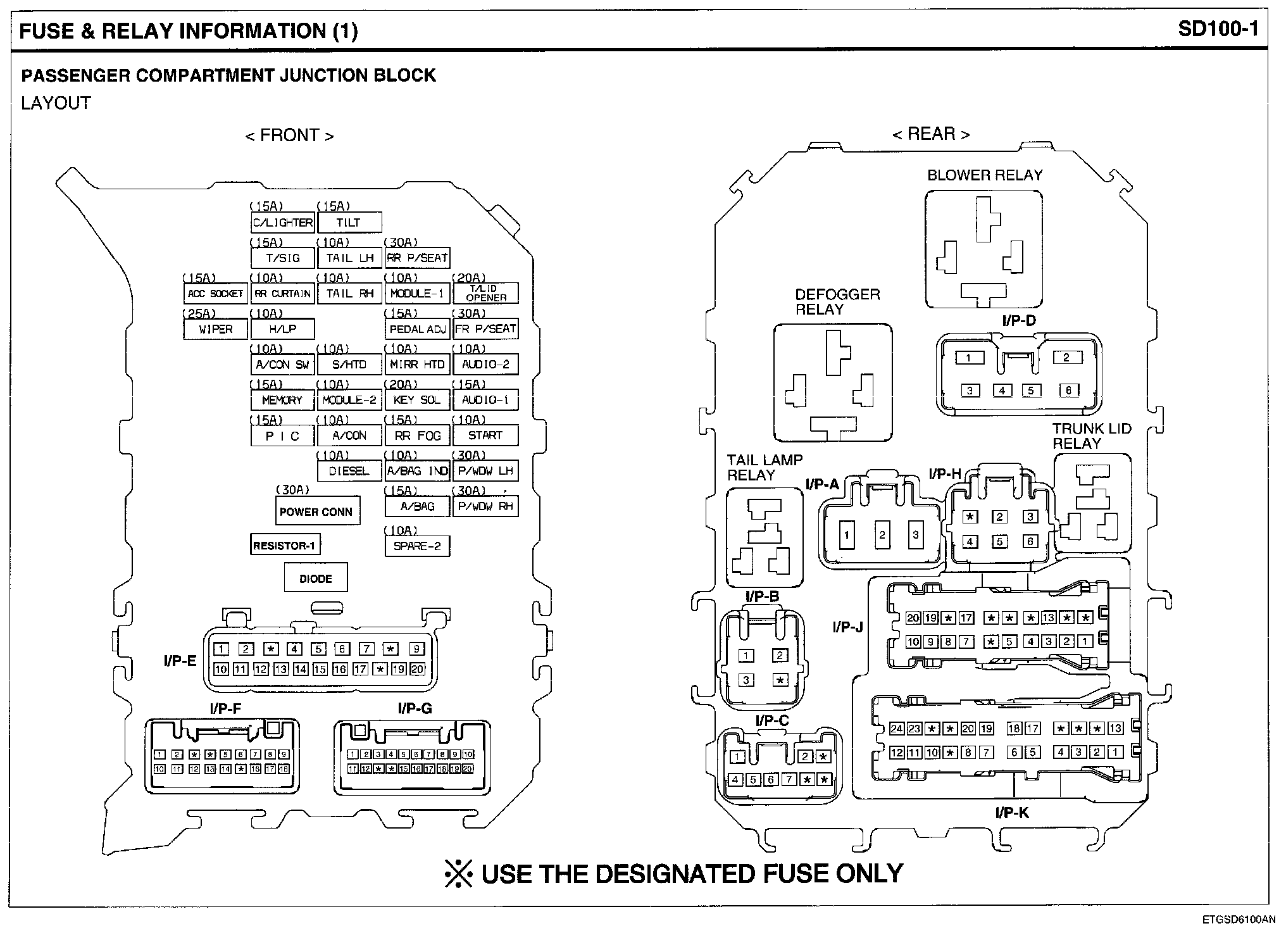

Passenger Compartment Junction Block View:




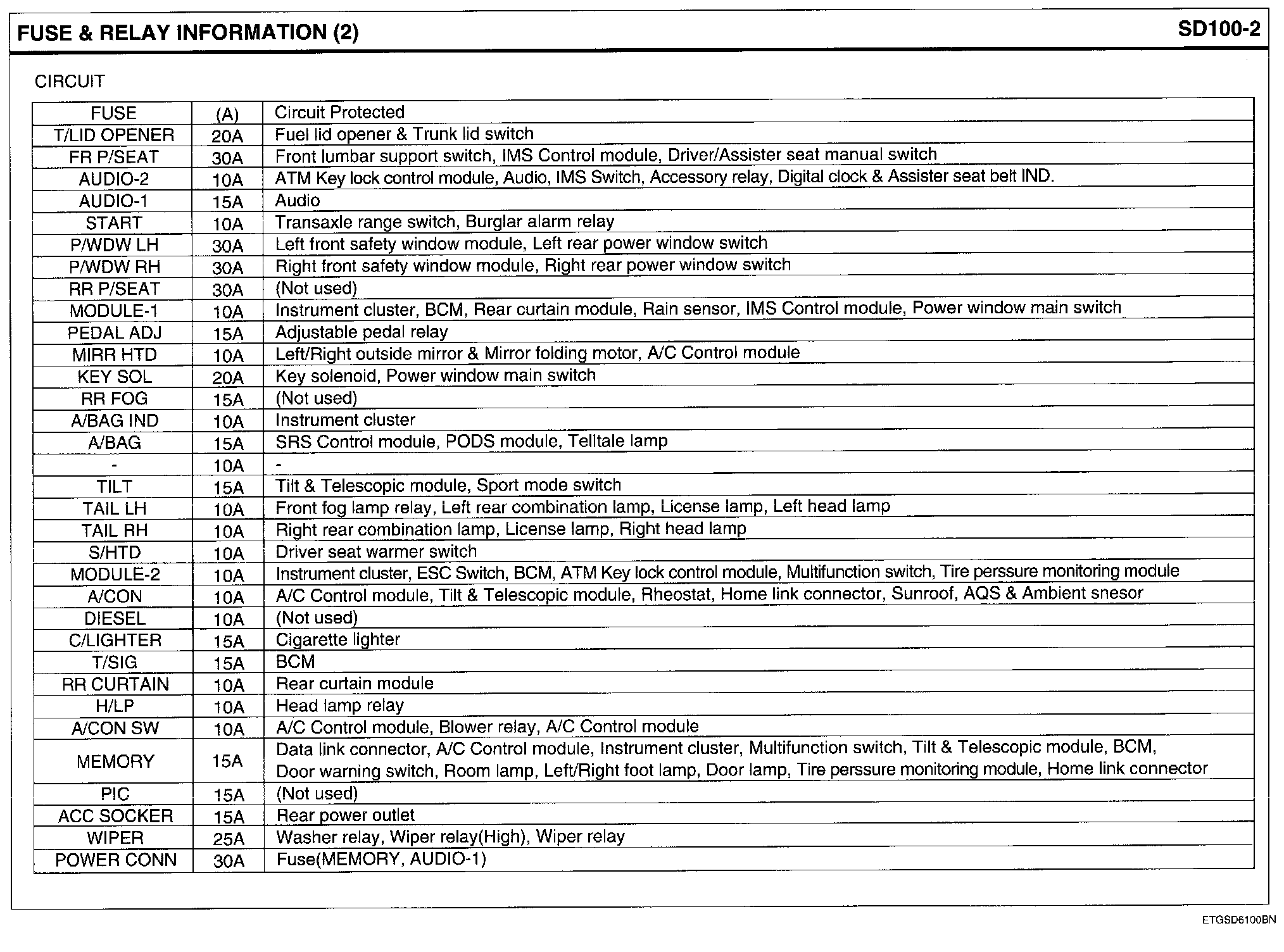

Passenger Compartment Junction Block Circuit Details:

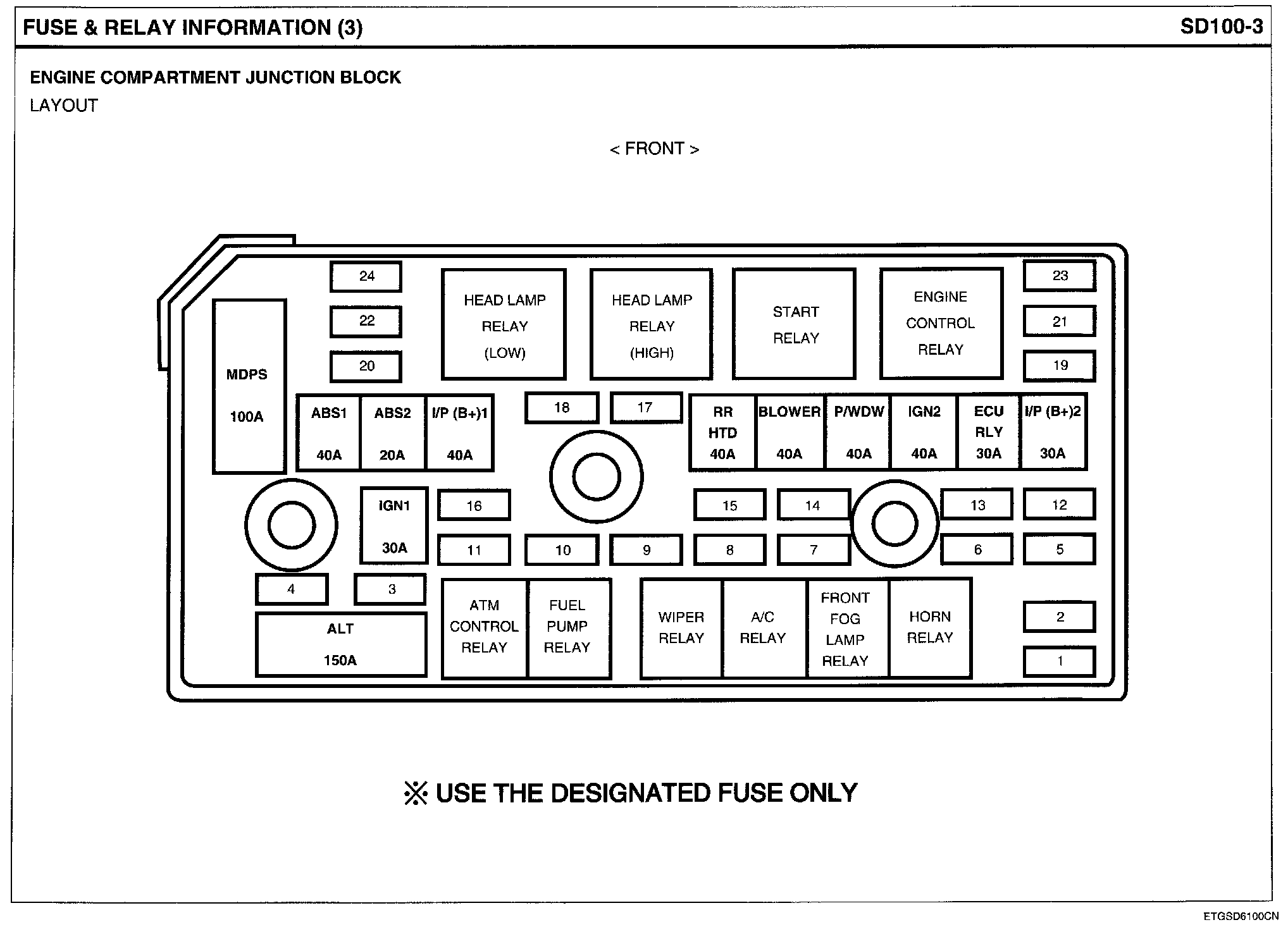

Engine Compartment Junction Block View:




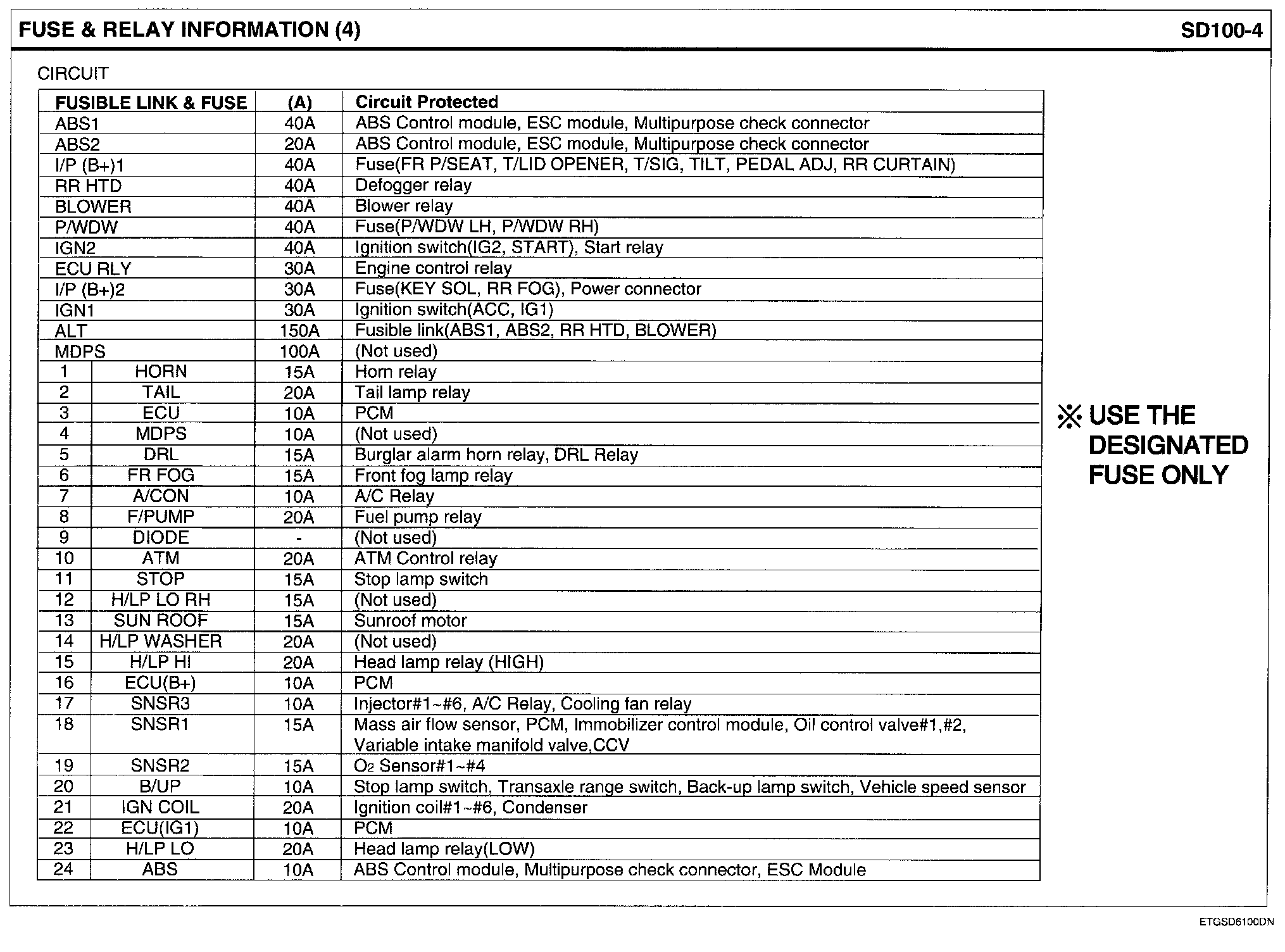

Engine Compartment Junction Block Circuit Details:

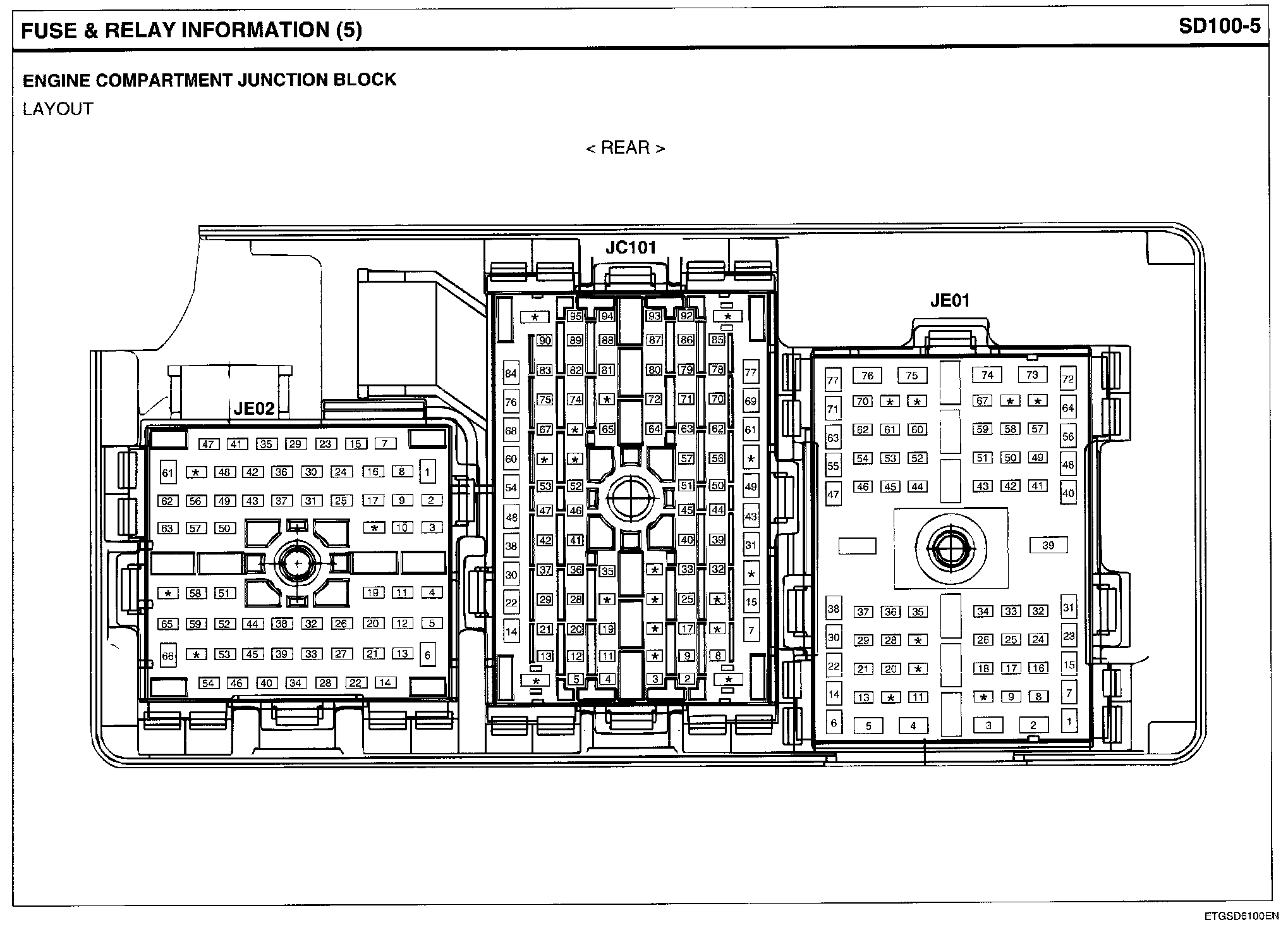

Engine Compartment Junction Block View:

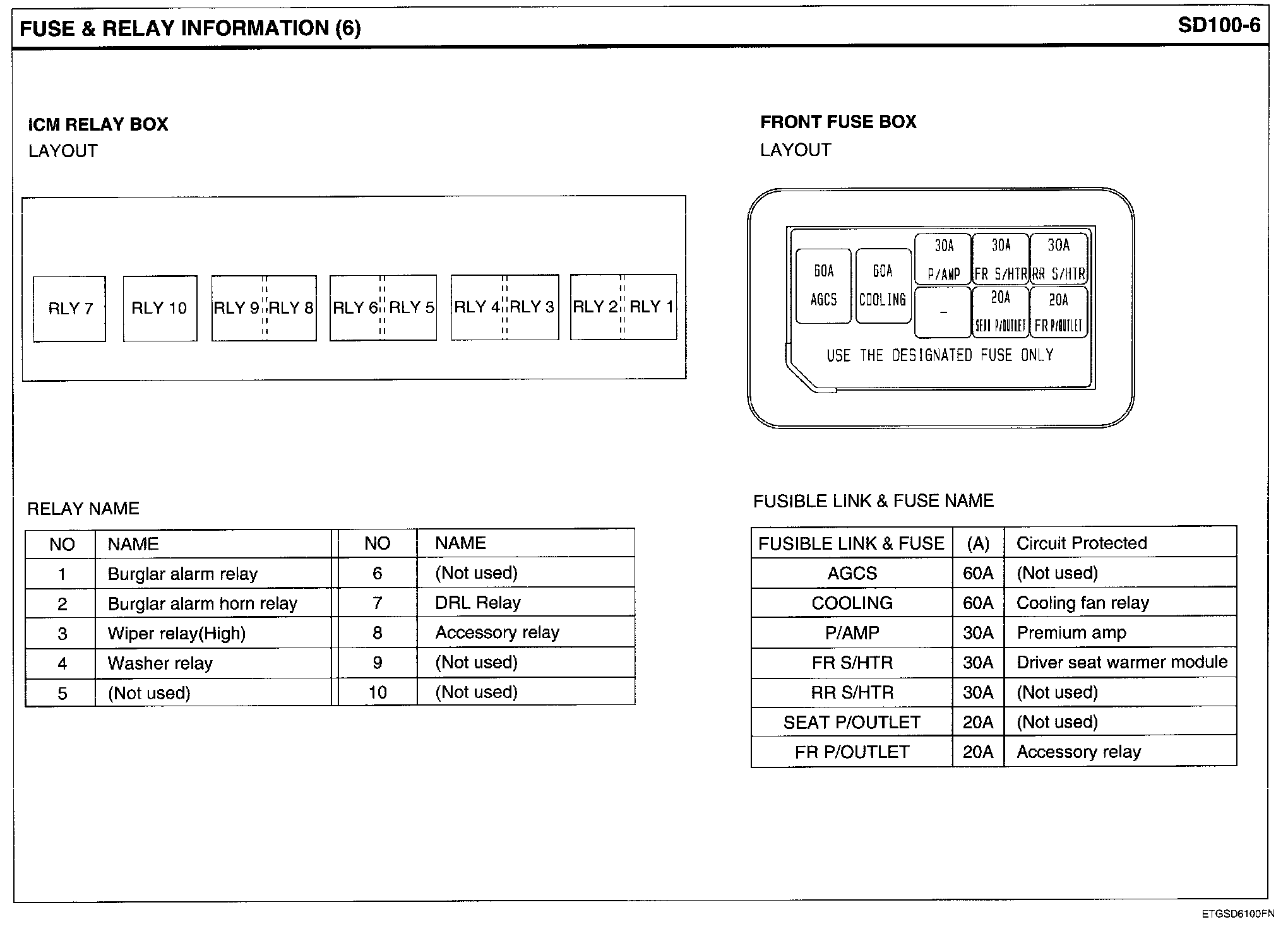

ICM Relay Box View:
