Fuel Tank: Components

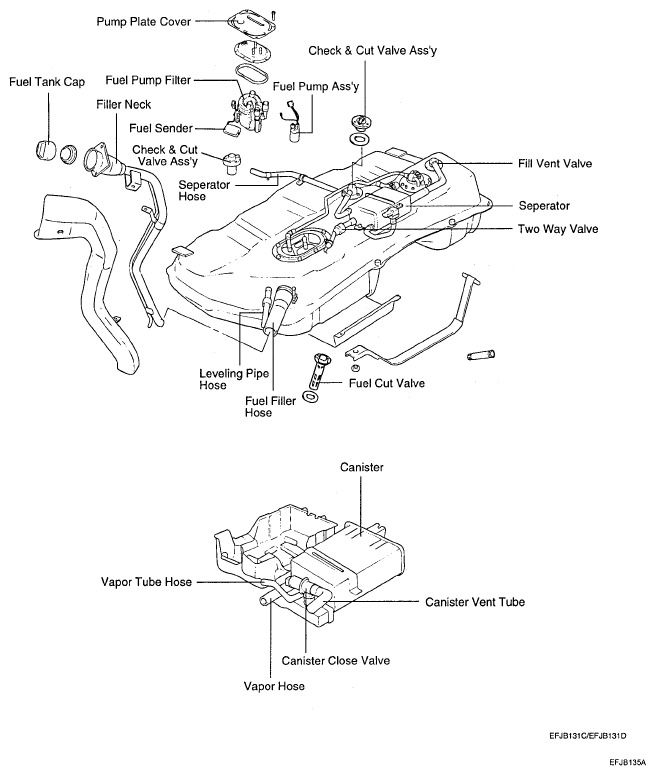

Fig 1: Identifying Fuel Tank Components
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
