Location Of MFI Components

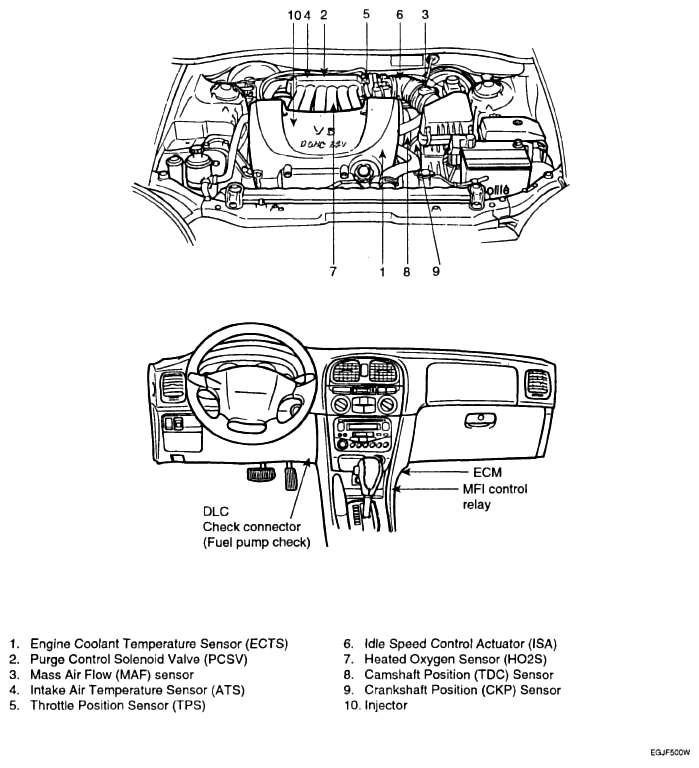

Fig 1: Location Of MFI Components (1 Of 2)
G04932062Courtesy of HYUNDAI MOTOR CO.

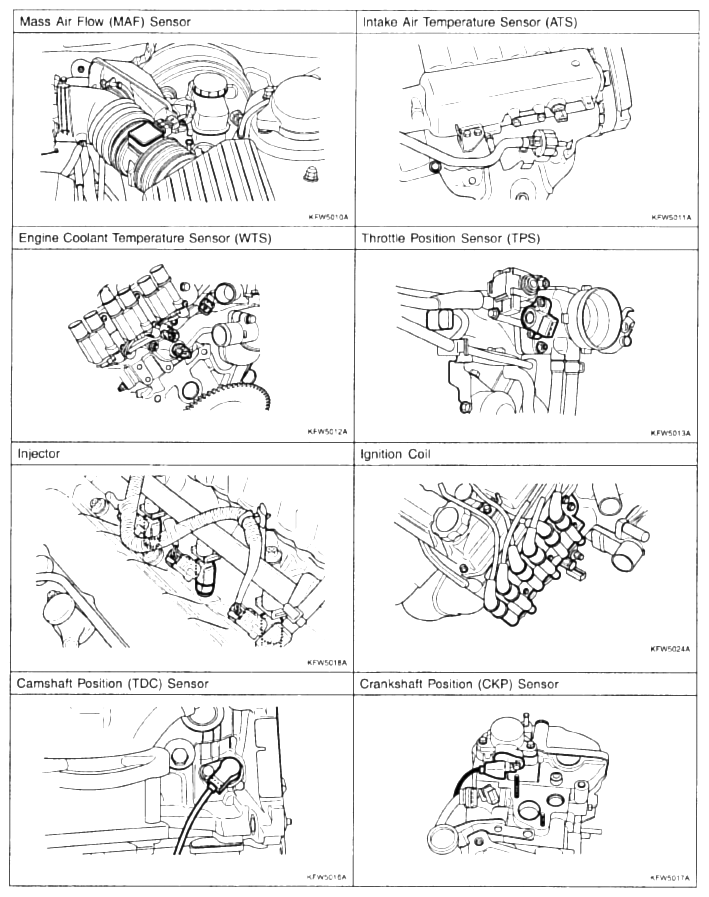

Fig 2: Location Of MFI Components (2 Of 2)
G04932063Courtesy of HYUNDAI MOTOR CO.
