Circuit Diagram

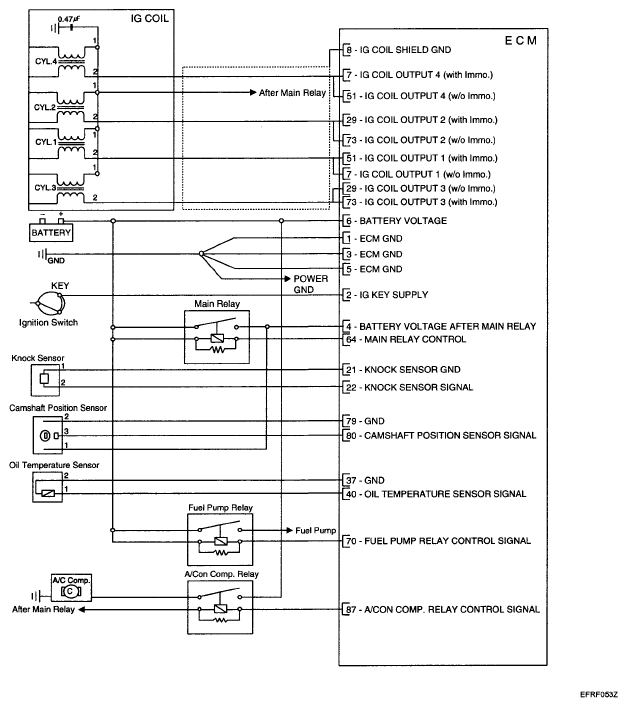

Fig 1: Fuel System Circuit Diagram (1 Of 4)
G04890829Courtesy of HYUNDAI MOTOR CO.

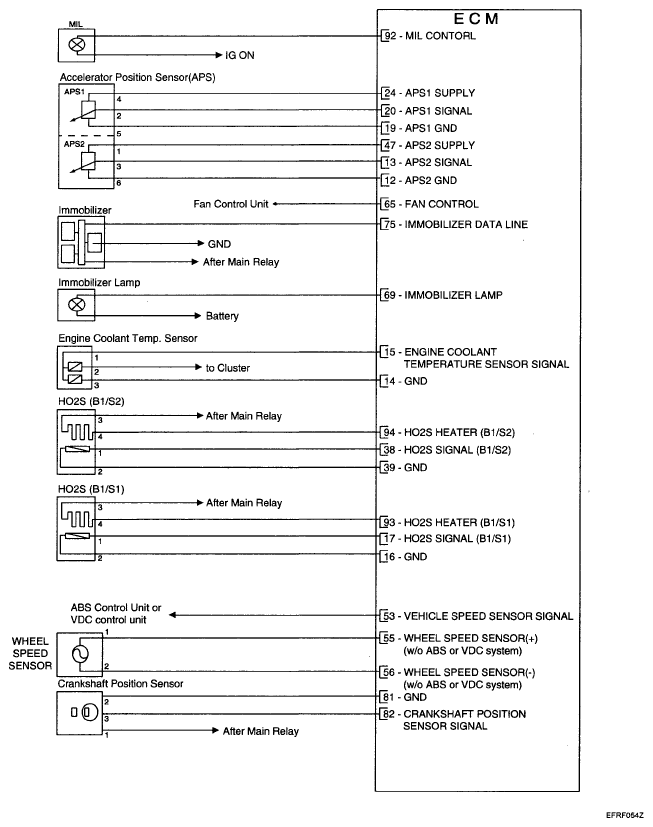

Fig 2: Fuel System Circuit Diagram (2 Of 4)
G04890830Courtesy of HYUNDAI MOTOR CO.

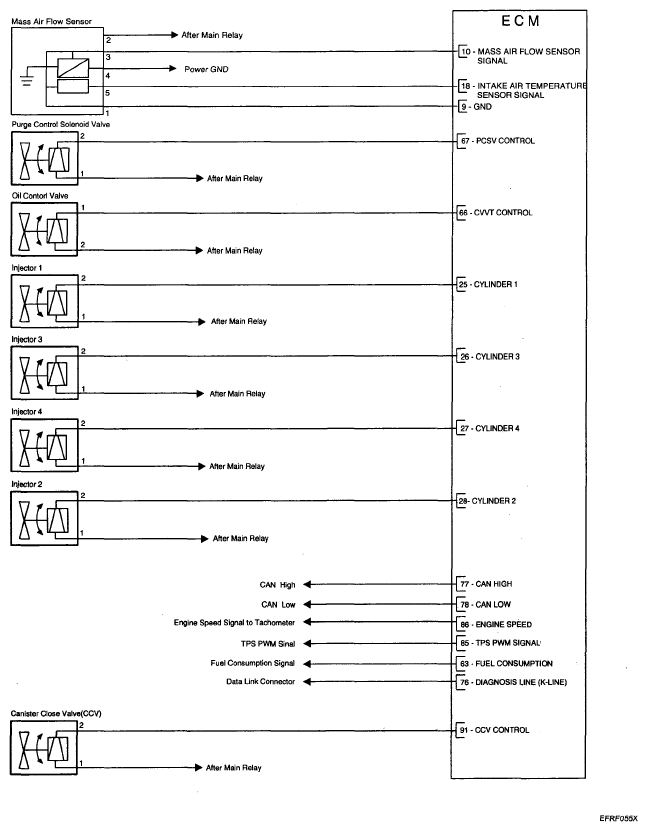

Fig 3: Fuel System Circuit Diagram (3 Of 4)
G04890831Courtesy of HYUNDAI MOTOR CO.

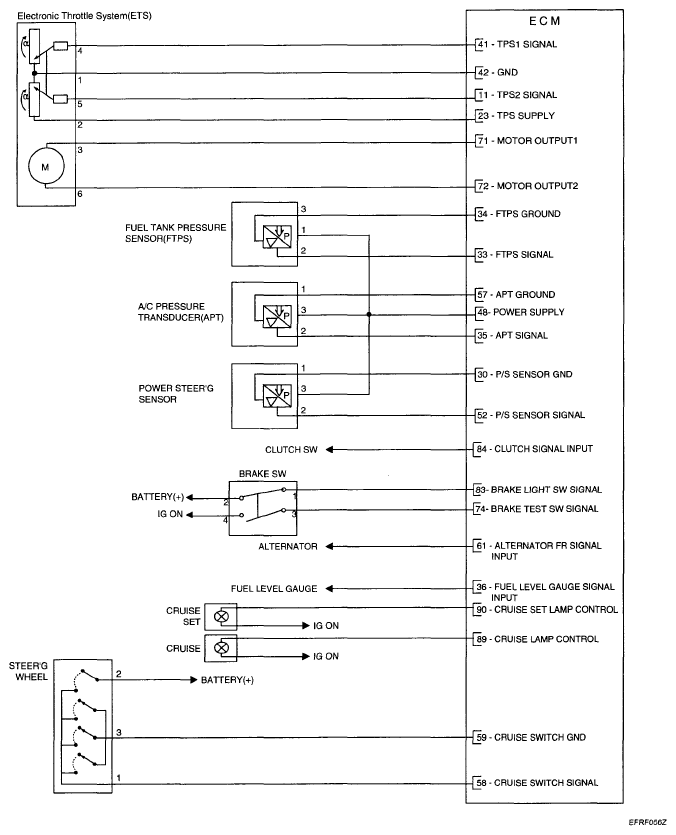

Fig 4: Fuel System Circuit Diagram (4 Of 4)
G04890832Courtesy of HYUNDAI MOTOR CO.
