Mass Air Flow Sensor (MAFS): Description: Waveform

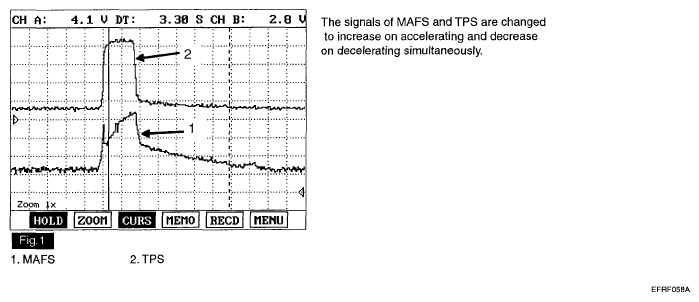

Fig 1: Waveform Signal For Mass Air Flow Sensor
Courtesy of HYUNDAI MOTOR CO.
