Sonata GLS, 2.4 C
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4KC-GSL 2.4)
>>
Gasoline Engine Control System
>>
Oxygen Sensor (O2S)
>>
Description
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

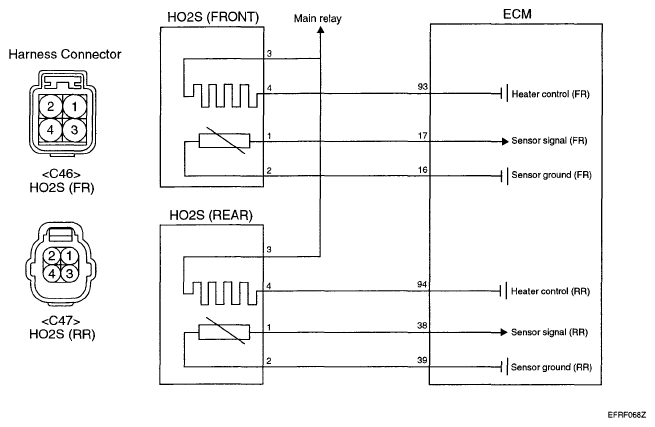

Fig 1: Heated Oxygen Sensor Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
