Schematic Diagram

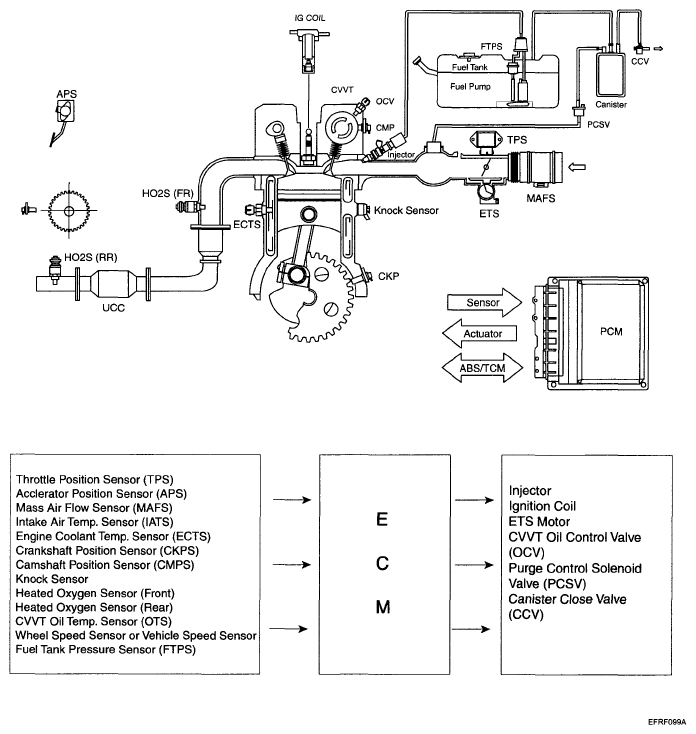

Fig 1: Gasoline Engine Control System Schematic Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
