Fuel System (G4KC-GSL 2.4): Injector: Installation

Set the O-rings with the injector and cover them with petrol.

Fig 1: Identifying Injector O-Rings
Courtesy of HYUNDAI MOTOR CO.
Moving the injector left and right, assemble it with the fuel delivery pipe.

Fig 2: Moving Injector Left And Right
Courtesy of HYUNDAI MOTOR CO.
Set the clip(A) with the injector(B).

Fig 3: Identifying Injector And Clip
Courtesy of HYUNDAI MOTOR CO.
Install the delivery pipe.
Torque: 2.0 ~ 2.5 kgf.m (19.6 ~ 24.5 N.m, 14.5 ~ 18.1 lbf.ft)

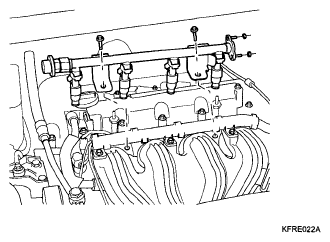

Fig 4: Identifying Fuel Delivery Pipe With Bolts
Courtesy of HYUNDAI MOTOR CO.
