5-Speed M/T

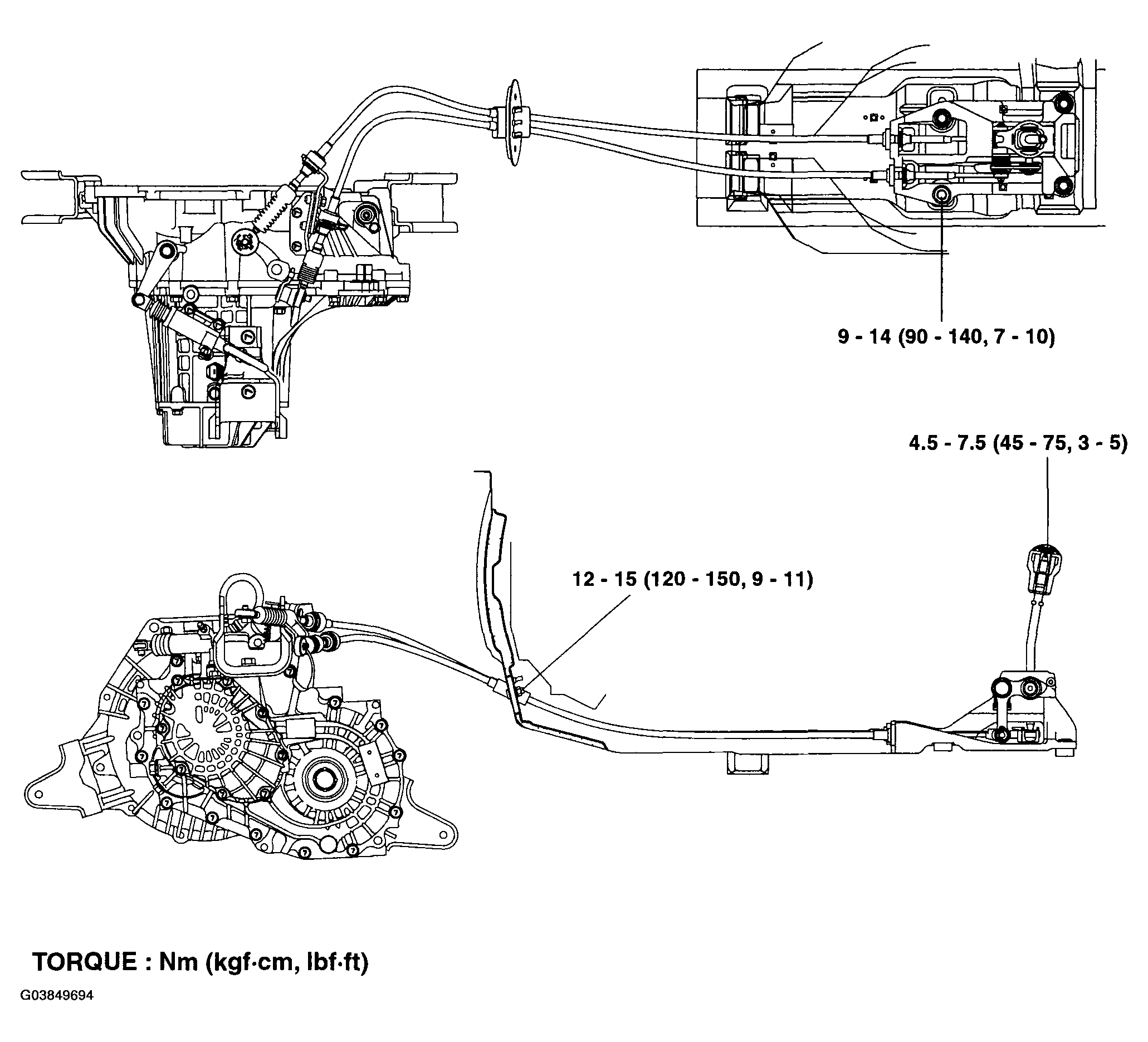

Fig 1: Manual Transaxle Shift Control Replacement Components With Torque Specifications (5-Speed M/T)
G03849694Courtesy of HYUNDAI MOTOR CO.
