Connector Views

ECM Harness Connector:

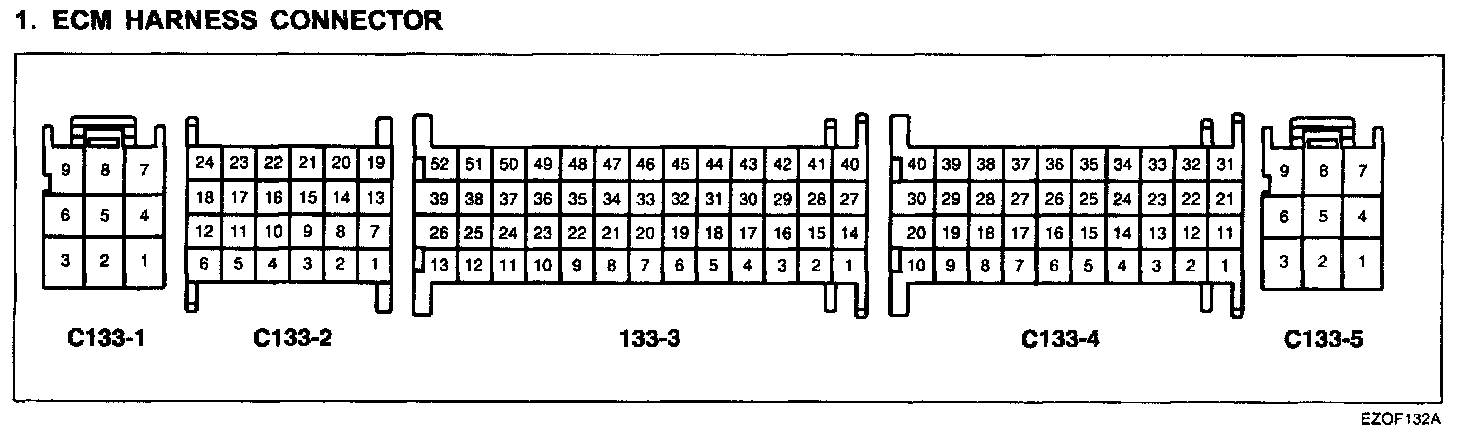

ECM Harness Connector

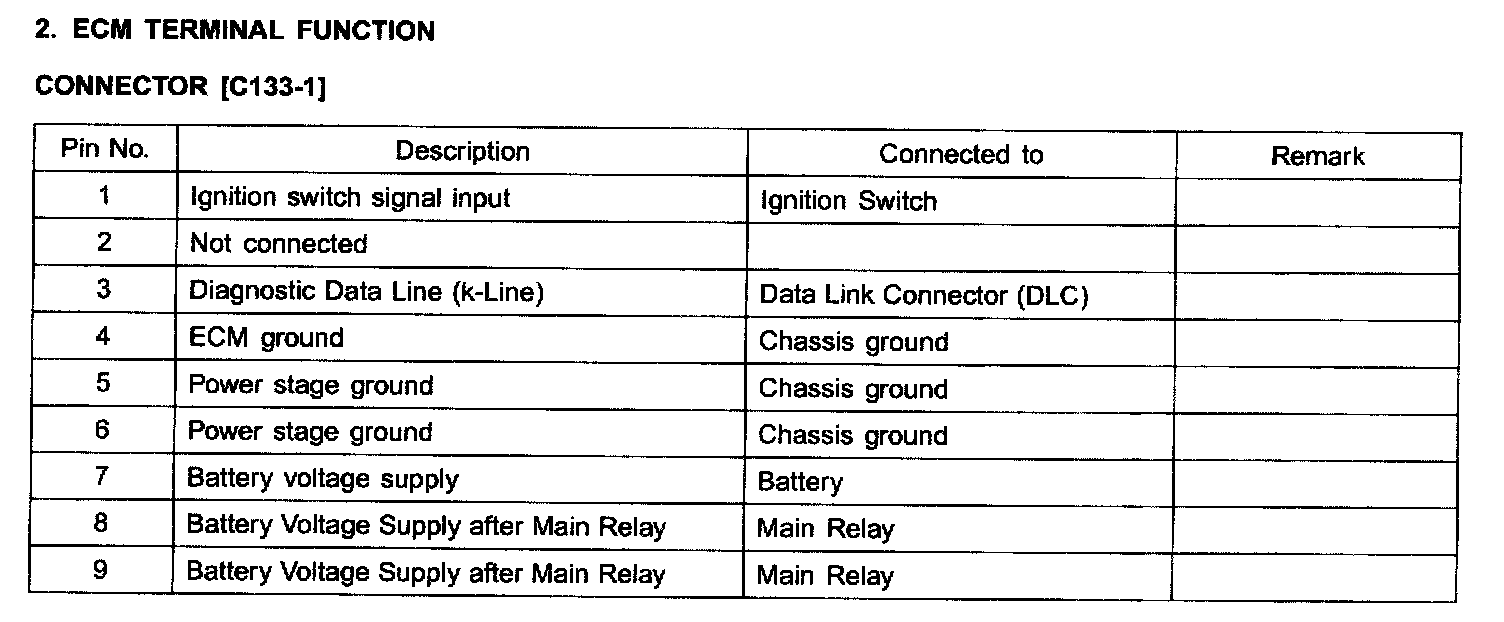

ECM Terminal Function Connector [C133-1]:

ECM Terminal Function Connector (C133 - 1)

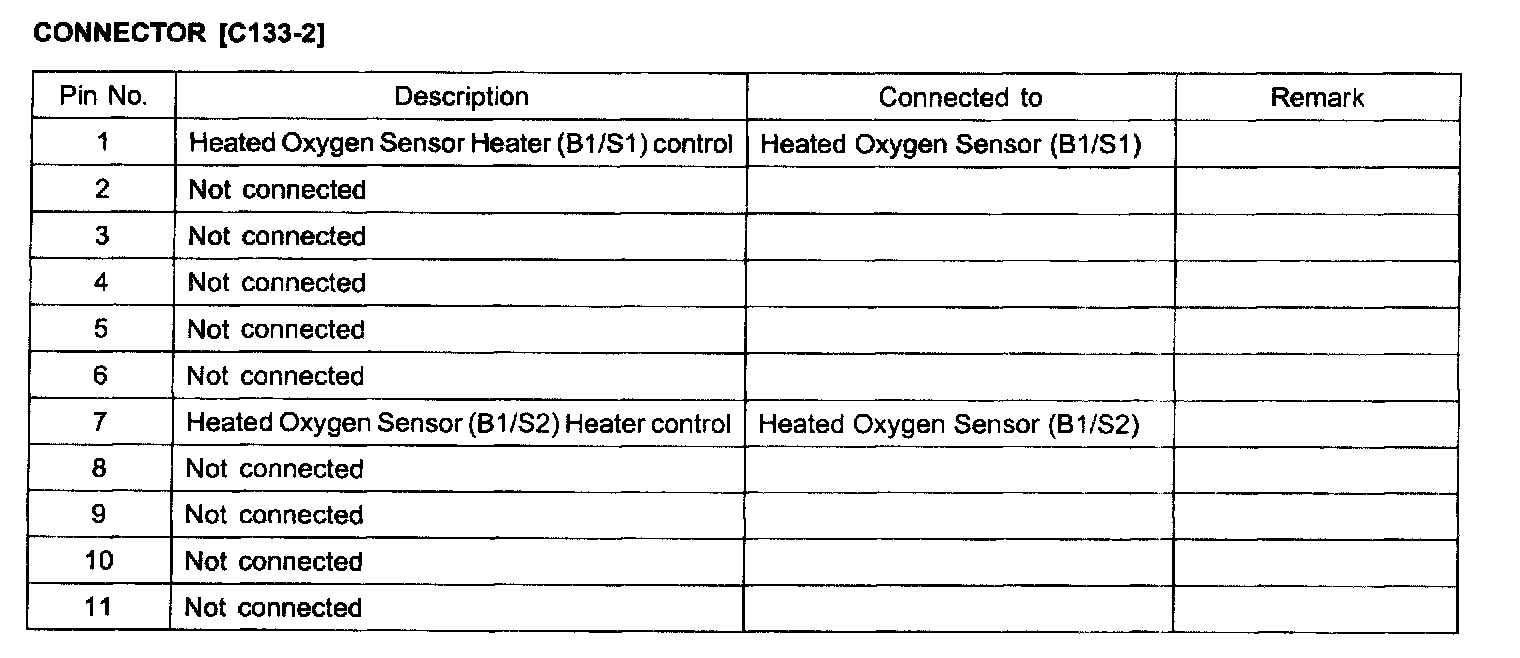

ECM Terminal Function Connector [C133-2] Part 1:

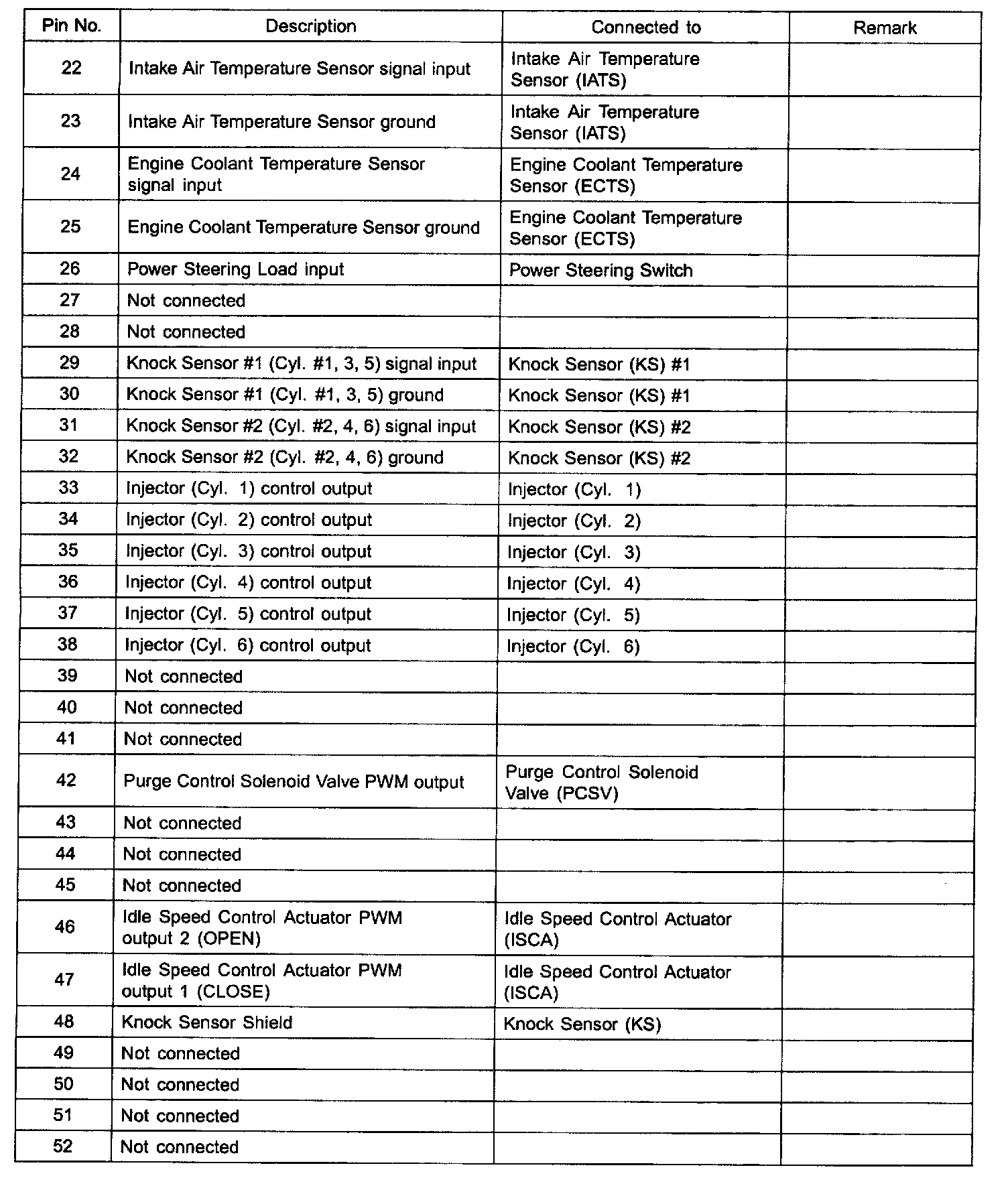

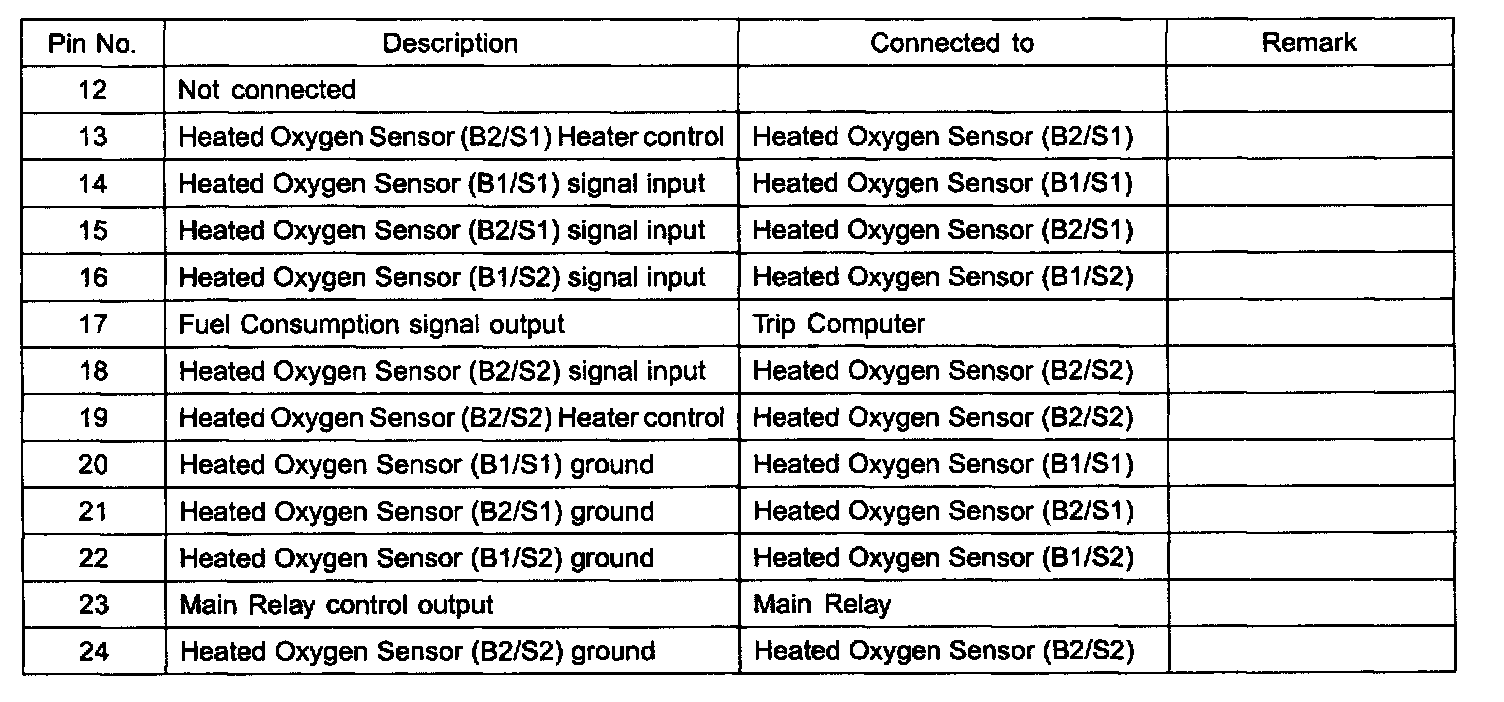

ECM Terminal Function Connector [C133-2] Part 2:

ECM Terminal Function Connector (C133 - 2)

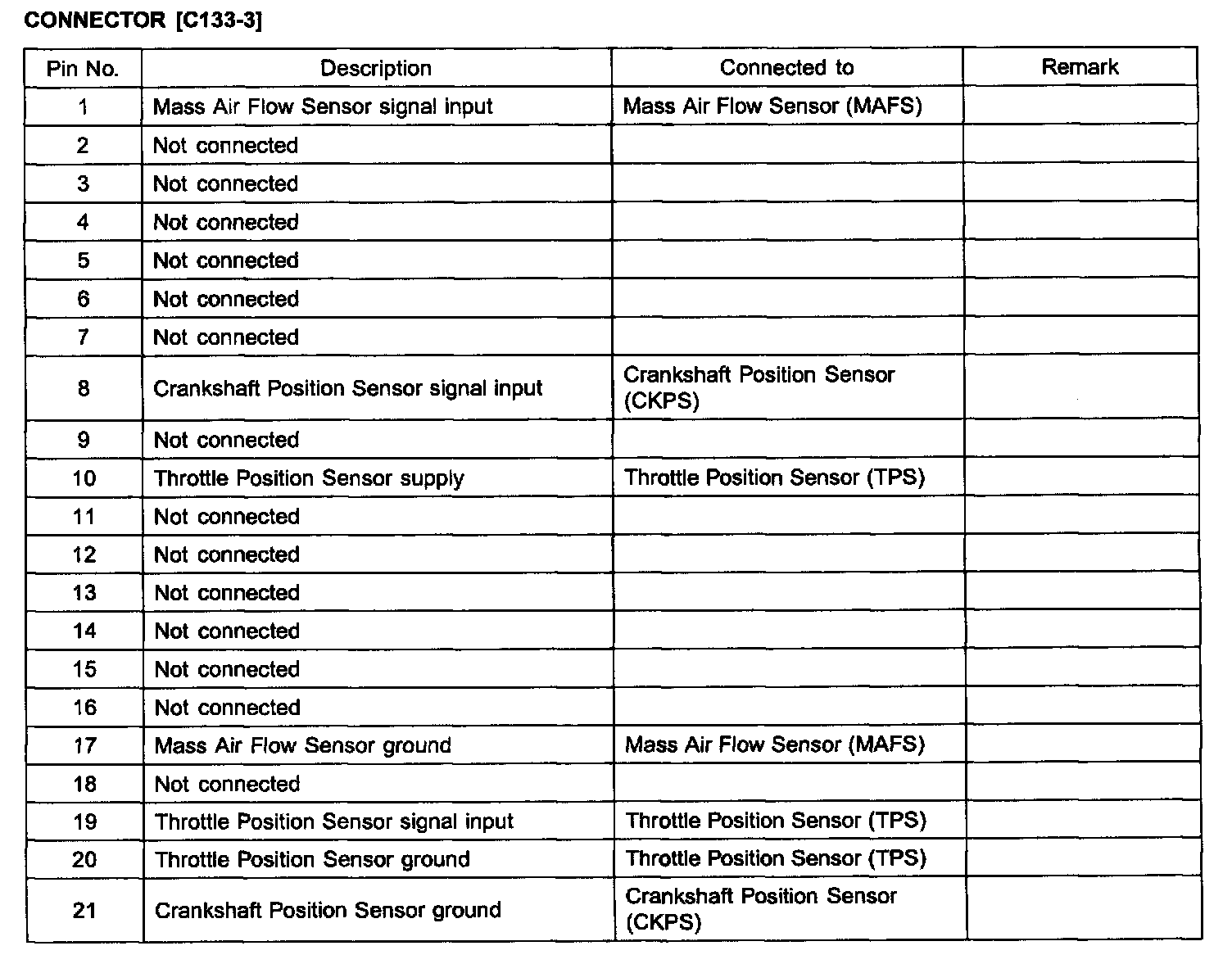

ECM Terminal Function Connector [C133-3] Part 1:

ECM Terminal Function Connector [C133-3] Part 2:

ECM Terminal Function Connector (C133 - 3)

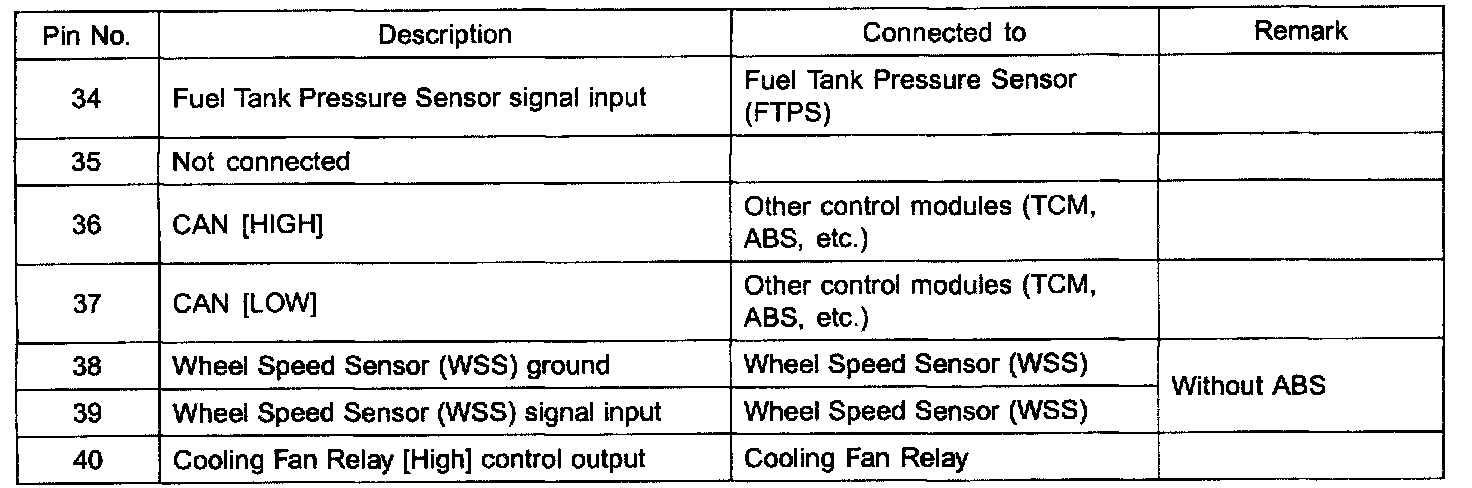

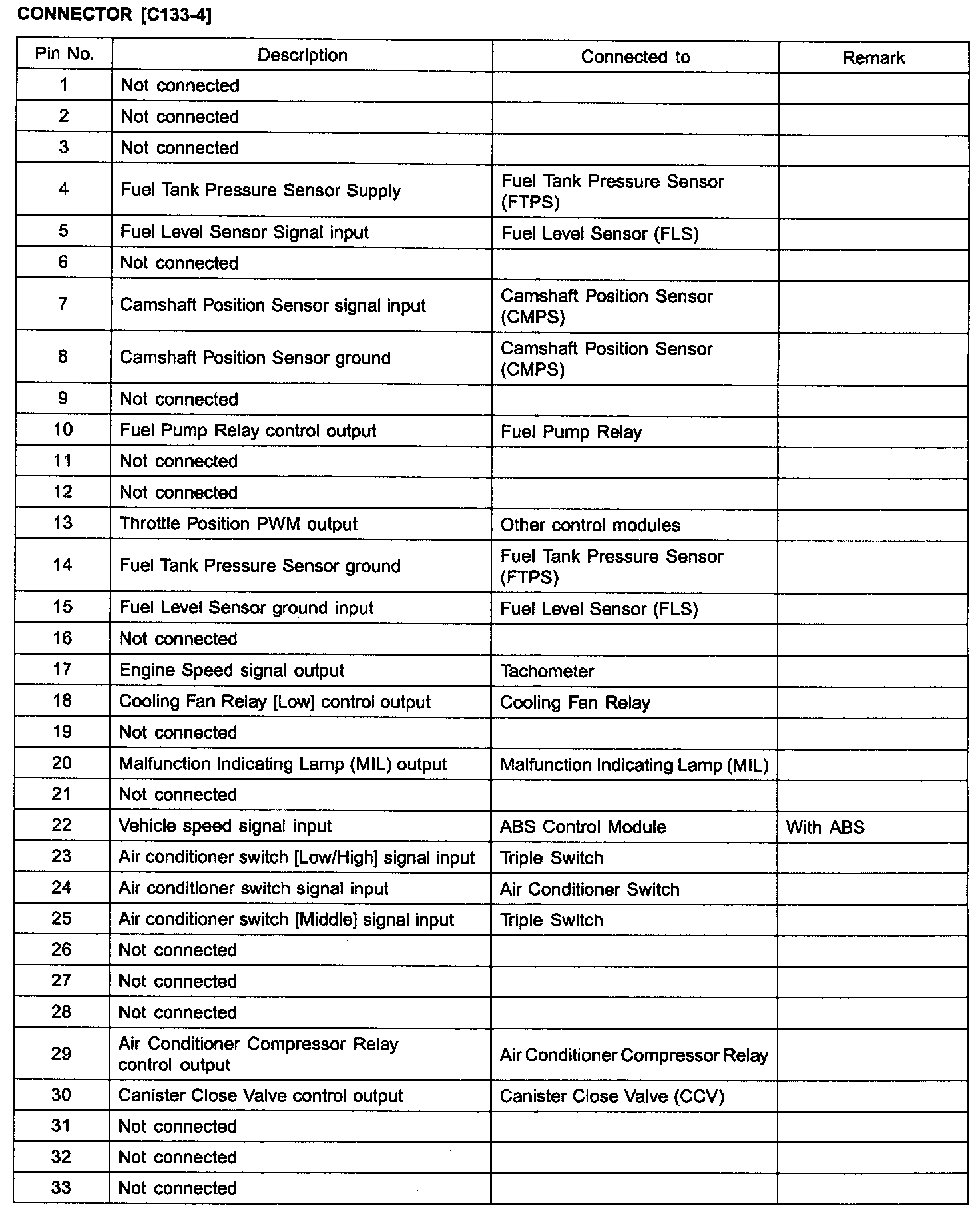

ECM Terminal Function Connector [C133-4] Part 1:

ECM Terminal Function Connector [C133-4] Part 2:

ECM Terminal Function Connector (C133 - 4)

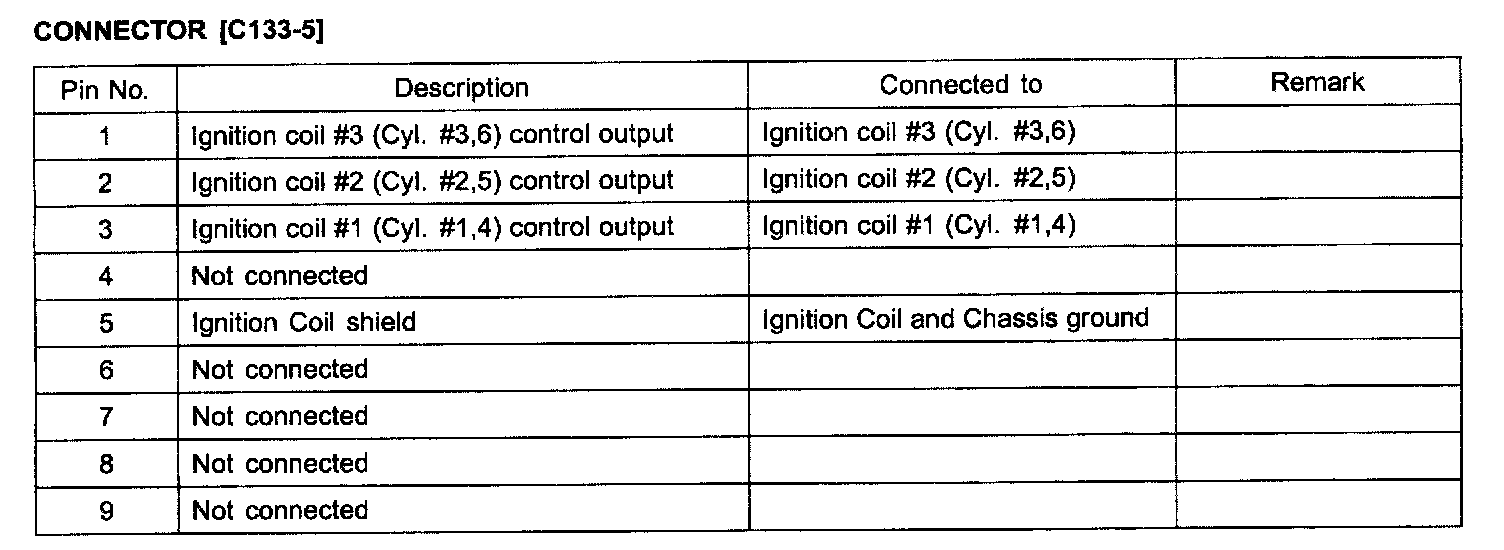

ECM Terminal Function Connector [C133-5]:

ECM Terminal Function Connector (C133 - 5)

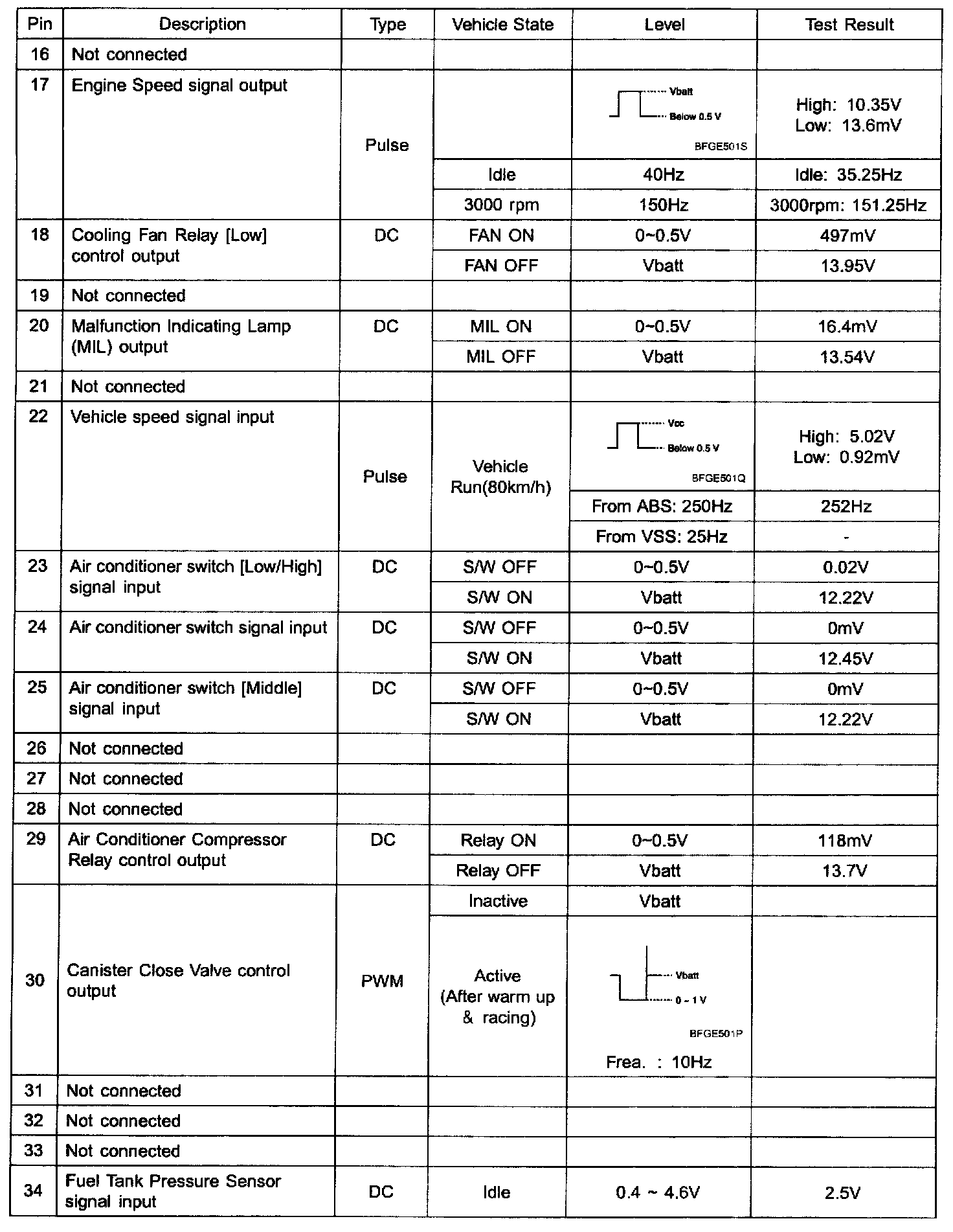

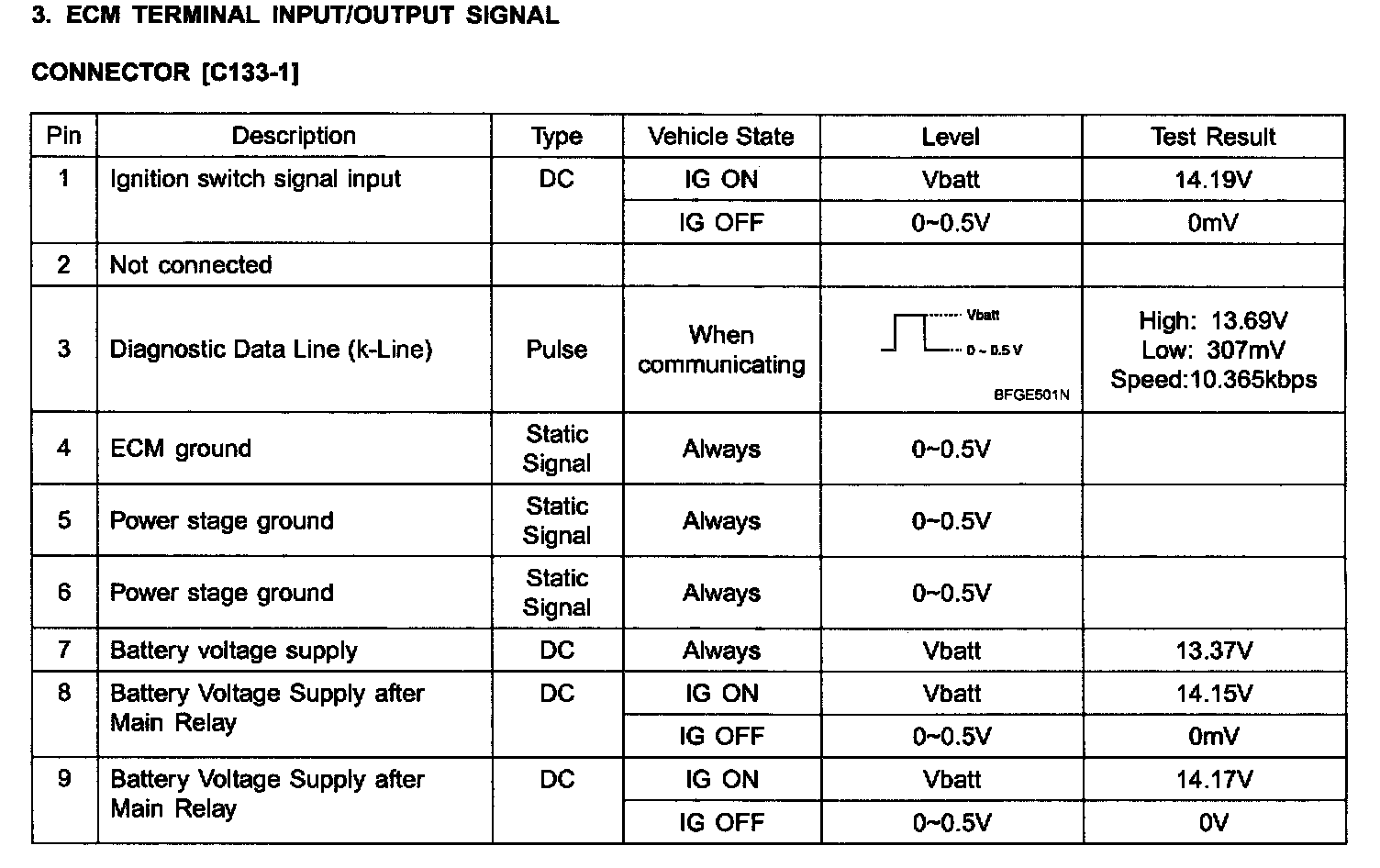

ECM Terminal Input/Output Signal Connector [C133-1]:

ECM Terminal Input/Output Signal Connector (C133 - 1)

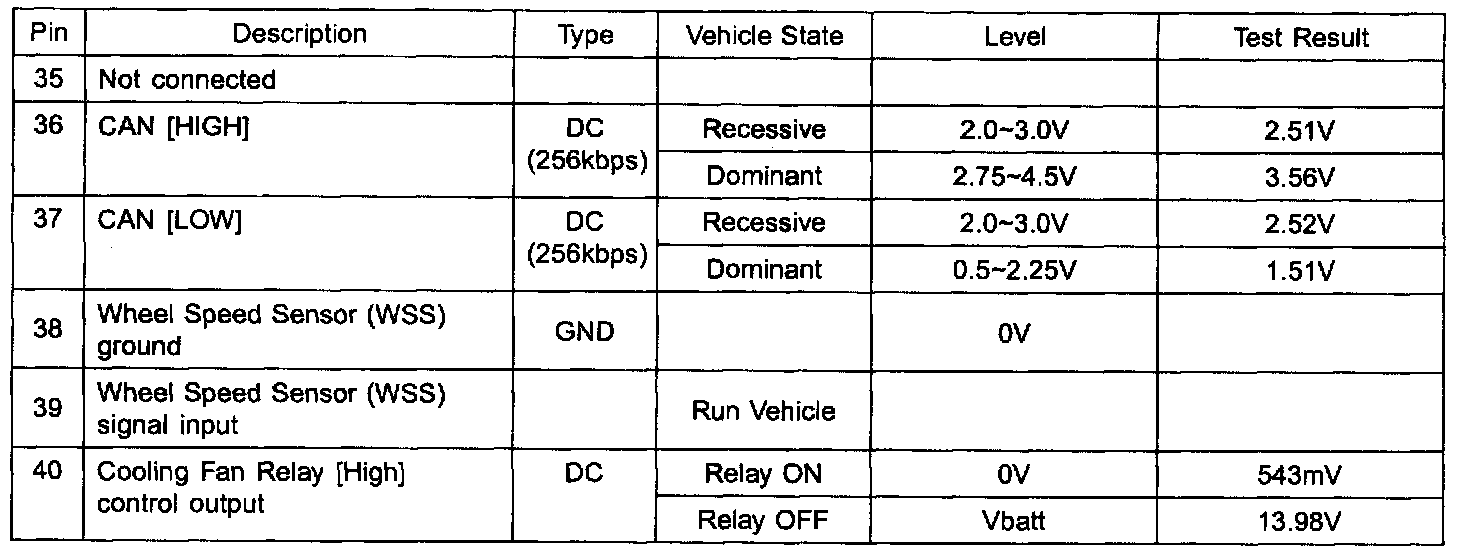

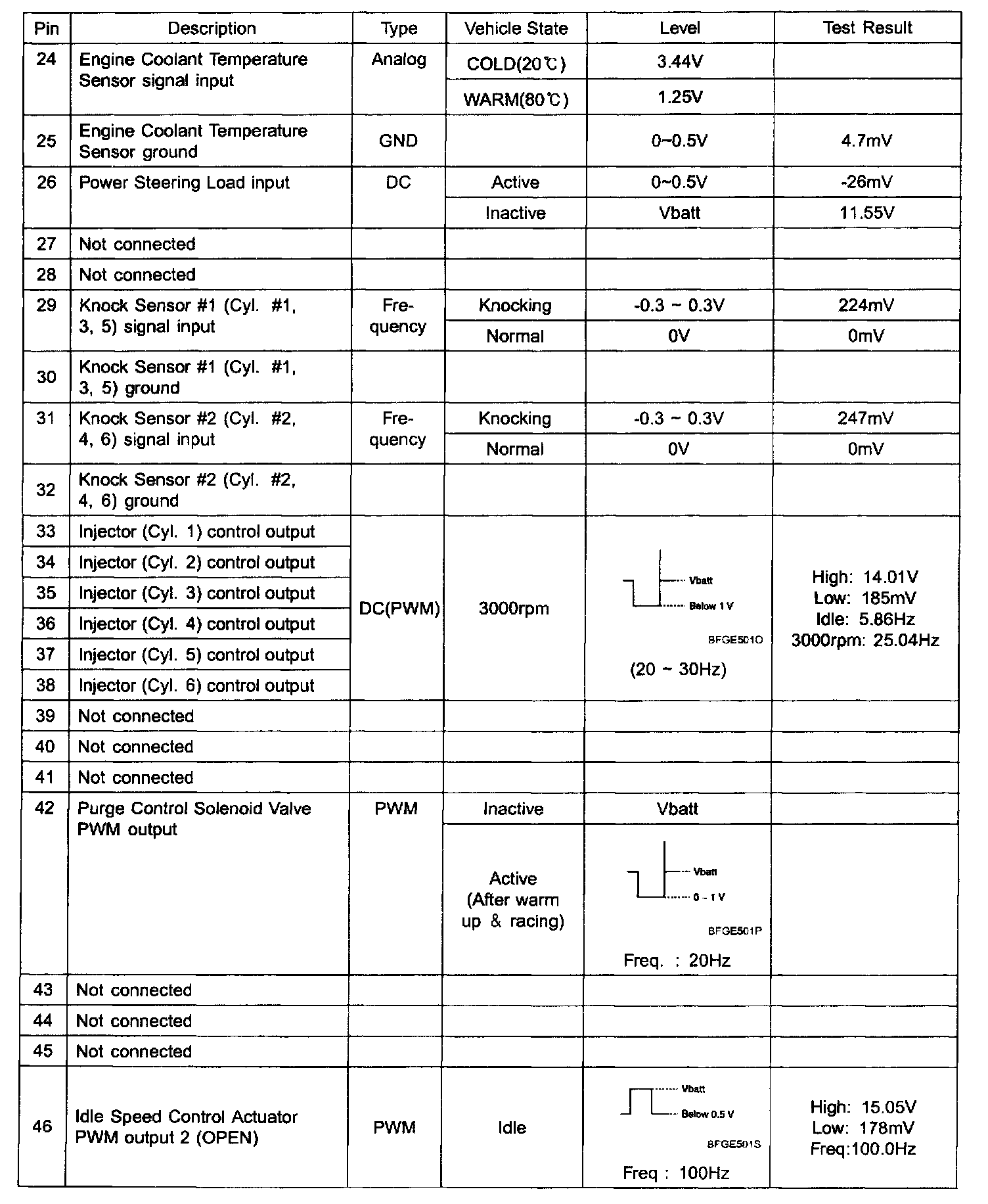

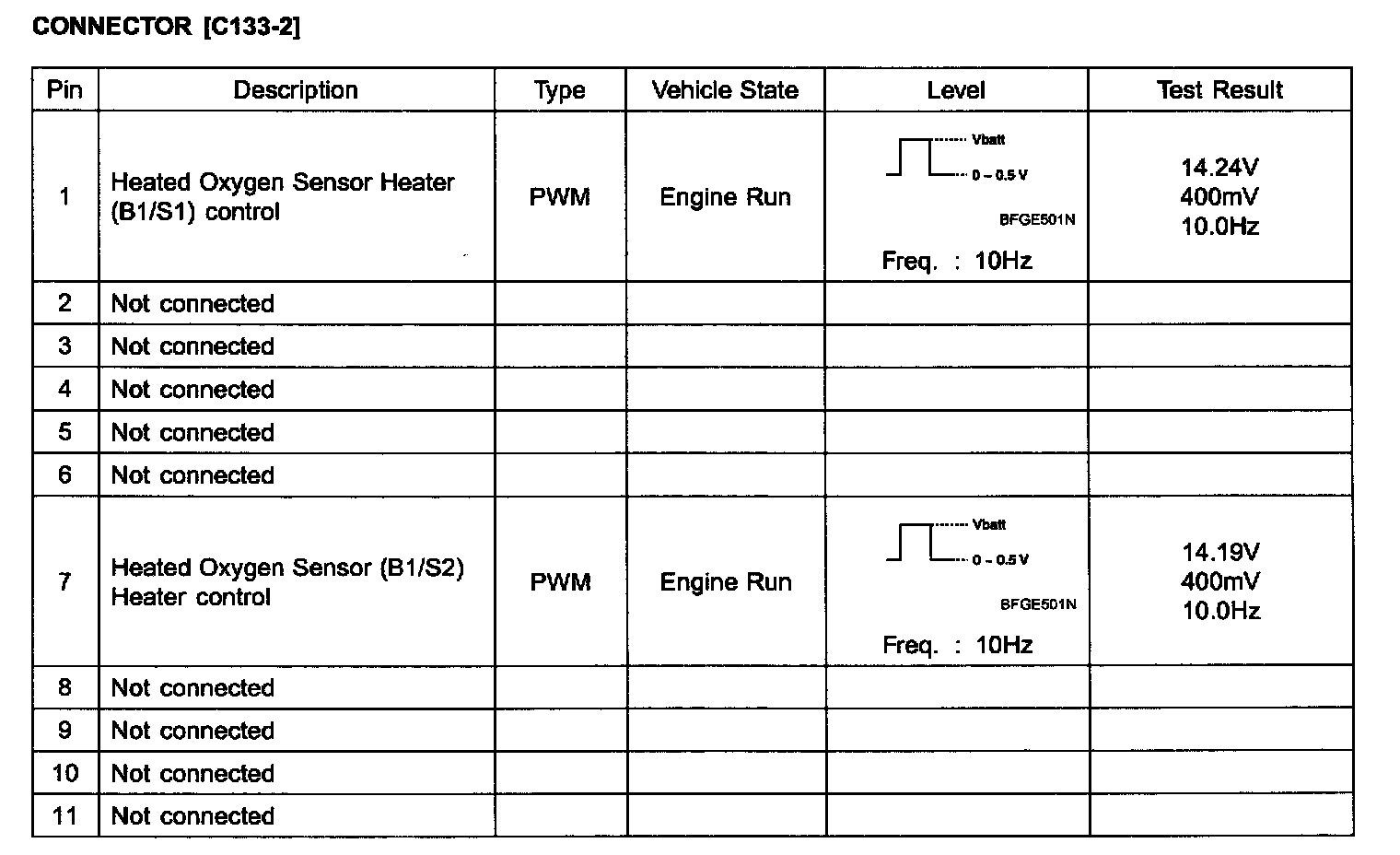

ECM Terminal Input/Output Signal Connector [C133-2] Part 1:

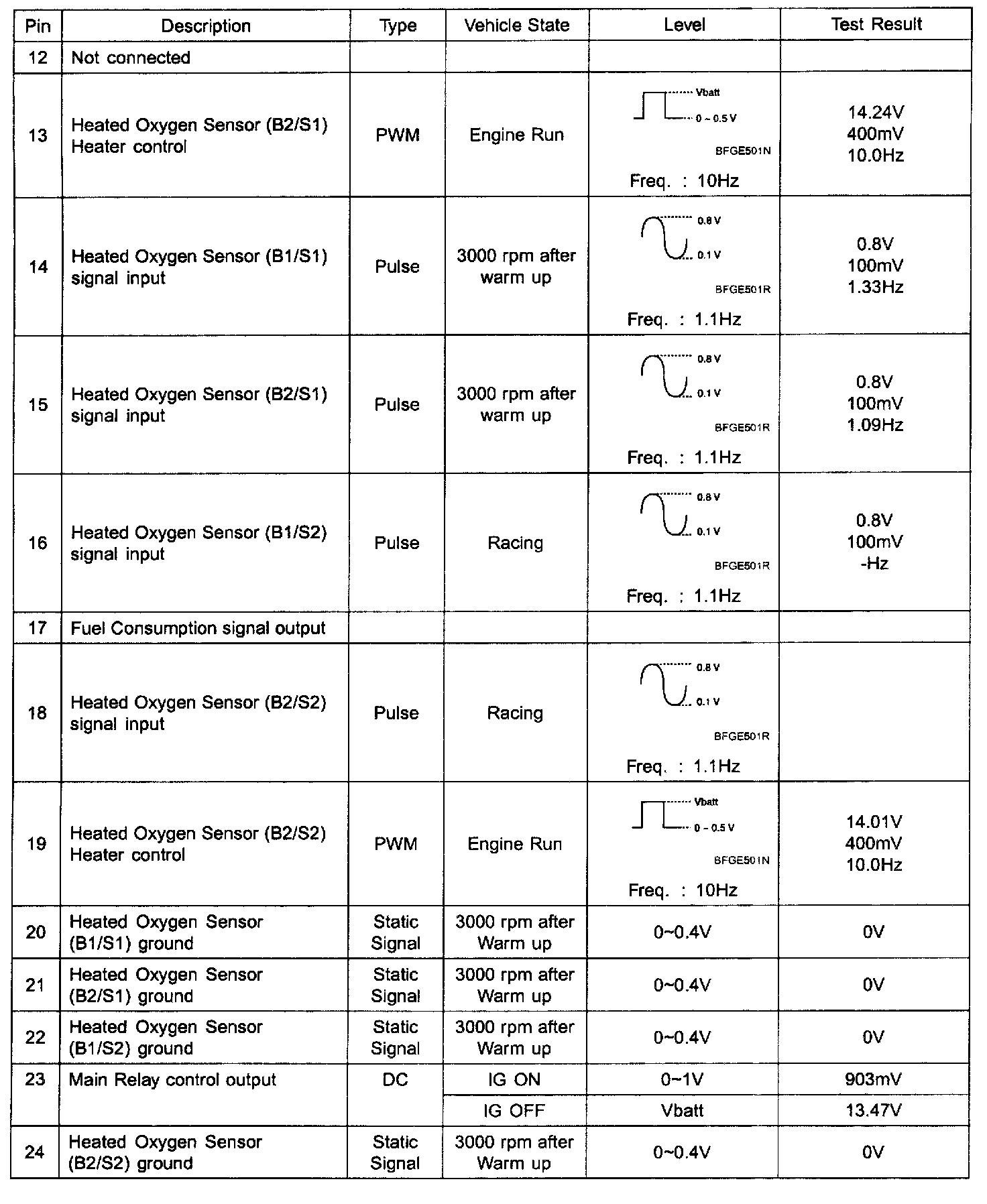

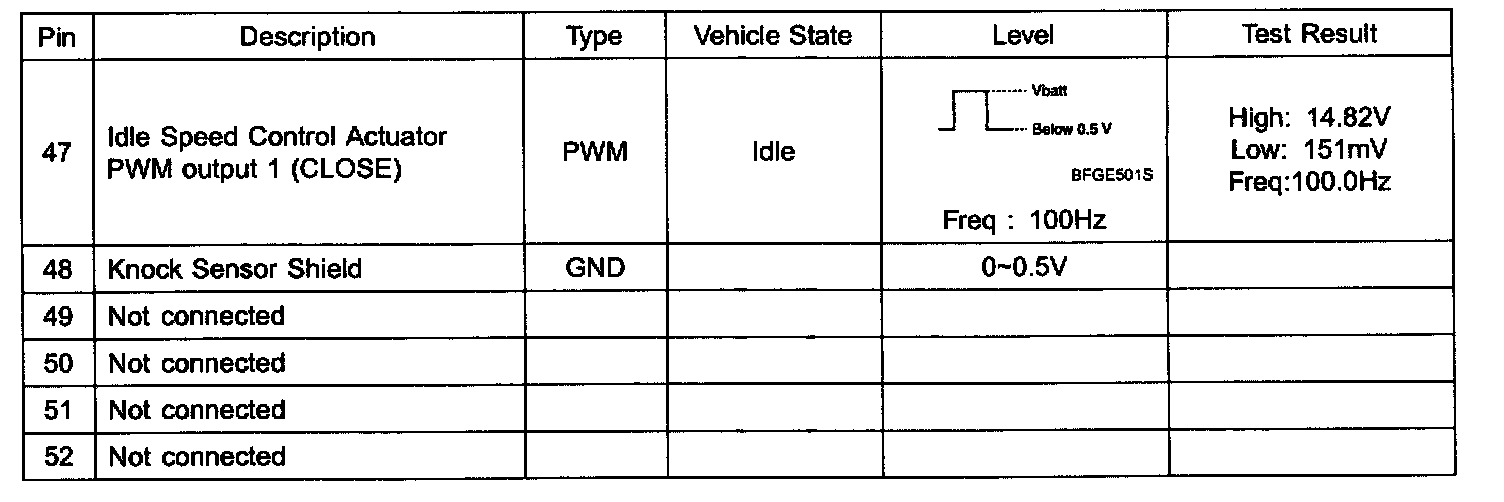

ECM Terminal Input/Output Signal Connector [C133-2] Part 2:

ECM Terminal Input/Output Signal Connector (C133 - 2)

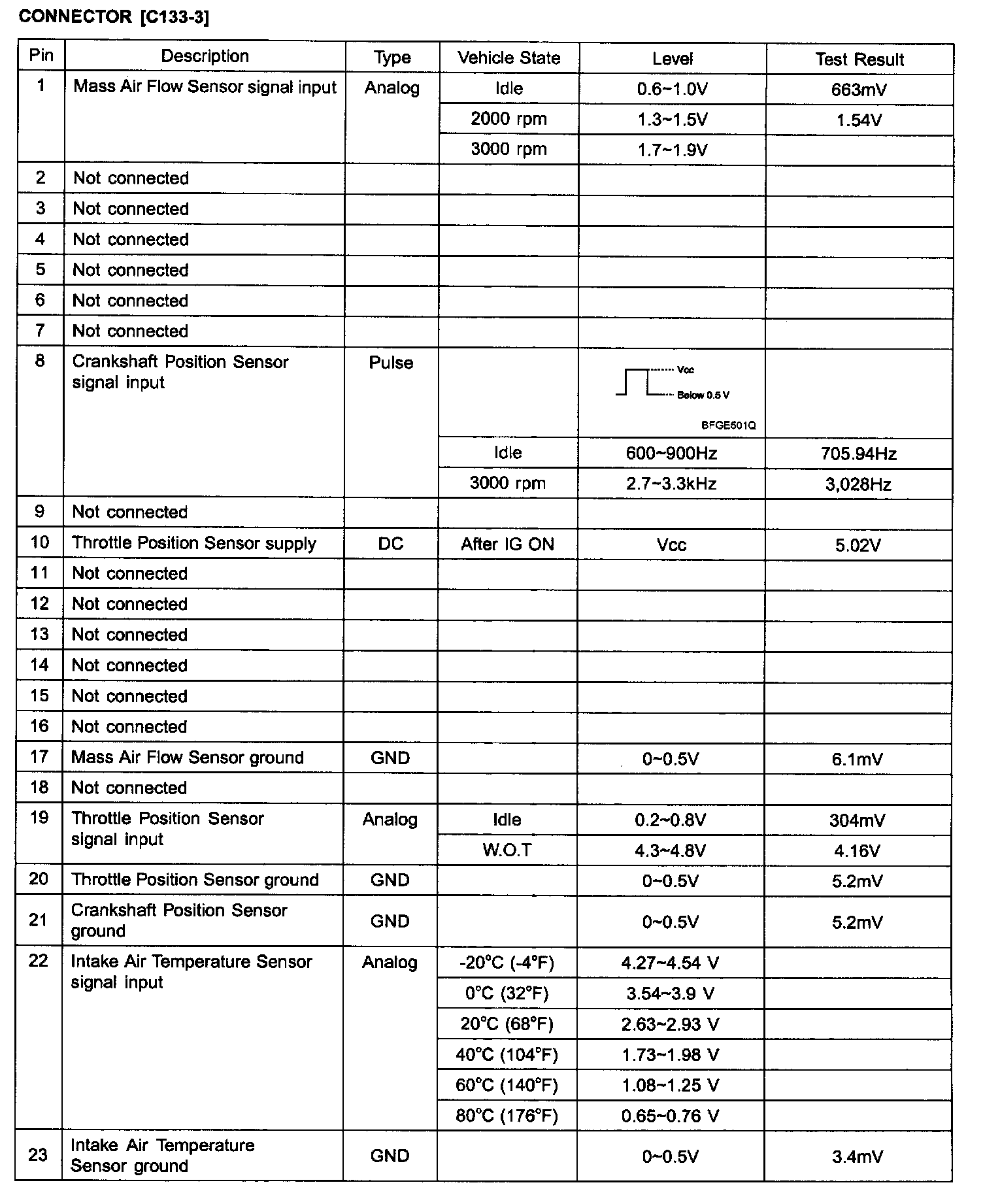

ECM Terminal Input/Output Signal Connector [C133-3] Part 1:

ECM Terminal Input/Output Signal Connector [C133-3] Part 2:

ECM Terminal Input/Output Signal Connector [C133-3] Part 3:

ECM Terminal Input/Output Signal Connector (C133 - 3)

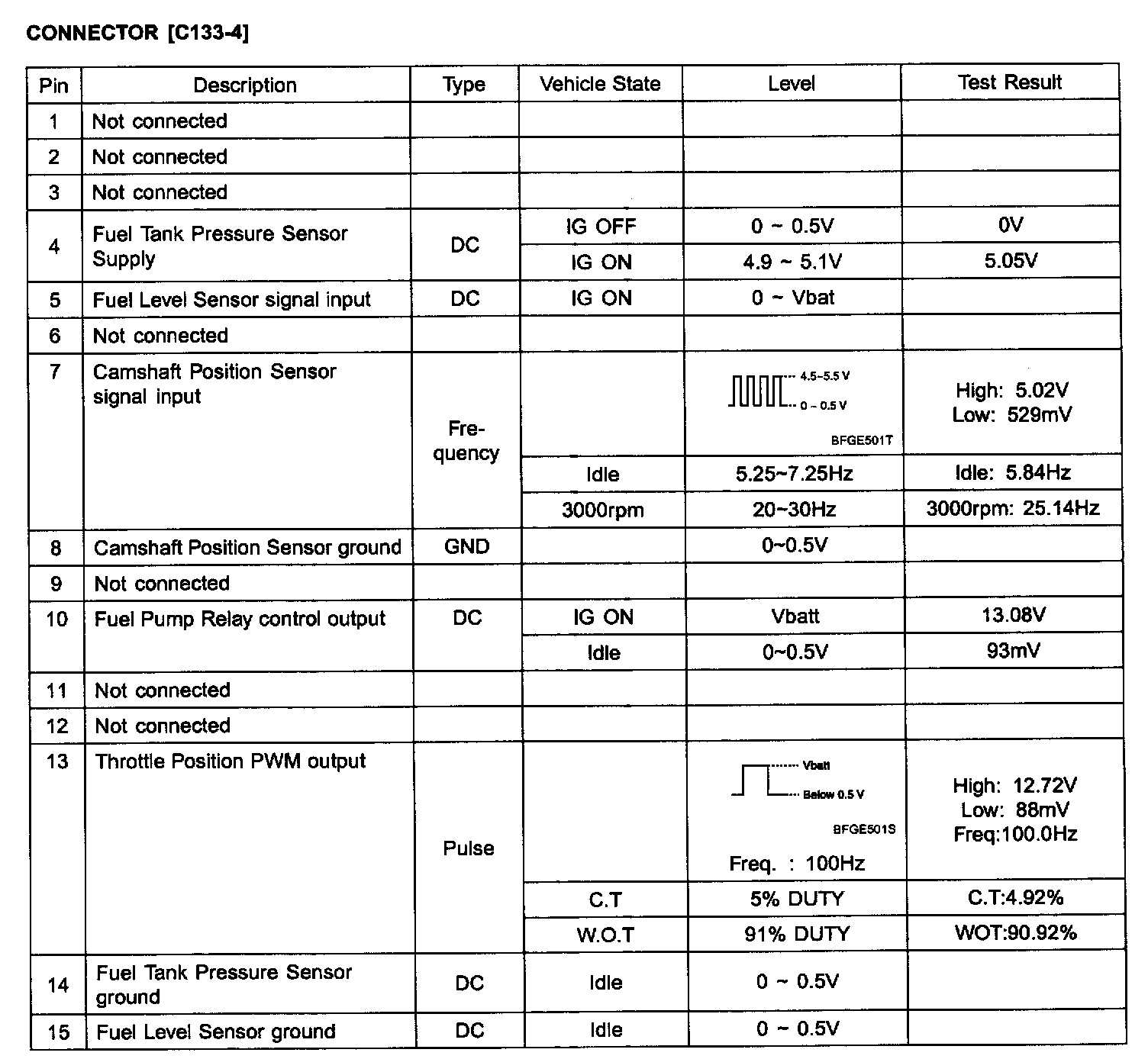

ECM Terminal Input/Output Signal Connector [C133-4] Part 1:

ECM Terminal Input/Output Signal Connector [C133-4] Part 2:

ECM Terminal Input/Output Signal Connector [C133-4] Part 3:

ECM Terminal Input/Output Signal Connector (C133 - 4)

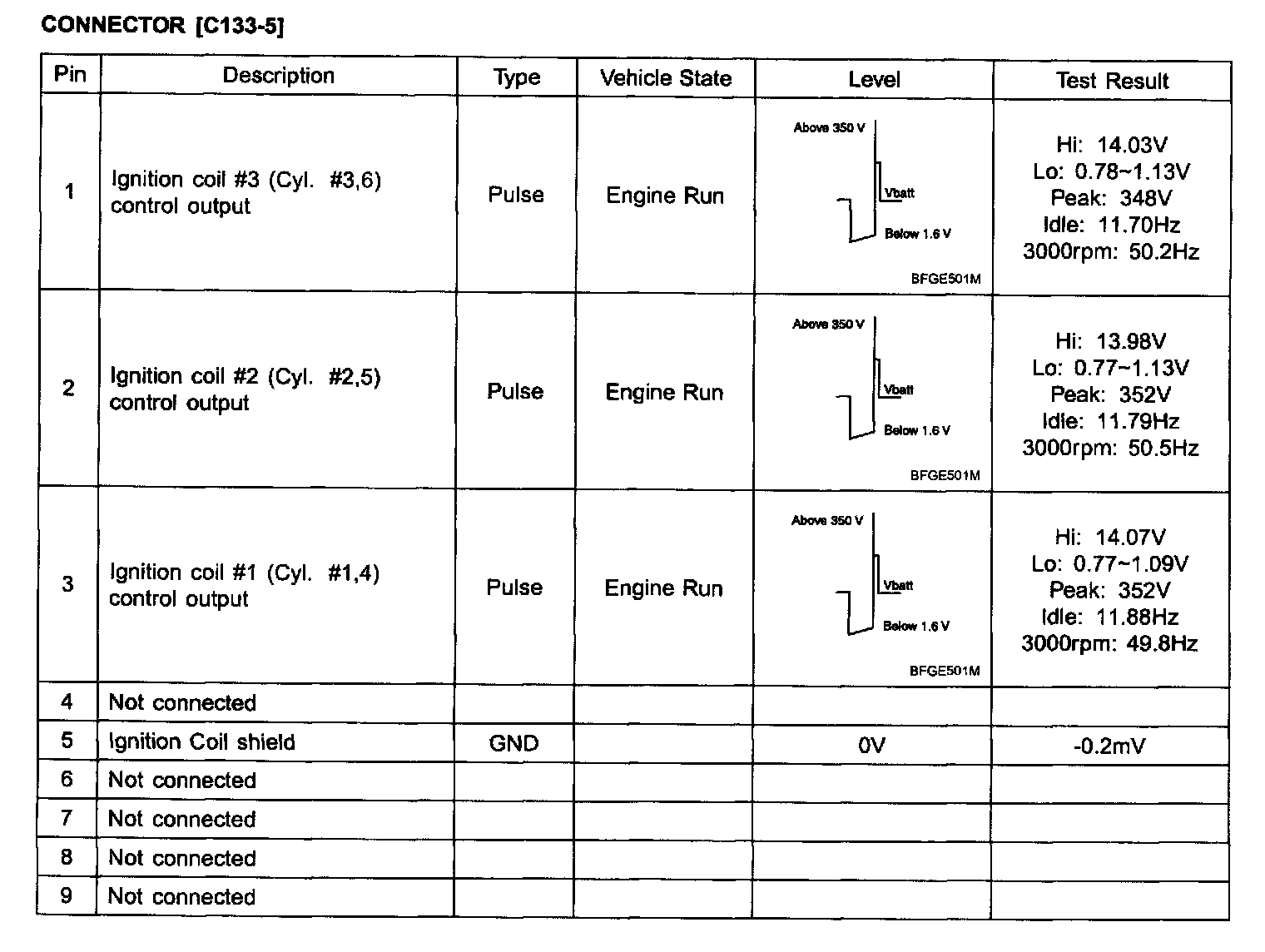

ECM Terminal Input/Output Signal Connector [C133-5]:

ECM Terminal Input/Output Signal Connector (C133 - 5)
