Hyundai
>>
2006
>>
Tucson GL, FWD, Automatic
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Fuel System (G4GC - GSL 2.0)
>>
DTC Troubleshooting Procedures
>>
DTC P0130 Ho2S Circuit (Bank 1/Sensor 1)
>>
Signal Waveform
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Signal Waveform

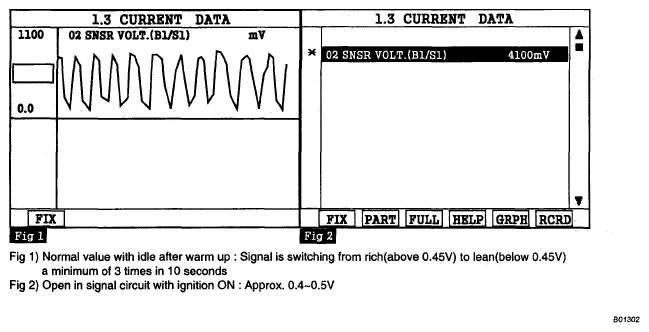

Fig 1: Scantool Display - O2 SNSR VOLT (B1/S1)
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
