Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between terminal 1 of the FTPS harness connector and chassis ground.
Specification: Approx. 0V

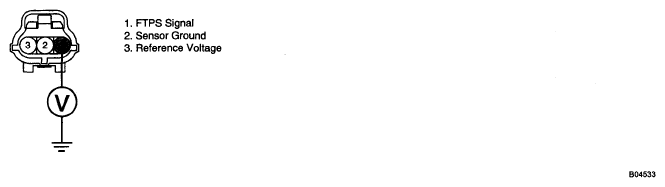

Fig 1: Measuring Voltage Between Terminal 1 Of FTPS Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR CO.
Is voltage within the specification?
YES : --> Go to next step as below.

NO : --> Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
