Sub Fuel Sender
SUB FUEL SENDERREMOVAL
1. Turn ignition switch to OFF" and disconnect the battery negative (-) terminal.
2. Remove the rear seat cushion flame hinge bolts. and then lift the cushion.

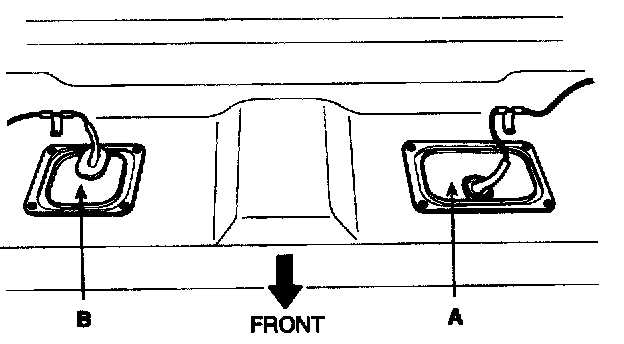

3. Remove the service cover (B) under the carpet.

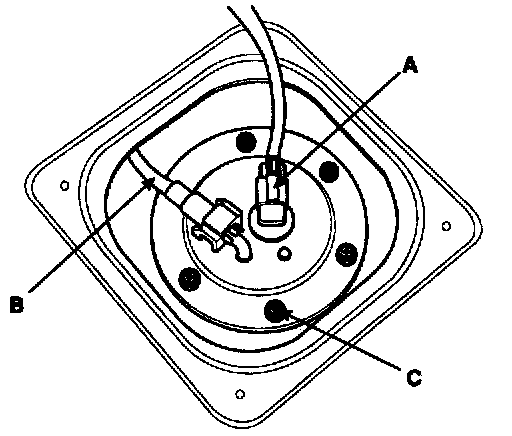

4. Disconnect the sub fuel sender wiring connector (A).
5. Disconnect the suction hose (B).
6. Remove the sub fuel sender plate mounting bolt (C).

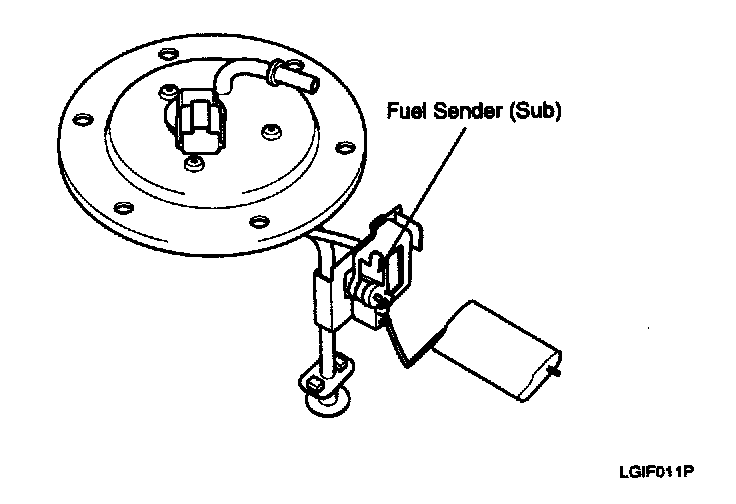

7. Remove the sub fuel sender assembly.
INSTALLATION
1. Install the sub fuel sender according to the reverse order of "REMOVAL" procedure.
