Crankcase Emission Control System: Components

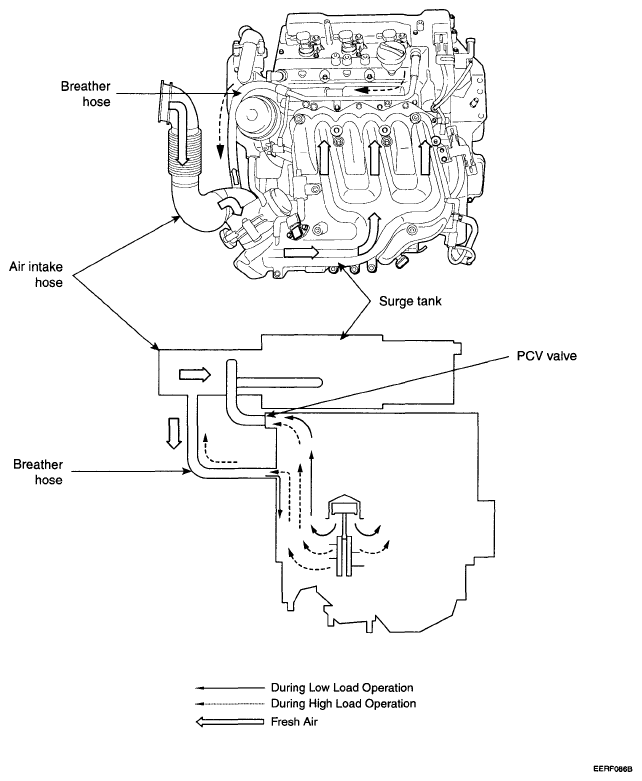

Fig 1: Identifying Crankcase Emission Control System Components
G04879782Courtesy of HYUNDAI MOTOR CO.
