Components Location

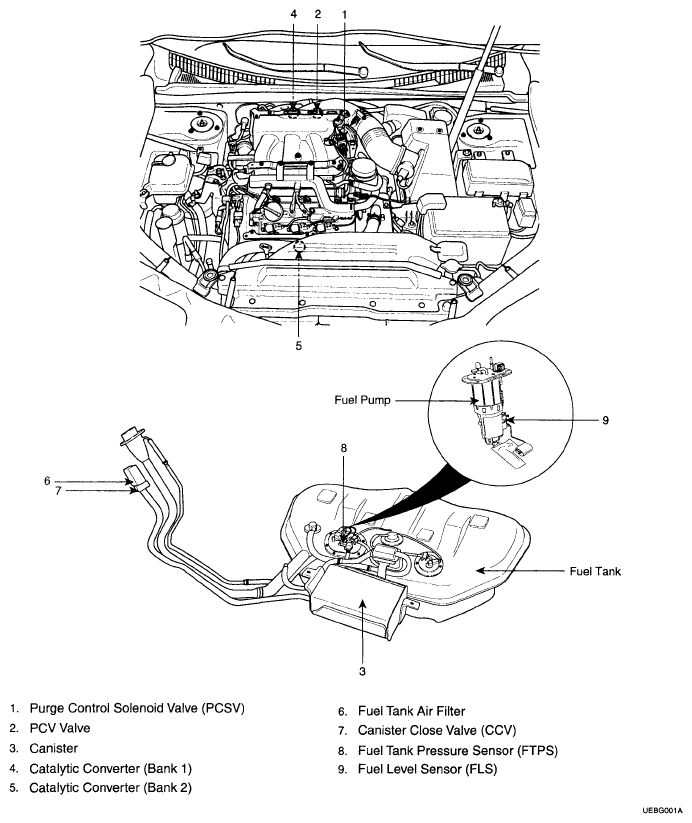

Fig 1: Identifying Emissions Control System Components Location (1 Of 2)
G04879779Courtesy of HYUNDAI MOTOR CO.

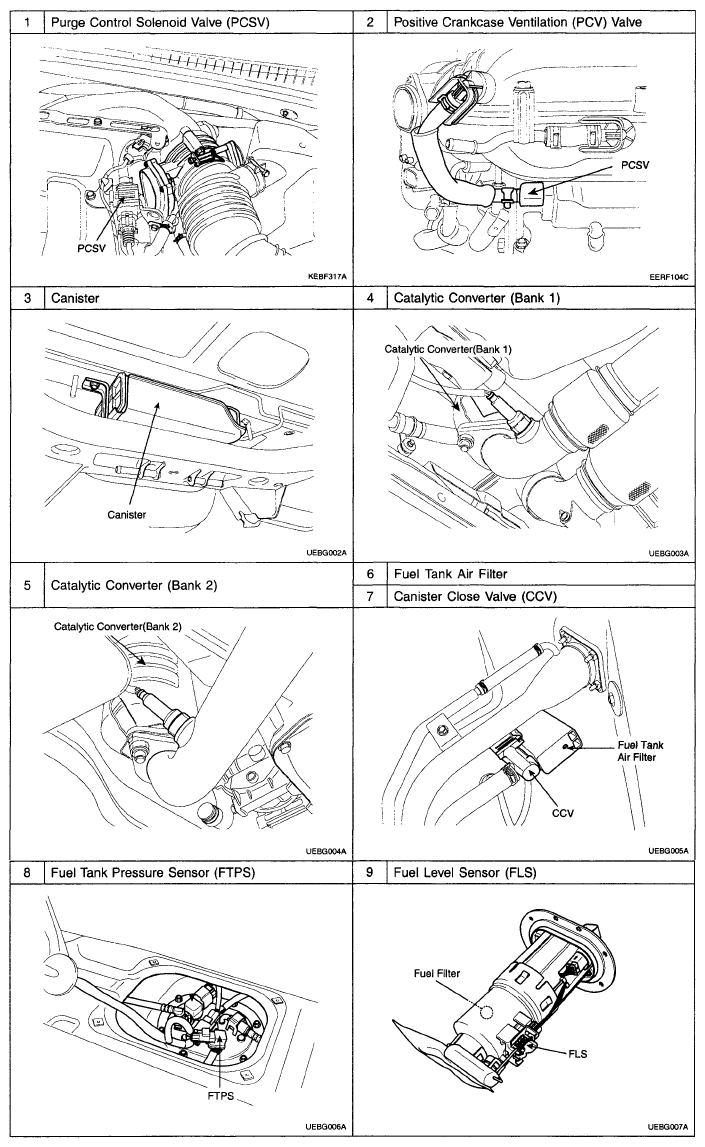

Fig 2: Identifying Emissions Control System Components Location (2 Of 2)
G04879780Courtesy of HYUNDAI MOTOR CO.
