Water Temperature Control Assembly

NOTE: Make clean the contact face before assembly.

Install water temperature control assembly (B) and new gasket (A).
Tightening torque

18.62 ~ 23.52 Nm (1.9 ~ 2.4 kgf.m, 13.74 ~ 17.36 lb-ft)

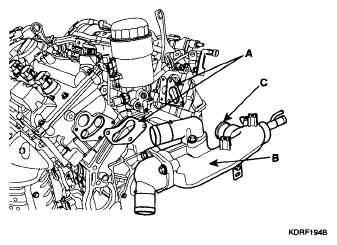

Fig 1: Identifying Water Temperature Control Assembly And Gasket
Courtesy of HYUNDAI MOTOR CO.

NOTE: Use new O-rings (C) when reassembling.
Connect water hoses to the water temperature control assembly.
Install wiring protector.
Connect WTS connector.
Connect radiator upper and lower hose (A).

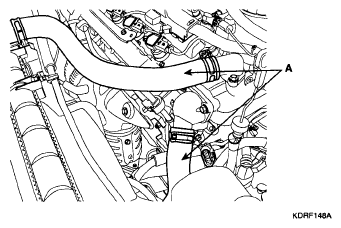

Fig 2: Identifying Upper Radiator Hose And Lower Radiator Hose
Courtesy of HYUNDAI MOTOR CO.
Install air cleaner assembly.
Fill with engine coolant.
Start engine and check for leaks.
Recheck engine coolant level.
