Water Temperature Control Assembly

  1. Drain the engine coolant.
  2. Remove air cleaner assembly. (Refer to REMOVAL  )
  3. Disconnect radiator upper and lower hose (A).
    Fig 1: Identifying Upper Radiator Hose And Lower Radiator Hose
    G04879442Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect WTS connector. (Refer to REMOVAL  )
  5. Disconnect heater hose, water vent hose and water hose from water temperature control assembly.
  6. Remove wiring protector.

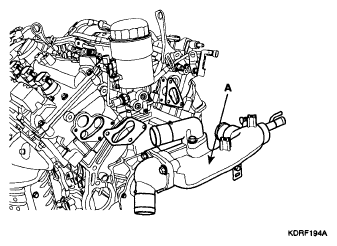

  7. Remove water temperature control assembly (A).
    Fig 2: Identifying Water Temperature Control Assembly
    G04879630Courtesy of HYUNDAI MOTOR CO.
