Cylinder Head Assembly: Components

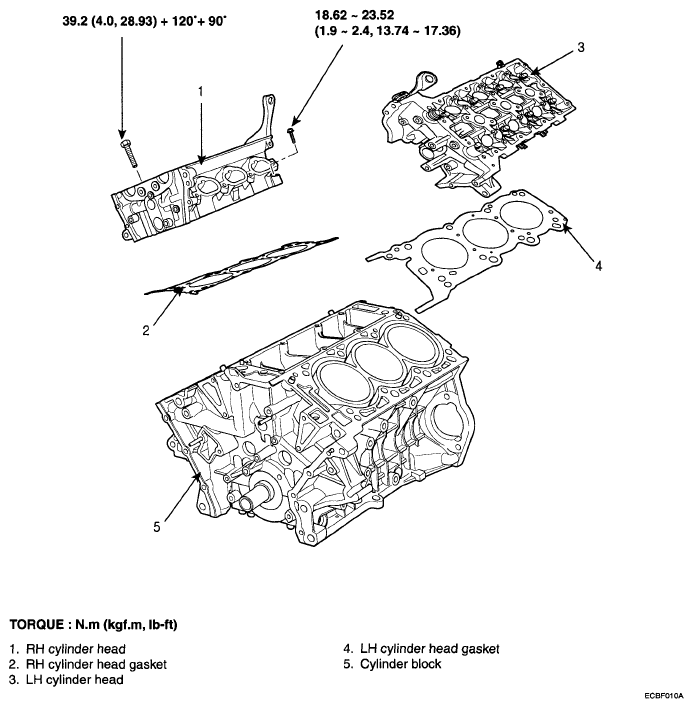

Fig 1: Exploded View Of Cylinder Head Assembly Components With Torque Specifications (1 Of 2)
G04879535Courtesy of HYUNDAI MOTOR CO.

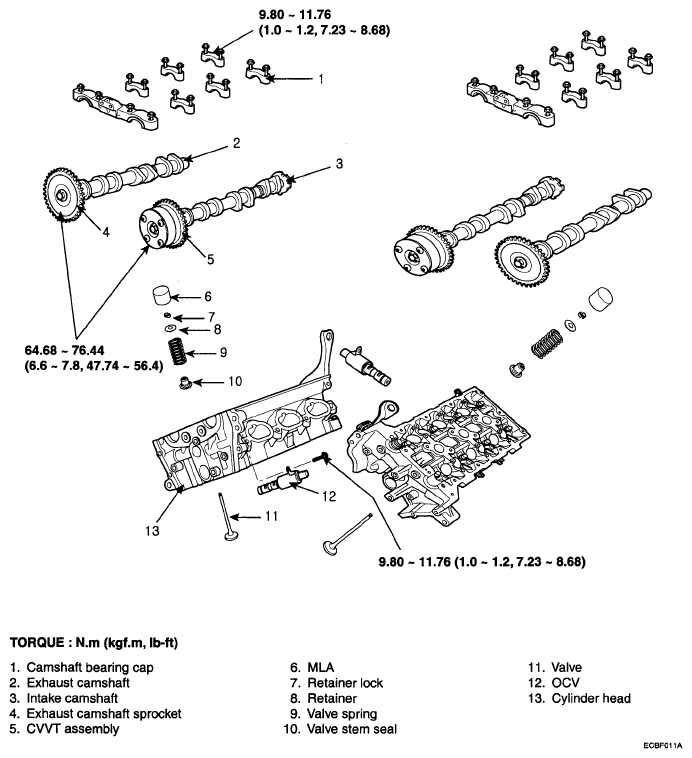

Fig 2: Exploded View Of Cylinder Head Assembly Components With Torque Specifications (2 Of 2)
G04879536Courtesy of HYUNDAI MOTOR CO.
