Engine Block: Reassembly

NOTE:
  • Thoroughly clean all parts to assembled.
  • Before installing the parts, apply fresh engine oil to all sliding and rotating surfaces.
  • Replace all gaskets, O-rings and oil seals with new parts.
  1. Assemble piston and connecting rod.
    1. Use a hydraulic press for installation.
    2. The piston front mark and the connecting rod front mark must face the timing belt side of the engine.
      Fig 1: Aligning Mark Piston And Connecting Rod
      G04879603Courtesy of HYUNDAI MOTOR CO.
  2. Install piston rings.
    1. Install the oil ring spacer and 2 side rails by hand.
    2. Using a piston ring expander, install the 2 compression rings with the code mark facing upward.
    3. Position the piston rings so that the ring ends are as shown.
      Fig 2: Identifying Piston Rings Position
      G04879604Courtesy of HYUNDAI MOTOR CO.
  3. Install connecting rod bearings.
    1. Align the bearing claw with the groove of the connecting rod or connecting rod cap.
    2. Install the bearings (A) in the connecting rod and connecting rod cap (B).
      Fig 3: Identifying Bearings And Connecting Rod Cap
      G04879605Courtesy of HYUNDAI MOTOR CO.
  4. Install main bearings.
    NOTE: Upper bearings have an oil groove of oil holes; Lower bearings do not.
    1. Align the bearing claw with the claw groove of the cylinder block, push in the 4 upper bearings (A).

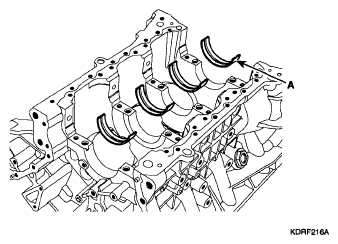

      Fig 4: Aligning Bearing Claw With Claw Groove Of Cylinder Block
      G04879606Courtesy of HYUNDAI MOTOR CO.
    2. Align the bearing claw with the claw groove of the main bearing cap, and push in the 4 lower bearings,
  5. Install thrust bearings.

    Install the 2 thrust bearings (A) under the No. 3 journal position of the cylinder block with the oil grooves facing outward.

    Fig 5: Identifying Thrust Bearings
    G04879607Courtesy of HYUNDAI MOTOR CO.
  6. Place crankshaft on the cylinder block.
    Fig 6: Identifying Crankshaft
    G04879583Courtesy of HYUNDAI MOTOR CO.
  7. Place main bearing caps on cylinder block.
  8. Install main bearing cap bolts.
    1. Install and uniformly tighten the bearing cap bolts, in several passes, in the sequence shown.

      Tightening torque

      Main bearing cap bolt

      49.00 Nm (5.0 kgf.m, 36.16 lb-ft) + 90° (1 ~ 8)

      19.60 Nm (2.0 kgf.m, 14.46 lb-ft)+ 120° (9 ~ 16)

      29.40 ~ 31.36 Nm (3.0 ~ 3.2 kgf.m, 21.70 ~ 23.14 lb-ft) (17 ~ 22)

      NOTE:
      • Always use new main bearing cap bolt.
      • If any of the bearing cap bolts in broken or deformed, replace it.
      Fig 7: Identifying Bearing Cap Bolts
      G04879609Courtesy of HYUNDAI MOTOR CO.

      Use SST (09221-4A000), install main bearing cap bolts.

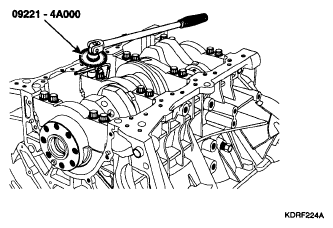

      Fig 8: Identifying Tightening Sequence Bearing Cap Bolts
      G04879610Courtesy of HYUNDAI MOTOR CO.
    2. Check that the crankshaft turns smoothly.
  9. Check crankshaft end play. (Refer to CRANKSHAFT JOURNAL MARK LOCATION  )
  10. Install piston and connecting rod assemblies.
    NOTE: Before installing the pistons, apply a coat of engine oil to the ring grooves and cylinder bores.
    1. Install the ring compressor, check that the bearing is securely in place, then position the piston in the cylinder, and tap it in using the wooden handle of a hammer.
    2. Stop after the ring compressor pops free, and check the connecting rod-to-check journal alignment before pushing the piston into place.
    3. Apply engine oil to the bolt threads. Install the rod caps with bearings, and torque the bolts.

      Tightening torque

      19.6 Nm (2.0 kgf.m, 14.46 lb-ft) + 90°

      Use SST (09221-4A000), install connecting rod bearing cap bolts.

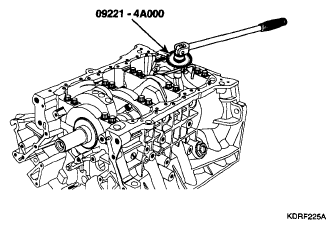

      Fig 9: Identifying Tightening Sequence Connecting Rod Bearing Cap Bolts
      G04879611Courtesy of HYUNDAI MOTOR CO.
      NOTE:
      • Always use new connecting rod bearing cap bolt.
      • Maintain downward force on the ring compressor to prevent the rings from expanding before entering the cylinder bore.
        Fig 10: Identifying Piston Installation Positions To Cylinder Bores
        G04801305Courtesy of HYUNDAI MOTOR CO.
  11. Check the connecting rod end play. (Refer to DISASSEMBLY  )
  12. Install oil drain cover.

    Tightening torque

    8.8 ~ 10.8 Nm (0.9 ~ 1.1 kgf.m, 6.5 ~ 8.0 lb-ft)

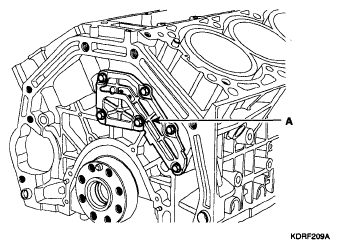

    Fig 11: Identifying Oil Drain Cover
    G04879582Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    • Make clean the sealing face before assembling two parts.
    • Remove harmful foreign matters on the sealing face before applying sealant
    • Be assembling oil drain cover, the liquid sealant TB1217H should be applied oil drain cover.
    • The part must be assembled within 5 minutes after sealant was applied.
    • Apply sealant to the inner threads of the bolt holes.
      Fig 12: Identifying Area Applying Sealant To Inner Threads Of Bolt Holes
      G04879614Courtesy of HYUNDAI MOTOR CO.
  13. Install rear oil seal case.

    Tightening torque

    9.80 ~ 11.76 Nm (1.0 ~ 1.2 kgf.m, 7.23 ~ 8.67 lb-ft)

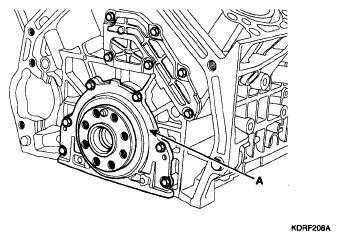

    Fig 13: Identifying Rear Oil Seal Case
    G04879581Courtesy of HYUNDAI MOTOR CO.
    NOTE:
    • Make clean the sealing face before assembling two parts.
    • Remove harmful foreign matters on the sealing face before applying sealant
    • Be assembling rear oil seal case, the liquid sealant TB1217H should be applied rear oil seal case.
    • The part must be assembled within 5 minutes after sealant was applied.
    • Apply sealant to the inner threads of the bolt holes.
      Fig 14: Applying Sealant To Inner Threads Of Bolt Holes
      G04879616Courtesy of HYUNDAI MOTOR CO.
  14. Using SST (09231-3C200, 09231-H1100), install rear oil seal.
    Fig 15: Identifying SST (09231-3C200, 09231-H1100) On Rear Oil Seal
    G04879617Courtesy of HYUNDAI MOTOR CO.
  15. Install baffle plate.

    Install and uniformly tighten the baffle plate bolts, in several passes, in the sequence shown.

    Tightening torque

    9.80 ~ 11.76 Nm (1.0 ~ 1.2 kgf.m, 7.23 ~ 8.68 lb-ft)

    Fig 16: Identifying Baffle Plate Bolts
    G04879618Courtesy of HYUNDAI MOTOR CO.
  16. Install upper oil pan.
    1. Using a gasket scraper, remove all the old packing material from the gasket surfaces.
    2. Before assembling the oil pan, the liquid sealant TB1217H should be applied on upper oil pan.

      The part must be assembled within 5 minutes after the sealant was applied.

      Bead width: 2.5mm (0.1in.)

      Fig 17: Identifying Area Applying Liquid Sealant To Upper Oil Pan
      G04879619Courtesy of HYUNDAI MOTOR CO.
      NOTE:
      • Make clean the sealing face before assembling two parts.
      • Remove harmful foreign matters on the sealing face before applying sealant
      • When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
      • To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
    1. e. Install upper oil pan.

      Uniformly tighten the bolts in several passes.

      Tightening torque

      9.80 ~ 11.76 Nm (1.0 ~ 1.2 kgf.m, 7.23 ~ 8.68 lb-ft)

      Fig 18: Identifying Upper Oil Pan
      G04879620Courtesy of HYUNDAI MOTOR CO.
  17. Install knock sensor.

    Tightening torque

    15.68 ~ 23.52 Nm (1.6 ~ 2.4 kgf.m, 11.57 ~ 17.36 lb-ft)

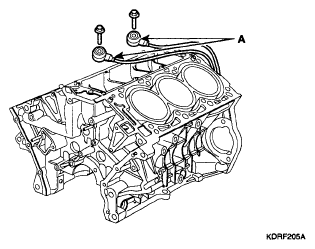

    Fig 19: Identifying Knock Sensor
    G04879578Courtesy of HYUNDAI MOTOR CO.
  18. Install drive plate.

    Tightening torque

    71.54 ~ 75.46 Nm (7.3 ~ 7.7 kgf.m, 52.80 ~ 55.69 lb-ft)
