Intake Manifold: Notes
COMPONENTS

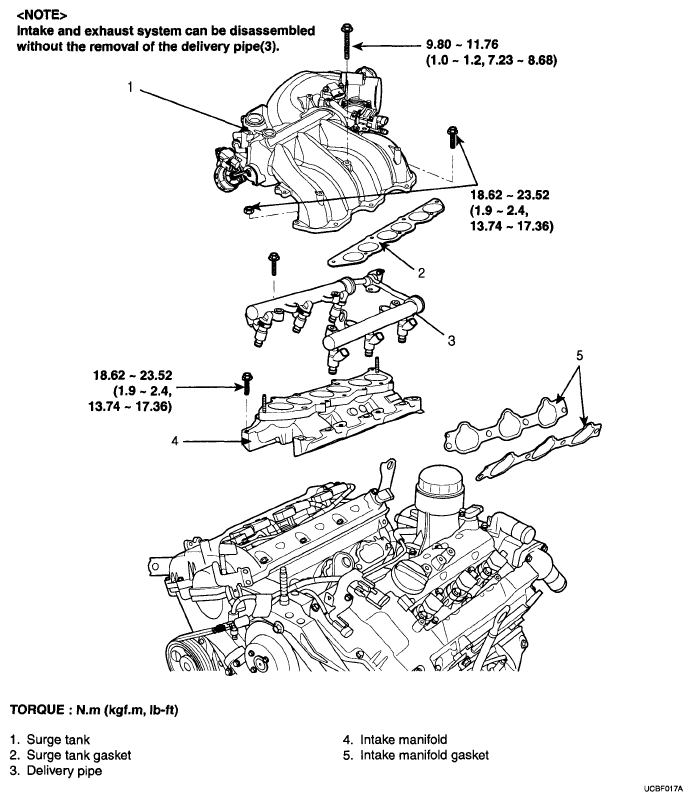

Fig 1: Intake System Replacement Components With Torque Specifications
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
