Courtesy Lamp: Testing and Inspection

ROOM LAMP




INSPECTION

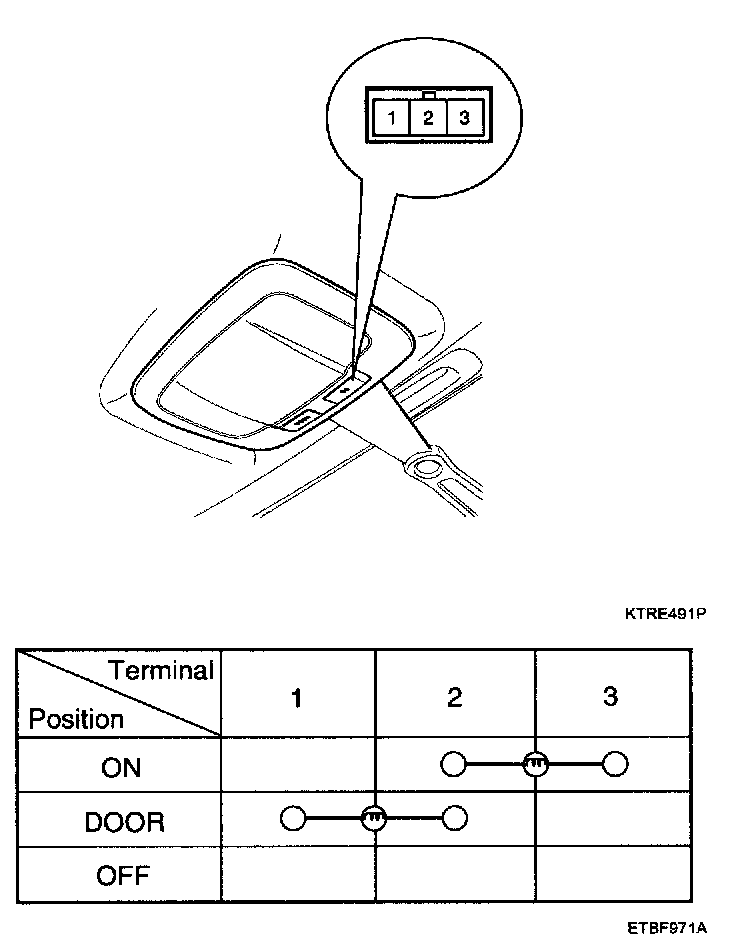

Remove the room lamp assembly then check for continuity between terminals.
